2020 Haas VF4SS
2020 Haas VF4SS
$159,500 (USD)
Location:Michigan
Description

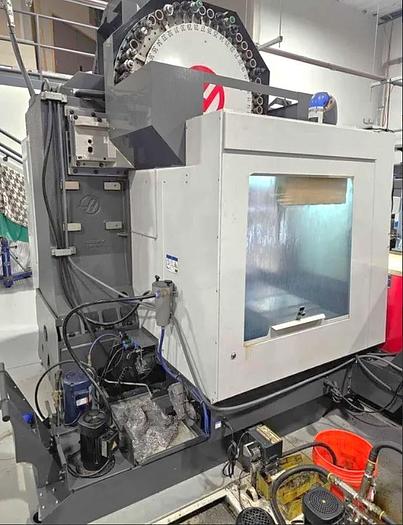

50+1 Position Side Mounted Tool Changer
Haas Wireless Intuitive Probing Package - Renishaw Tool & Part Probing
High Pressure Coolant Through the Spindle - 1000 PSI

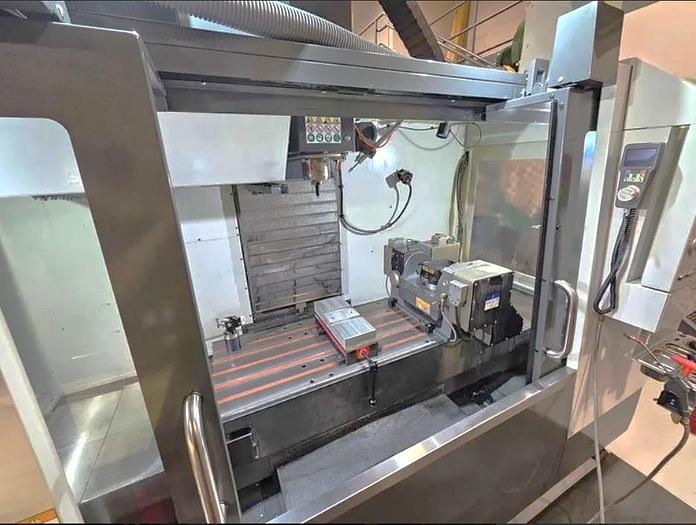

Haas TR-200Y Trunnion Style Rotary Table
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Quad Auger Conveyor Package
Belt Type Chip Conveyor
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Programmable Coolant Nozzle
Auto Air Gun
Through the Tool Air
Cool Mist Mist Condenser
Tool Center Point Control / Dynamic Work Offsets
Remote Jog Handle
32 GB Program Memory
WiFi Camera
95 Gallon Coolant Tank
Coolant Tank Oil Skimmer System
Rigid Tapping
Coolant Tank with Pump
Variable Flow Coolant Pump
Inline Direct Drive 12,000 RPM Spindle
WiFi Connection
USB Port Interface
RS 232C Port Interface for DNC Operation

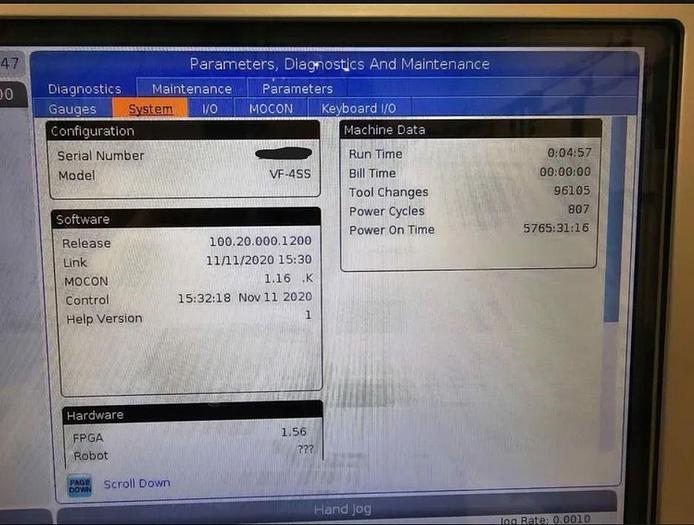

**Power On Hours ONLY 5,765 hours**
**Price New as equipped today at $199,370 with current discount on trunnion table**
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119508 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 50 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
