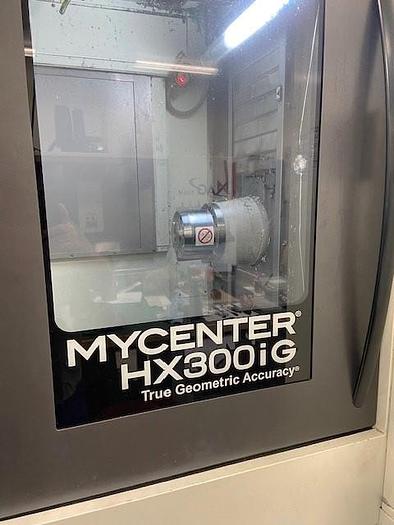

2017 Kitamura HX-300iG

No longer available

2017 Kitamura HX-300iG

Location:New Jersey

Description

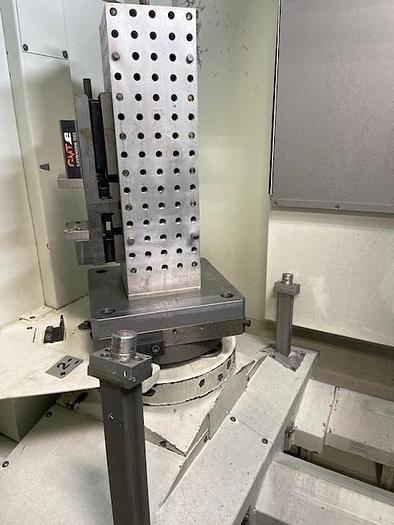

2 Pallet Changer System

4th Axis Rotary Table

Coolant Through the Spindle - 220 PSI

Renishaw OMP400 Part Probing

Laser Tool Management Tool Probing

Chip Conveyor

50 Position Tool Changer

15,000 RPM Spindle

Flood Coolant System

Helical Interpolation

RS-232C Interface

Machine is wired 200/220V 3 Phase

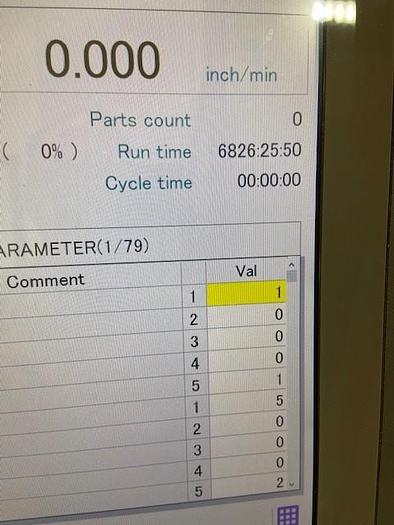

**ONLY 6,826 Run Time Hours**

Specifications

ManufacturerKitamura
ModelHX-300iG
Year2017
ConditionUsed
Stock Number119511
Machine ControlKitamura Arumatik Control
Pallet Size / Number of Pallets12" x 12" / 2 Pallets
Maximum Table Load550 lbs.
Maximum Workpiece Diameter / Height19.7" / 29.35"
Table Indexing.001 Degree Full 4th Axis Rotary Table
X-axis travel18.1"
Y-Axis Travel20.1"
Z-Axis Travel22"
Spindle Speed40 - 15,000 RPM
Spindle TaperBT # 40 Taper
Spindle Motor30 HP
TransmissionGeared
Tool Magazine Capacity50 Position ATC
Maximum Tool Diameter / Length / Weight3.55" / 11.8" / 22 lbs
Tool Change Time Tool to Tool1.3 seconds
Tool Change Time Chip to Chip2.5 seconds
Rapid traverse rates2362 IPM
Machine Dimensions LxWxH109" x 141" x 107"
Machine Weight20,020 lbs
