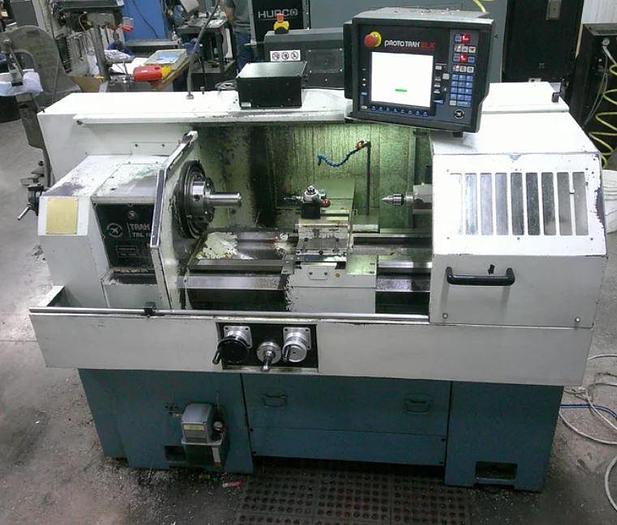

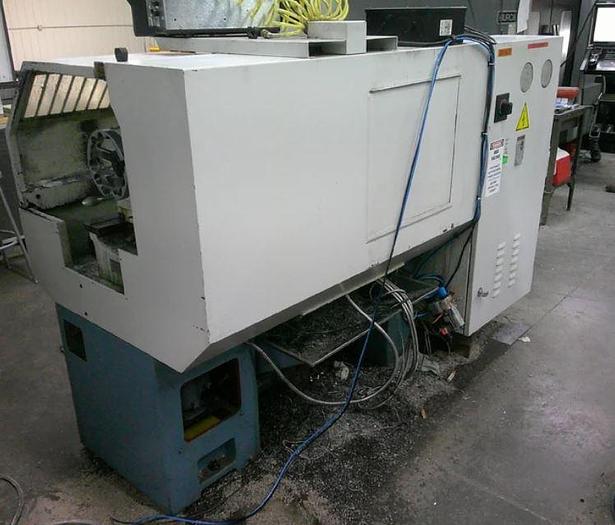

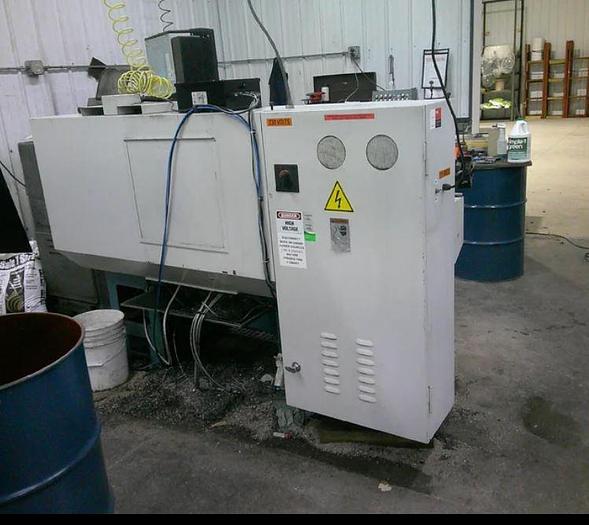

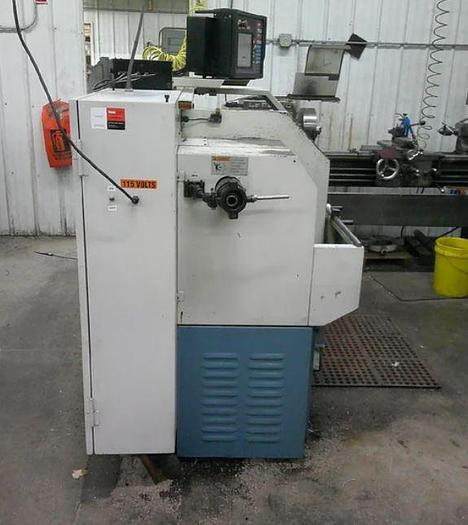

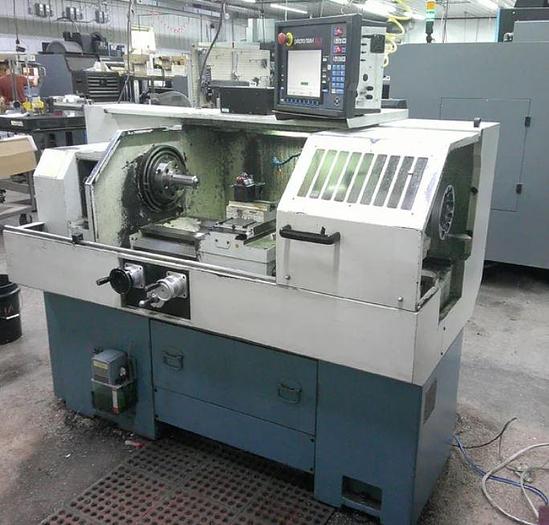

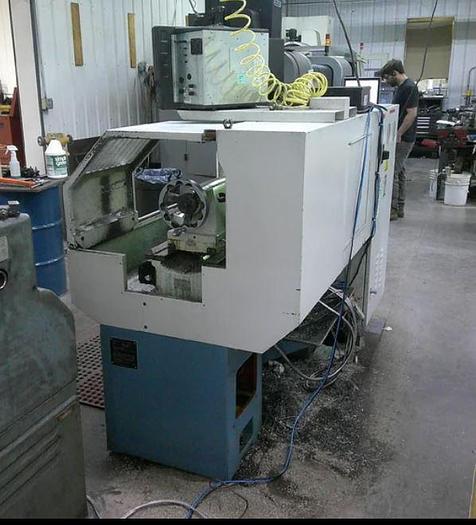

2016 Southwestern Industries Trak TRL 1630SX
2016 Southwestern Industries Trak TRL 1630SX
$29,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
8" 3-Jaw Chuck
Collet Closure Attachment
4 Way Quick Change Tool Post
Tailstock
Electronic Hand Wheels & Jogstick
Manual or CNC Operation
Coolant System with Tank & Pump

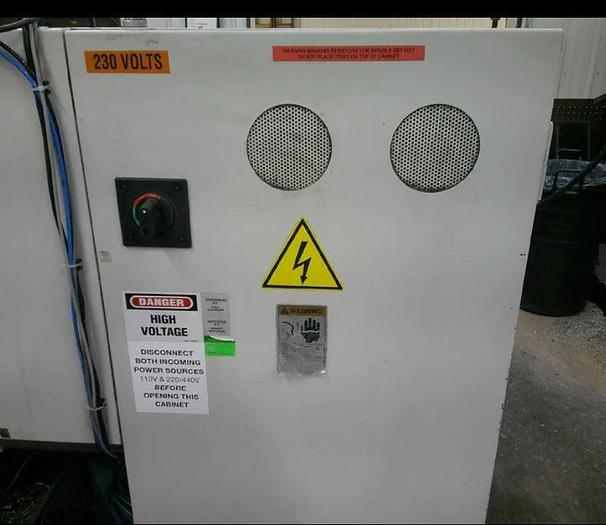

Wired 220V Electrics/3 Phase
USB Port Interface
Ethernet Interface
RS 232 Port Interface
Adjustable Saddle Gibs
Dovetail Ways on Cross Slide, V Ways on Saddle
Turcite Coated Ways
Hardened and Ground Bedways
Assorted Tool Holders
Specifications
| Manufacturer | Southwestern Industries Trak |
| Model | TRL 1630SX |
| Year | 2016 |
| Condition | Used |
| Stock Number | 119512 |
| Machine Control | ProtoTrak SLX Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing | 16" |
| Maximum Turning Diameter | 8.6" |
| Center distance | 30" |
| X-Axis Travel | 9.6" |
| Z-Axis Travel | 30" |
| Spindle Nose / Bore / Bar Capacity | D1-6" / 2.12" / 2.12" |
| Spindle Speed | 150 - 2,500 RPM |
| Spindle Motor | 7.5 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X / Z | 200 IPM / 400 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.36" / 5.75" / MT #4 |
| Machine Dimensions LxWxH | 87" x 45" x 67" |
| Machine Weight | 2,500 lbs. |
