2000 Okuma LB-45II-M/3000
![Used 2000 Okuma LB-45II-M/3000](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/3404f2fb1da9615e3364ff674aaf81df/large-used-2000-okuma-lb-45-ii-m-3000.jpg)
2000 Okuma LB-45II-M/3000
$99,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description

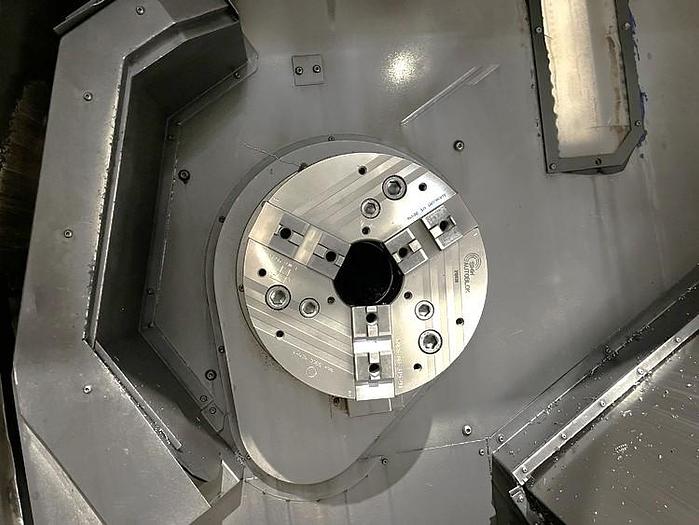

21" Samchully 3 Jaw Hydraulic Chuck w/ 6.5" Hole Through
Hydraulic Steady Rest
C Axis Spindle Rotation
Live Milling/Drilling Capability
Chip Conveyor
Programmable Tailstock
Tool Presetter
Rigid Tapping
Plane Conversion
Profile Generation
Thread Feed Hold
Turret Position Compensation
Tool Offset 96
NC Torque Limiter
Inch/Metric Capable
Animation
MAC MAN
LAP 4
Nose R 2B
User Task 2
EXP Auto Chamferring
Cycle Time Calc
Milling Axis Orientation
Tool Gauging System
Chuck Grasp Confirmation RS 232 Port Interface
All Available Manuals

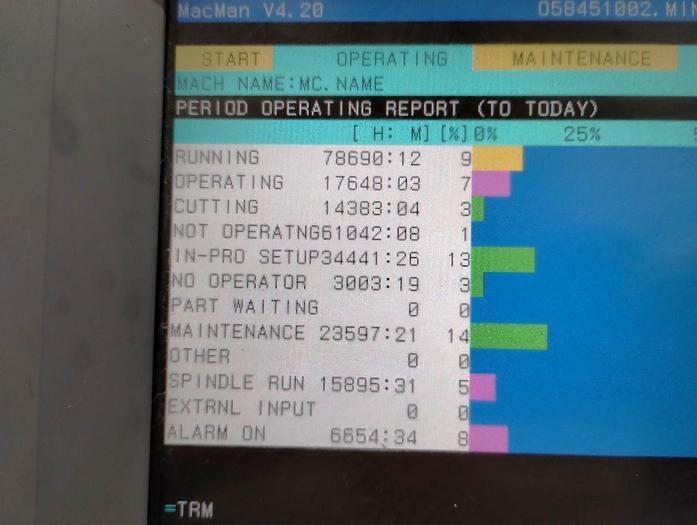

**Operating Hours 17,648**
**Cutting Hours 14,383**
**Spindle Run 15,895**
Specifications
Manufacturer | Okuma |
Model | LB-45II-M/3000 |
Year | 2000 |
Condition | Used |
Stock Number | 119513 |
Control | OSP-7000L |
Chuck Size | 21" Hydraulic Chuck |
Maximum Swing | 35.43" |
Maximum Cutting Diameter | 21.65" |
Maximum Machining Length | 118.11" |
X-axis travel | 17.32 |
Z-Axis Travel | 120.47" |
Spindle Nose / Bore / Bar Capacity | A2-11" / 5.212" / 4.5" |
Spindle Speed | 2,400 RPM 4-Speed Geared |
Spindle Motor | 50 HP |
Spindle Torque | 3,723 ft./lbs |
Number of Turret Positions | 12 Station VDI V12 Turret |
Rapid Traverse Rates X/Z | 591 IPM / 787 IPM |
Tailstock Quill Diameter / Stroke | 5.12" / 6.69" |
Tailstock Body Travel | 118" |
Machine Dimensions LxWxH | NA |
Machine Weight | 39,600 lbs |
