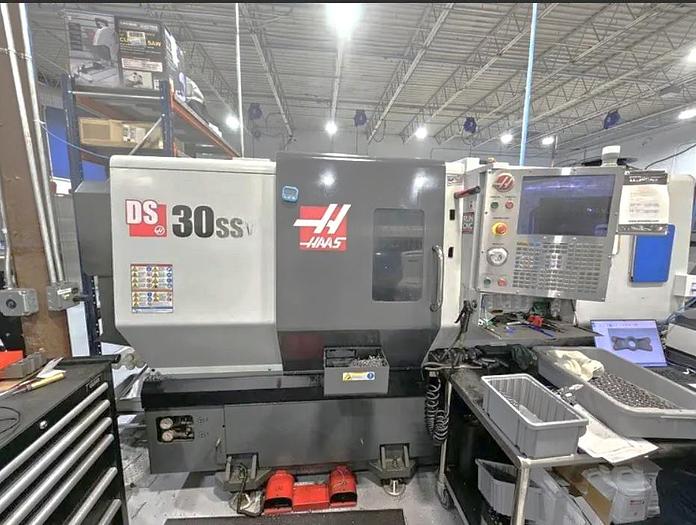

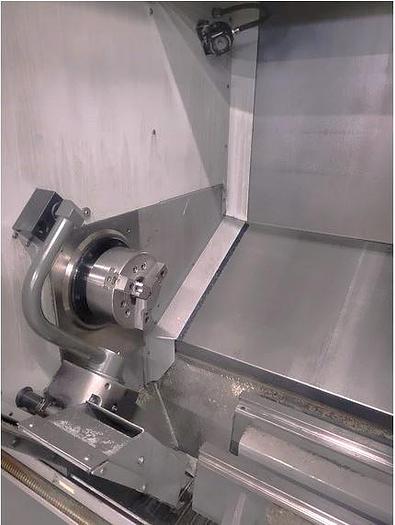

2015 Haas DS-30SSY
2015 Haas DS-30SSY
$98,550 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Y-Axis Capability
Live Milling/Drilling Capability
Full C Axis Spindle Rotation
Subspindle
6” 3-Jaw Hydraulic Chucks (Main & Sub)

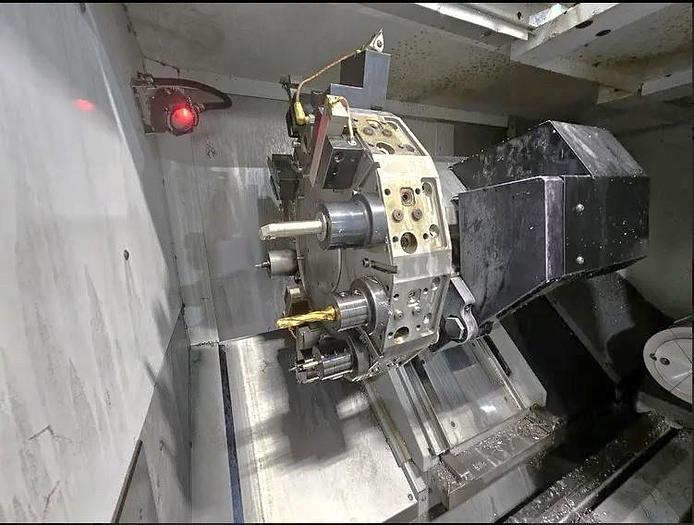

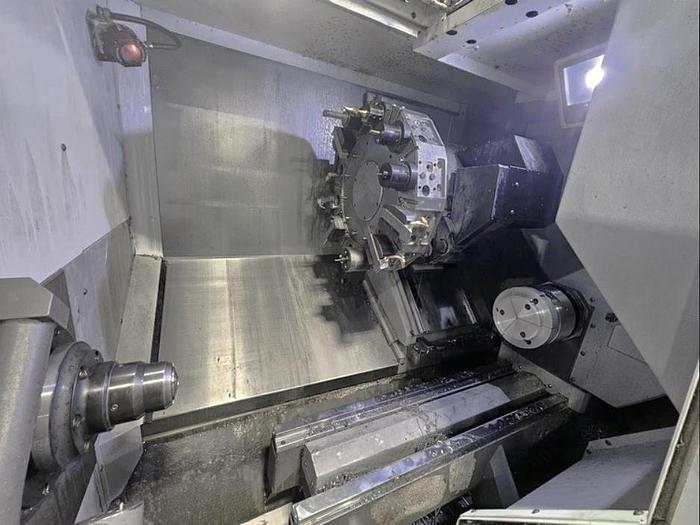

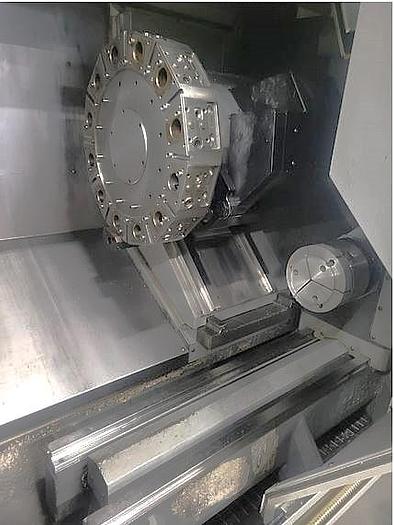

24-Station Hybrid VDI/Bolt-On Turret
Tool Presetter

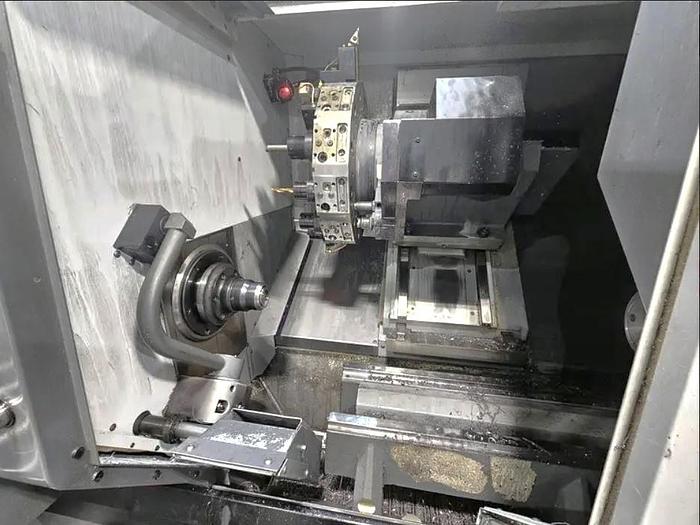

Parts Catcher

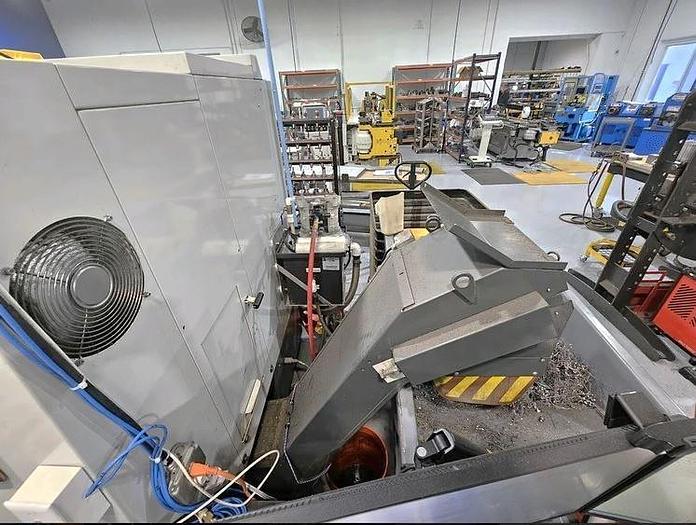

Chip Conveyor
User Definable Macros
Extended Programming Memory
High Voltage Transformer

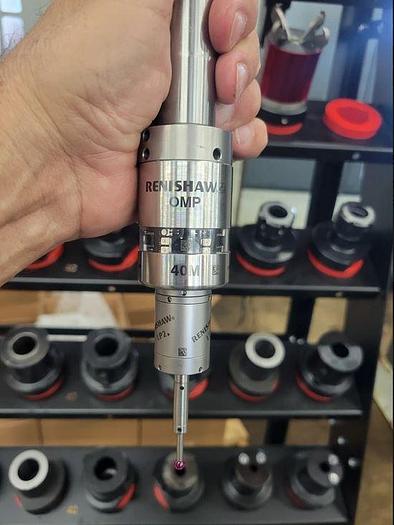

Auto Tool Probe and Part Probe

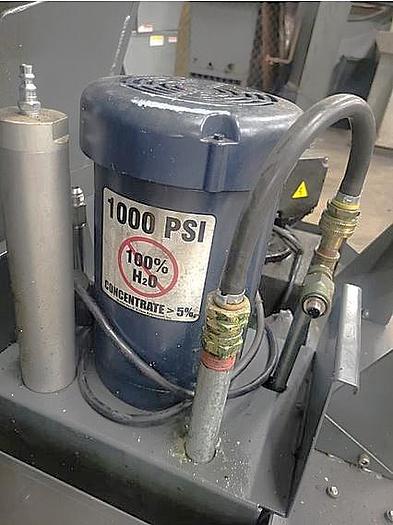

1000 PSI Coolant System
Spindle Orientation
Early Power Failure Detection System
Rigid Tapping
Ethernet Interface
Hard Drive Interface
USB Port Interface
RS 232 Port Interface

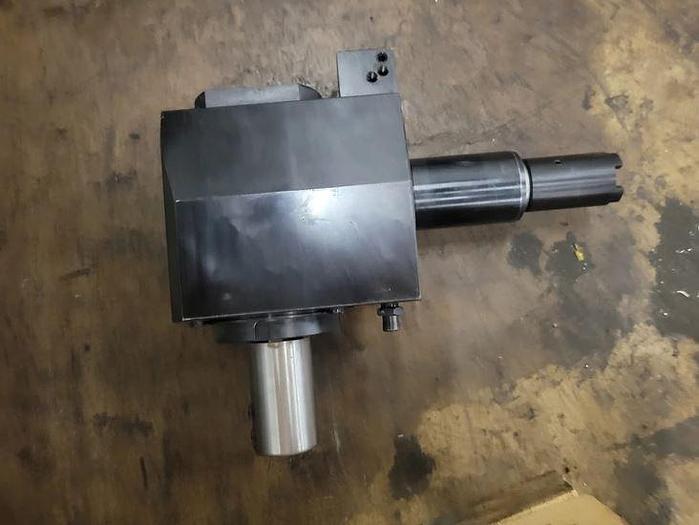

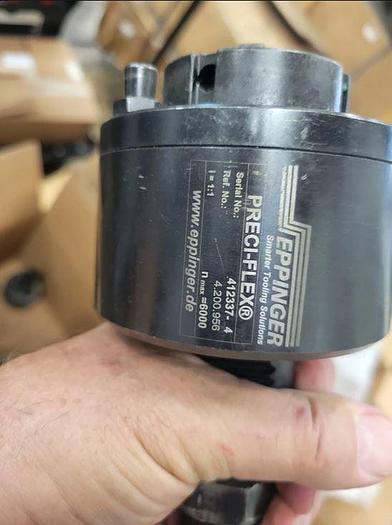

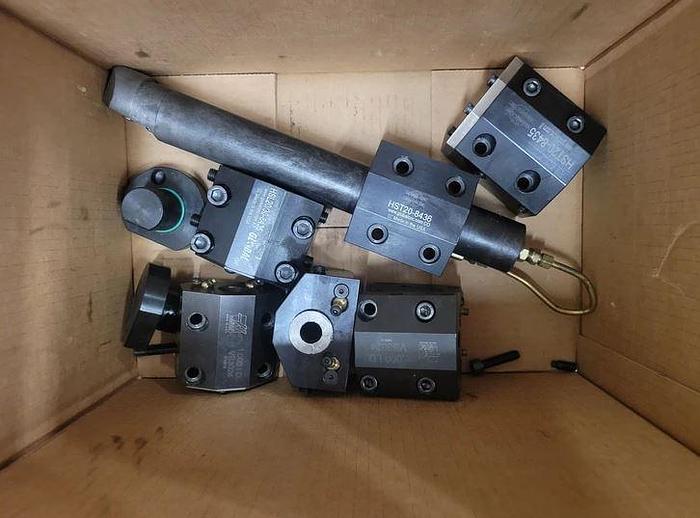

(2) Live Tool Holders Included

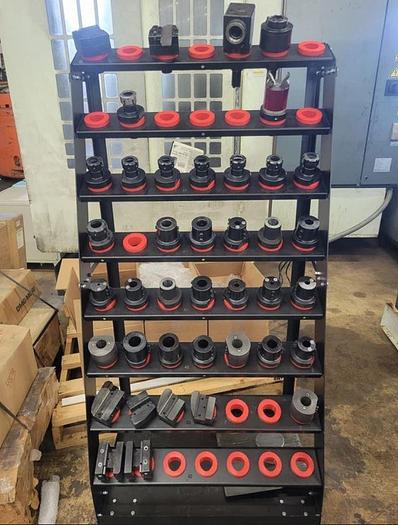

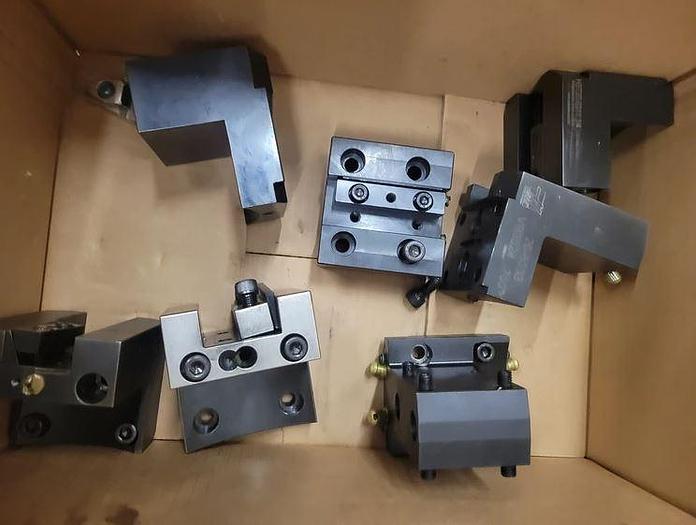

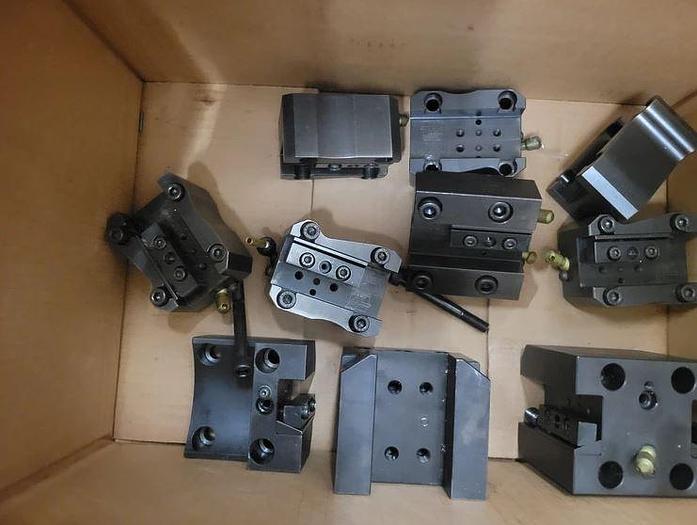

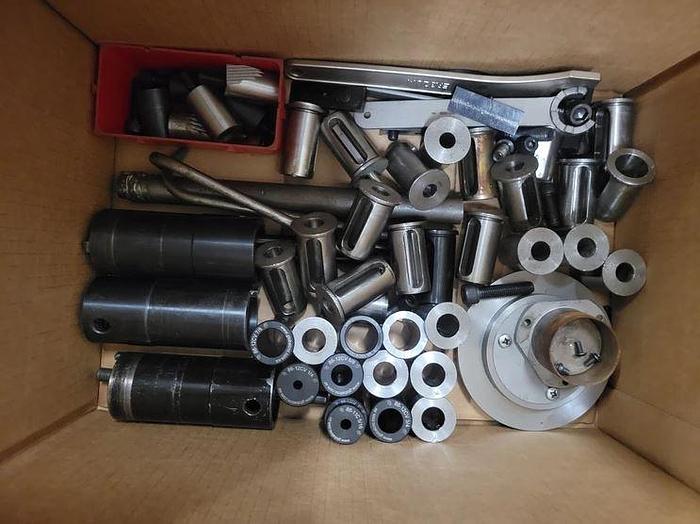

Miscellaneous Static Tool Holders
**Machine has both new spindle and new spindle motor**

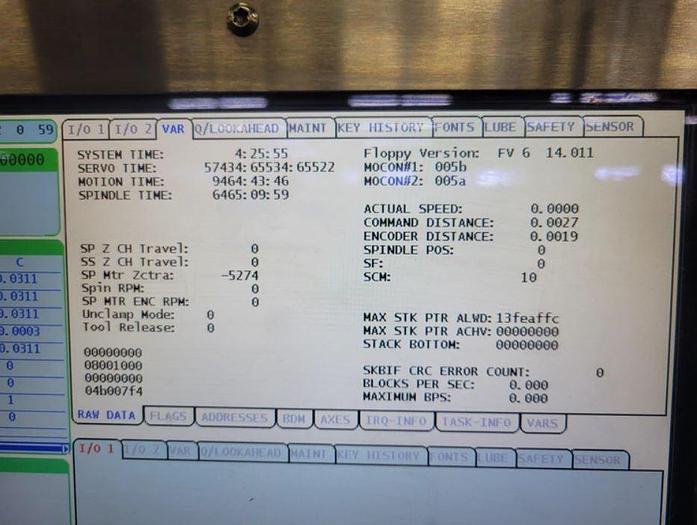

**9,464 Motion Hours**
**ONLY 6,465 Spindle Hours**
Specifications
| Manufacturer | Haas |
| Model | DS-30SSY |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119516 |
| Chuck Sizes Main / Subspindle | 6" / 6" Hydraulic Chucks |
| Maximum Swing over Bed | 31.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Cutting Length | 23" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| C-Axis Rotation | Full C-Axis |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Motor | 30 HP |
| Spindle Speeds | 0 - 4,800 rpm |
| Subspindle Nose / Bore / Bar Capcity | A2-5 / 2.44" / 2" |
| Subspindle Motor | 20 HP |
| Subspindle Speed | 4,800 RPM |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Turret Type | 24 Position Hybrid Turret - BMT 65 |
| Rapid Traverse Rates X, Y / Z | 472 ipm / 945 ipm |
| Machine Dimensions LxWxH | 130" x 90" x 93" |
| Machine Weight | 14,600 lbs |
