2022 DN Solutions DVF 5000 5 Axis Trunnion VMC
![Used 2022 DN Solutions DVF 5000 5 Axis Trunnion VMC](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/9271752e2ef30b3c860750100ba1335b/large-used-2022-dn-solutions-dvf-5000-5-axis-trunnion-vmc.jpg)

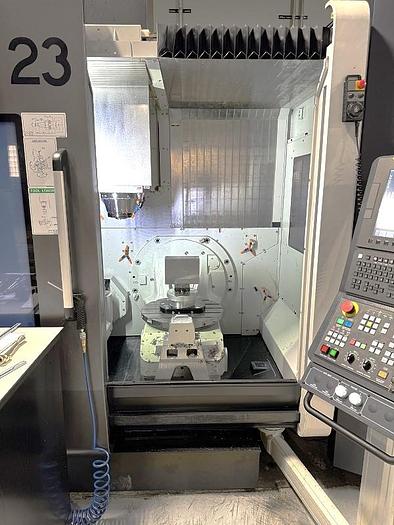

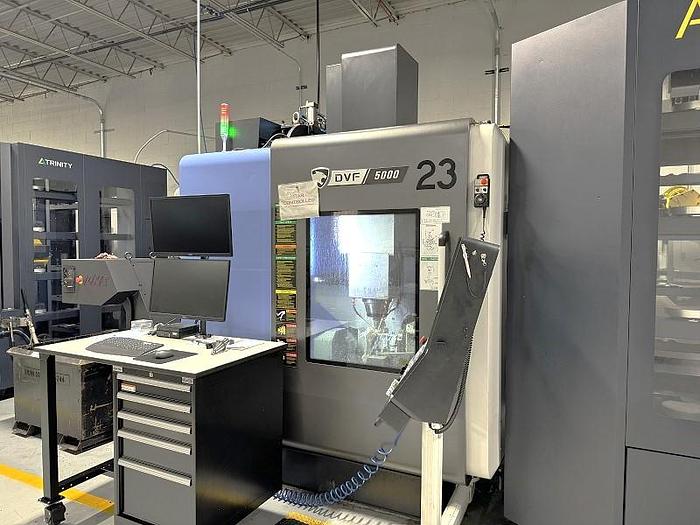

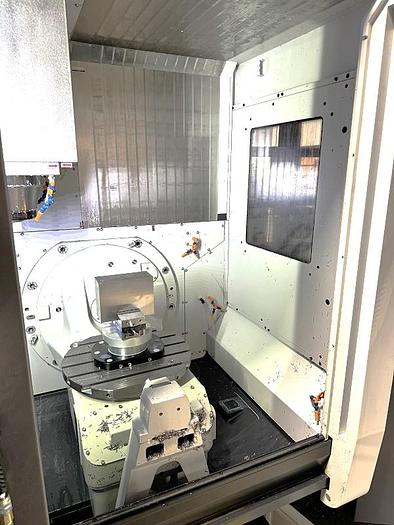

2022 DN Solutions DVF 5000 5 Axis Trunnion VMC
Location:Illinois
Description

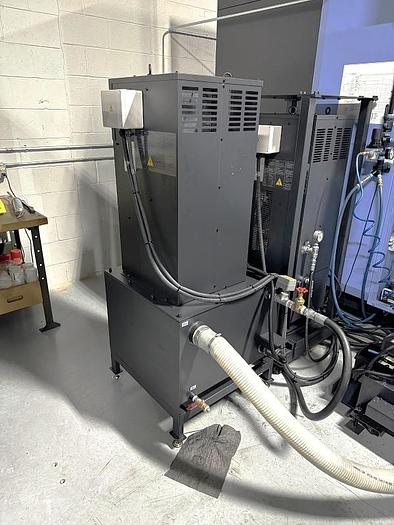

225 PSI Coolant thru the Spindle, 4.0 kw, 2.0 MPA Cyclon
Plumbed for High Pressure Coolant

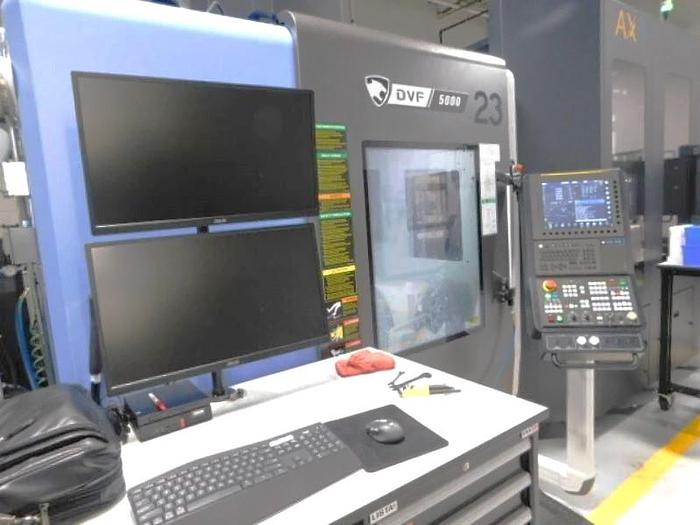

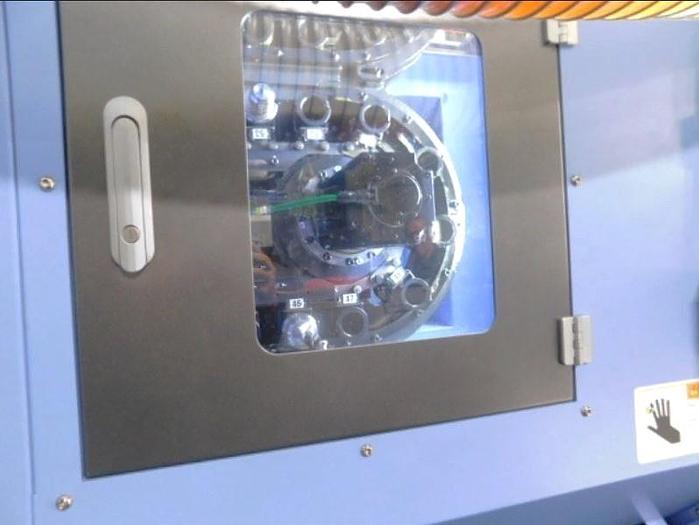

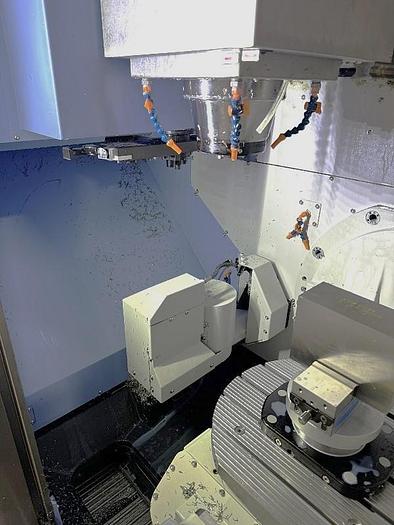

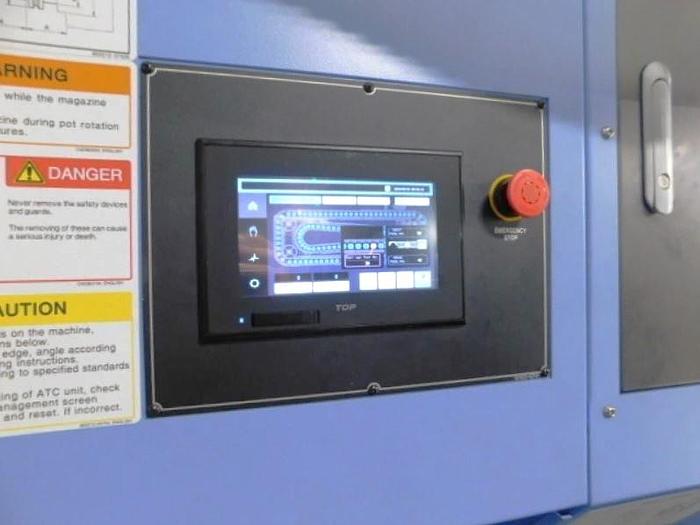

120 Station Tool Changer with CAT #40 Big Plus Renishaw RMI-Q Radio Receiver, RTS Tool Setter and Renishaw GUI Software, Tool Touch Off w/ RMP600 Touch Probe Chip Conveyor - LNS SF-C50 Super Fine Conveyor, filters to 50 Microns

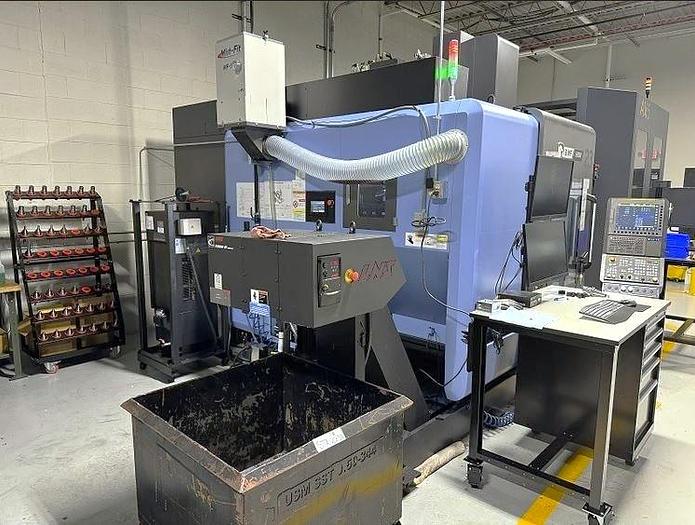

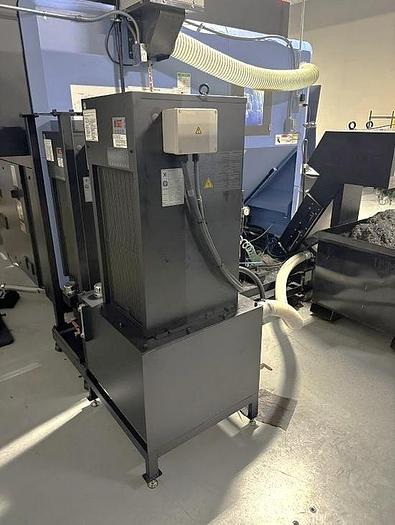

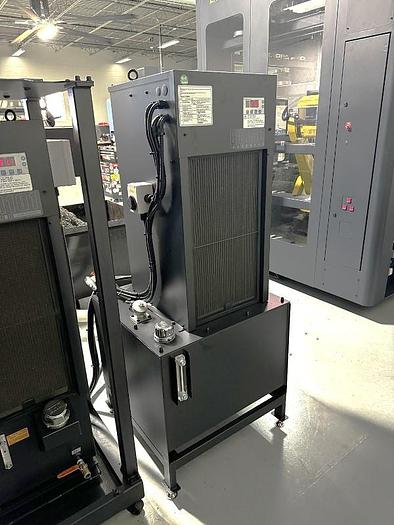

New Coolant Chiller Unit
Table Equipped with 6 Rotary Ports for Hydraulic/Air Through Table
Flood Coolant
Belt Type Oil Skimmer

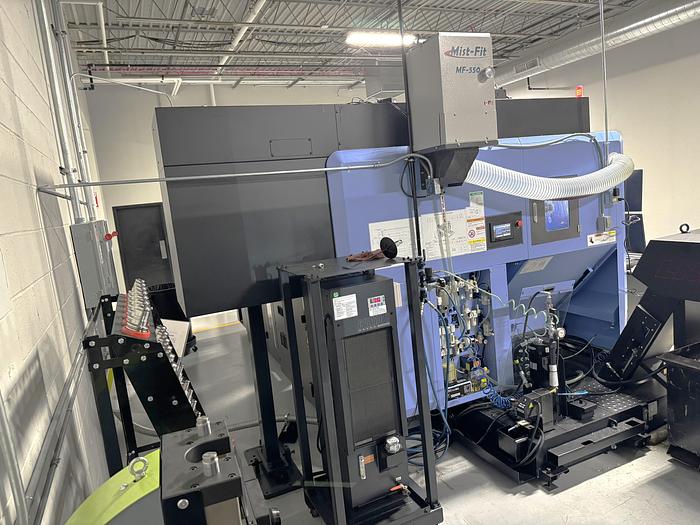

Prepped for Mist Collector

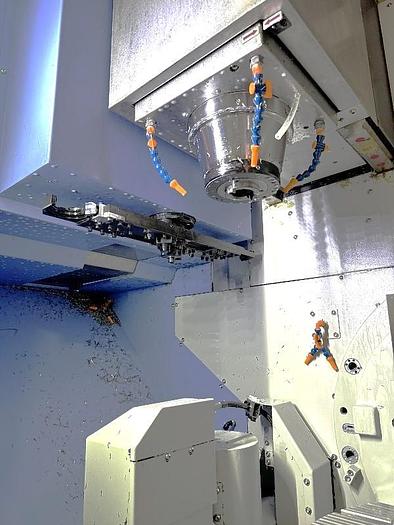

Air Blast Through Spindle
Absolute Rotary Encoders on B & C Axis'
X, Y and Z Axis' have Absolute Type, Linear Glass Scales that do not require referencing at power on
Remote Jog Handle

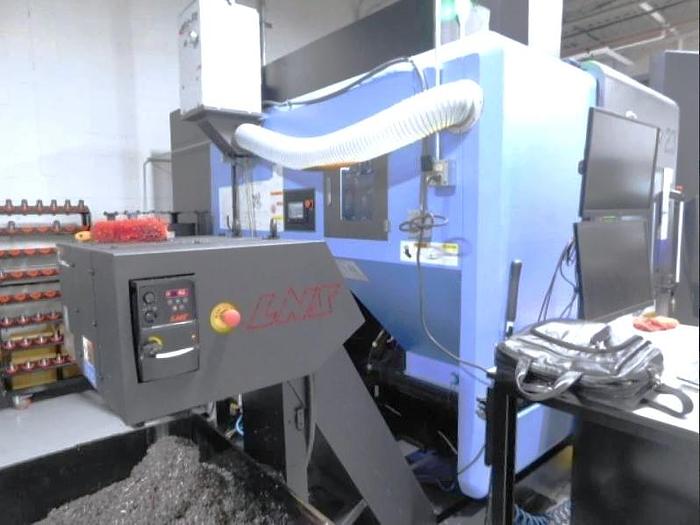

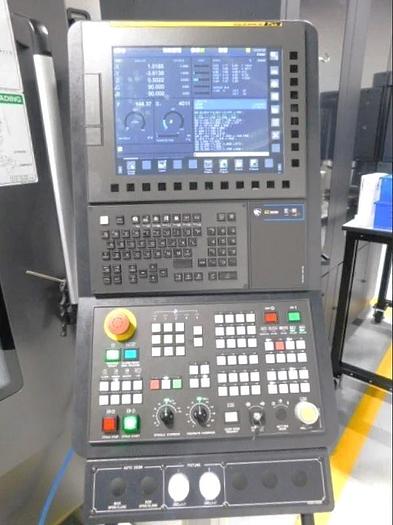

15" Touch Screen Control
DSQ Level 3
600 Block Look Ahead (AICC II + High Speed Processing)
Data Server Pre-Installed with 1 GB Memory Card
Auto Power Off
Tool Load Monitoring
4 MB Part Program Storage
IHMI (Easy Operating System)
400 Pairs of Tool Offsets
High Speed Skip Function
3D Coordinate Conversion
Fanuc Options with Ethernet IP and Robot Interface All Available Manuals
Maintenance Tool Kit
Shipping Brackets
220V Electrics
Notes:
-A Geometry check was done in March of 2024 and the machine meets new machine tolerances. A copy is available.

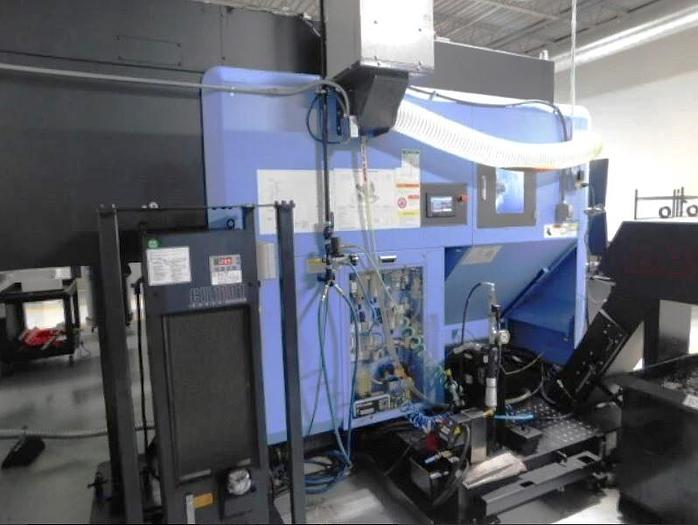

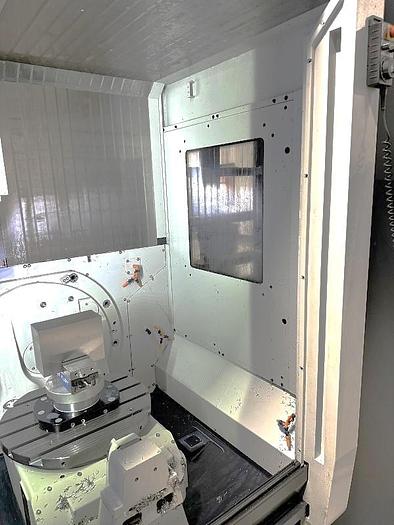

-The Trinity Robot/Pallet Pool with Auto Door does not go with this machine, but the machine has the interface to accept a robot or pallet pool. The DVF5000’s side door does slide open and could be converted into an Auto Door.
-Machine Scheduled Available to come out 8/1/2024
New: Nov. 2022, installed 1/23/2023, Price New As Equipped at $385,000
Hours: as of 4/4/2024

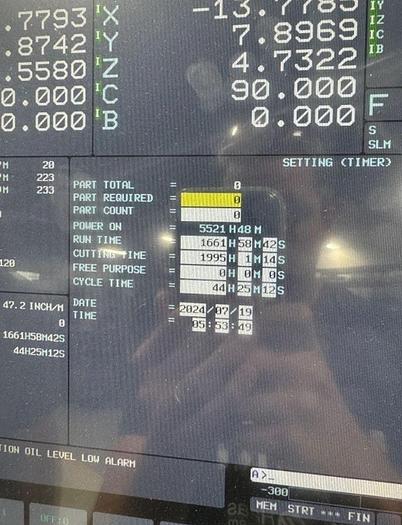

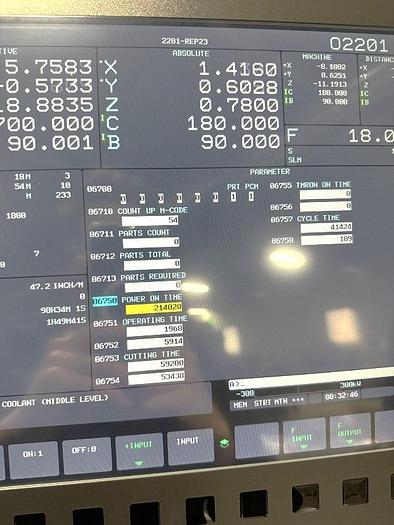

Power On Hours: 5,521
Run Hours: 1,661
Cut Hours: 1,995
DN Solutions will provide the following warranty & services to any buyer on the contiguous USA:
1. DNSA will offer a 1 year parts warranty to the next end-user, starts upon installation at new end-user.
2. DNSA will ensure the machine is within factory tolerances and will do a full inspection upon installation at the new end-user. (DNSA is not required to install the machine, but will provide a “factory inspection” FOC to the new end-user and guarantee the machine to be within factory specs)
3. DNSA will laser measure and compensate all 5-axis upon installation at the new end user, Free of Charge.
4. DNSA will provide and install and new Coolant Chiller
Specifications
Manufacturer | Doosan |
Model | DVF 5000 5 Axis Trunnion VMC |
Year | 2022 |
Condition | Used |
Stock Number | 119519 |
Control | Fanuc 31i-B5 Plus |
Table Size | 19.7" Diameter |
Maximum Table Load | 882 lbs. |
Distance Spindle Nose to Table Top | 5.9" - 21.65" |
Maximum Workpiece Diameter | 21.7" |
Maximum Workpeice Height | 17.7" |
X-Axis Travel | 24.6" |
Y-Axis Travel | 17.7" |
Z-Axis Travel | 15.7" |
B-Axis Tilt Movement | +110 Degrees, - 30 Degrees |
B-Axis RPM | 20 RPM |
C-Axis Rotation | .0001 Degrees |
C-Axis RPM | 20 RPM |
Spindle Taper | CAT 40 - Big Plus |
Spindle Speed | 18,000 RPM |
Spindle Motor | 30 HP |
Tool Magazine Capacity | 120 Station Tool Changer |
Tool Change Time Tool to Tool | 1.3 seconds |
Tool Change Time Chip to Chip | 5.3 seconds |
Rapid Traverse Rates | 1575 IPM |
Machine Dimensions LxWxH | 87" x 114" x 114" |
Machine Weight | 16,750 lbs |
