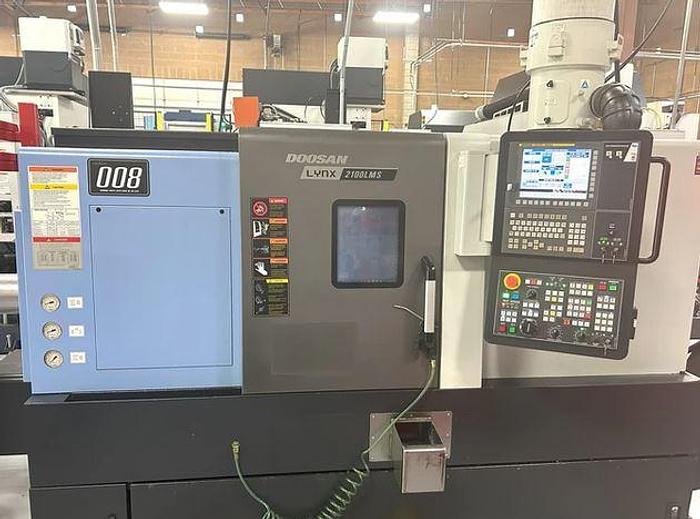

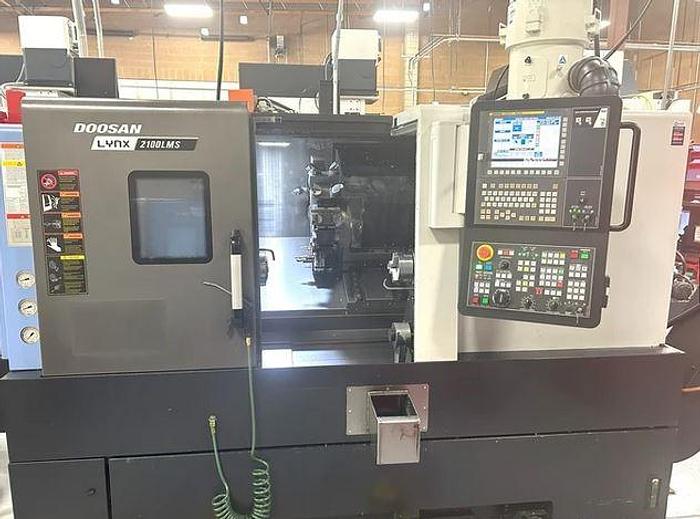

2016 Doosan Lynx 2100LMSB w/ LNS Barfeed
No longer available
2016 Doosan Lynx 2100LMSB w/ LNS Barfeed
$79,950 (USD)
Location:Washington
Description
Subspindle
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

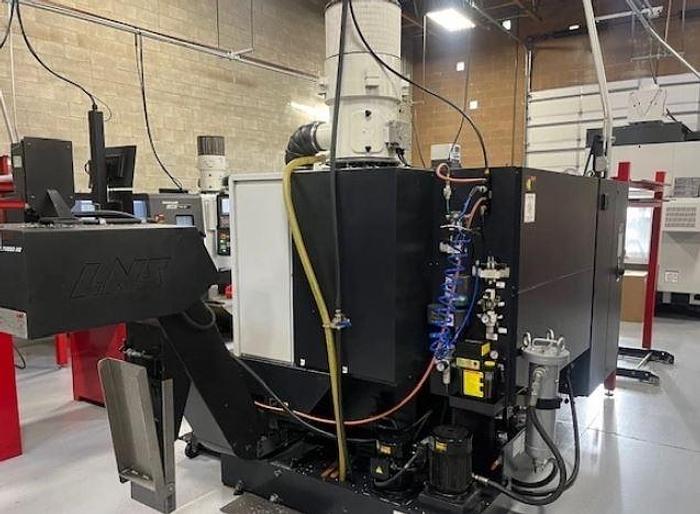

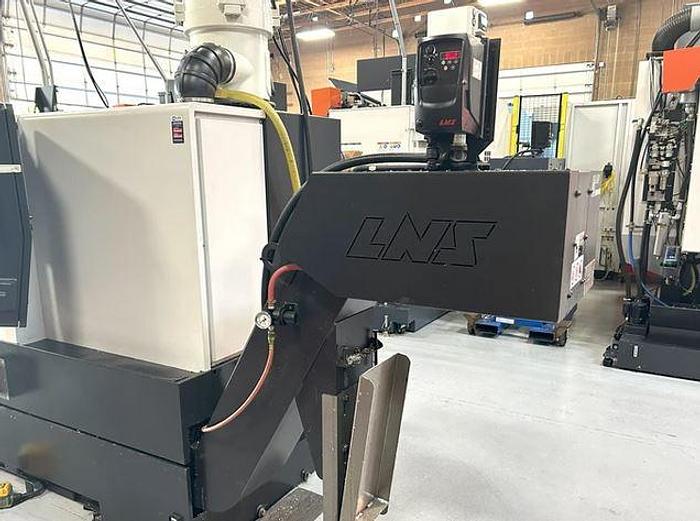

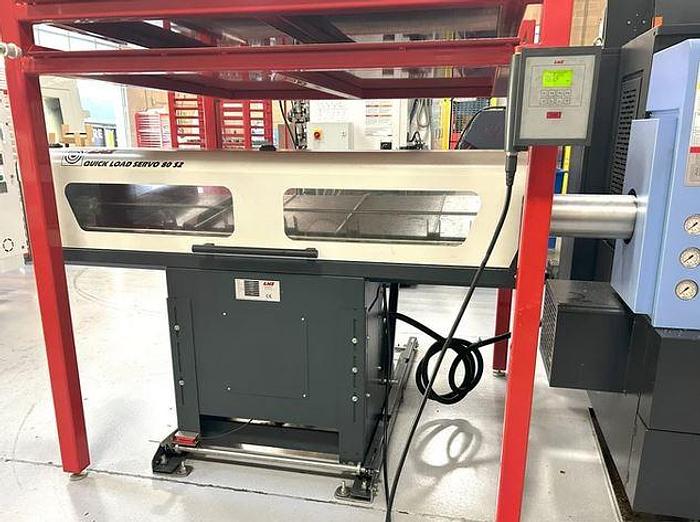

LNS Quick Load Servo 80 S2 Barfeeder
Chip Conveyor
Parts Catcher
Auto Tool Presetter
8" 3 Jaw Hydraulic Chuck on Main Spindle
ATS S26 Collet Chuck for Main Spindle

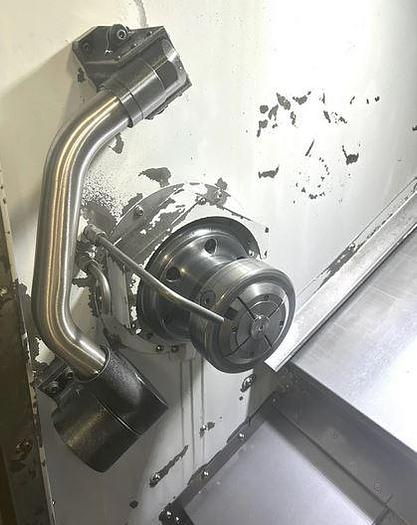

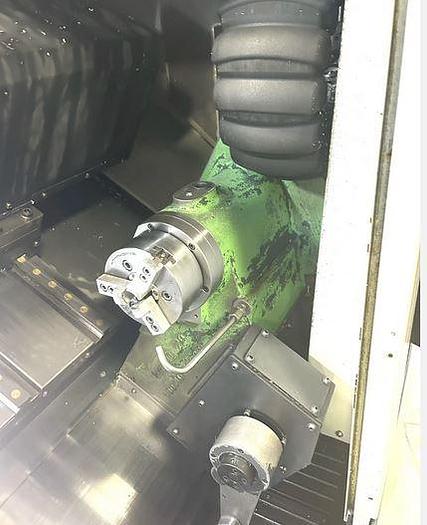

5" 3 Jaw Hydraulic Chuck on Subspindle

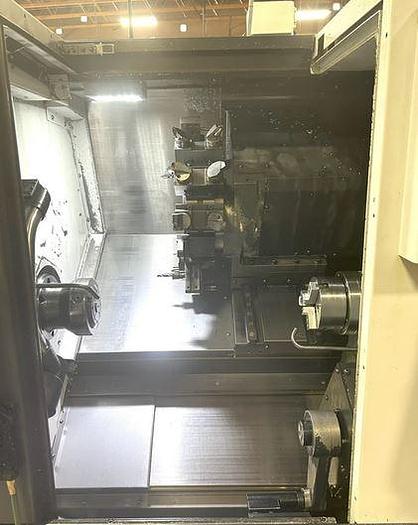

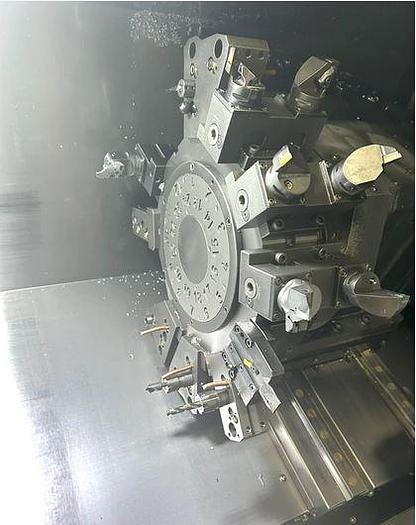

12 Sided / 24 Position BMT 45 Turret
Mist Collector
High Pressure Coolant Pump - 145 PSI
Tooling Includes: (1) Radial Live Holder(2) Axial Live Holders

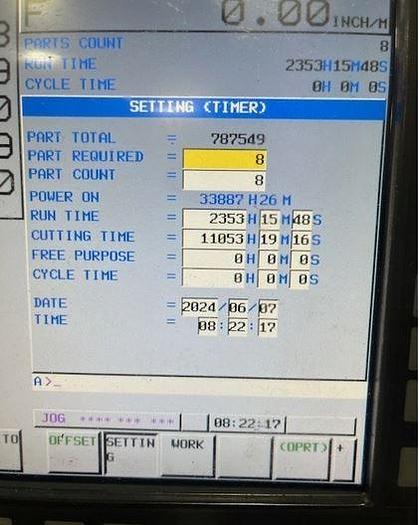

Miscellaneous Static Tooling ** ORIGINAL OWNER ** CUTTING PRIMARILY ALUMINUM ** AS OF JUNE, 2024 – CUTTING TIME: 11,053 HOURS ** MACHINE MANUFACTURED DATE: NOVEMBER, 2016**
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION
** REPLACEMENT COST NEW AS EQUIPPED ABOVE: $190,000+
Specifications
| Manufacturer | Doosan |
| Model | Lynx 2100LMSB w/ LNS Barfeed |
| Year | 2016 |
| Condition | Used |
| Stock Number | 119523 |

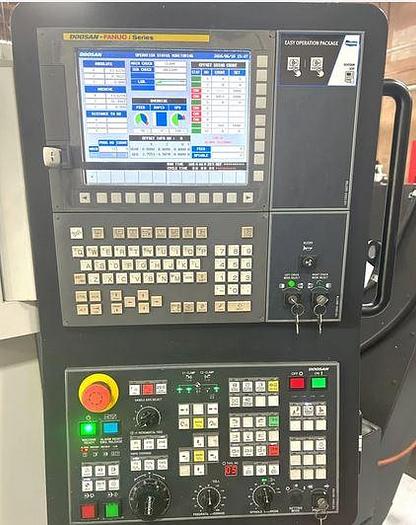

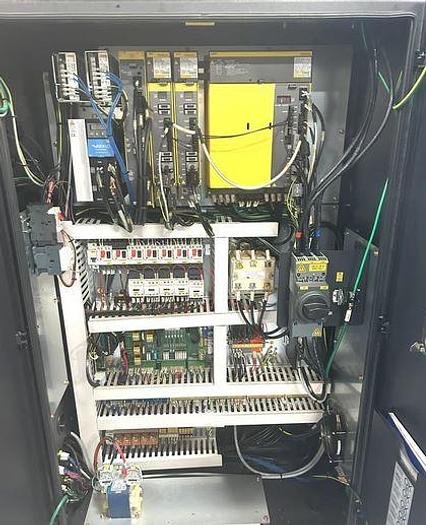

| Machine Control | Fanuc i Series Control |
| Chuck size main / subspindle | 8" / 5" Hyd Chks |
| Maximum swing over bed | 23.6" |
| Maximum turning diameter | 11.8" |
| Maximum turning length | 20.1" |
| Maximum bar capacity | 2.59" |
| X-axis travel | 8.1" |
| Y-axis travel | 4.13" |
| Z-axis travel | 22" |
| B-axis travel - subspindle | 22" |
| C axis spindle rotation | .001 Degree |
| Spindle nose / spindle bore | A2-6" / 2.99" |
| Spindle speed - 1 range | 40 - 4,500 RPM |
| Spindle motor | 20 HP |
| Subspindle speed / motor | 6,000 RPM / 7.5 HP |
| Rotary tool motor / speeds | 5 HP / 6,000 RPM |
| Turret type - all live capable | 12 Sided/24 Stations - BMT45 Type Turret |
| Rapid traverse rates x, b / z | 1181 PM / 1417 IPM |
| Machine dimensions lxwxh | 112"L (+39" w/ chip conveyor) x 63"W x 67"H |
| Machine weight | 8,150 lbs |
