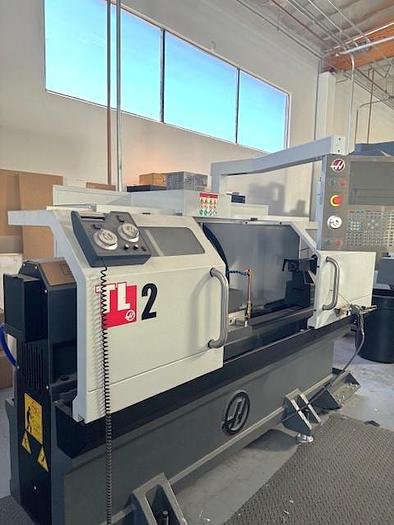

2018 Haas TL-2
![Used 2018 Haas TL-2](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/00bfb970bfe6bd46c8c972264b87fecc/large-used-2018-haas-tl-2.jpg)
No longer available
2018 Haas TL-2
$31,500 (USD)
Location:California
Description
8" 3 Jaw Manuall Chuck
Tailstock
4 Station Indexable Turret
Electronic Hand Wheels
Coolant System with Tank & Pump
Full Enclosure Doors
Visual Part Programming System
Work Light Early Power Failure Detection Module
User Definable Macros 1 GB Program Memory
Haas Connect
Haas Drop
WIFI Interface
Ethernet Interface RS 232 Port Interface Vector Drive Spindle Wired 220V Three Phase Power
Specifications
Manufacturer | Haas |
Model | TL-2 |
Year | 2018 |
Condition | Used |
Stock Number | 119524 |
Control | Haas CNC Control |
Chuck Size | 8" 3 Jaw Manual Chuck |
Maximum Swing over Bed | 20" |
Maximum Swing Over Cross Slide | 11" |
Maximum Cutting Diameter | 16" |
Maximum Machining Length | 48" |
X-axis travel | 8" |
Z-Axis Travel | 48" |
Spindle Nose / Spindle Bore | A2-5" / 2.31" |
Spindle Speeds | 2,000 RPM |
Spindle Motor | 10 HP |
Number of Turret Positions | 4 Station Turret |
Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
Machine Dimensions | 138.6" x 57.4" x 72.4" |
Machine Weight | 5,000 lbs. |
