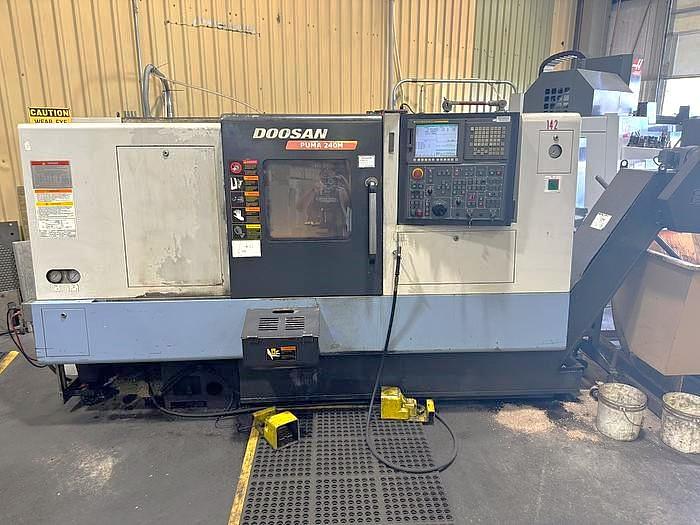

2012 Doosan Puma 240MC
2012 Doosan Puma 240MC
Contact us for price
Location:California
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation

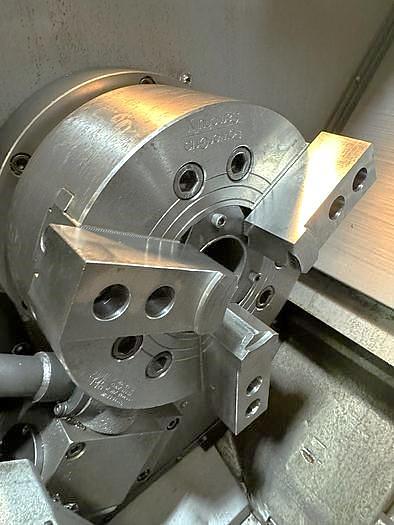

Live Milling/Drilling Capability 10" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor
Programmable Tailstock
PCMCIA Card Interface RS 232 Port Interface Boxed Ways
Coolant System with Tank & Pump
Boxed Way Design All Available Static Tooling
-(1) Axial Live Holders
-(1) Radial Live Holder
All Available Manuals

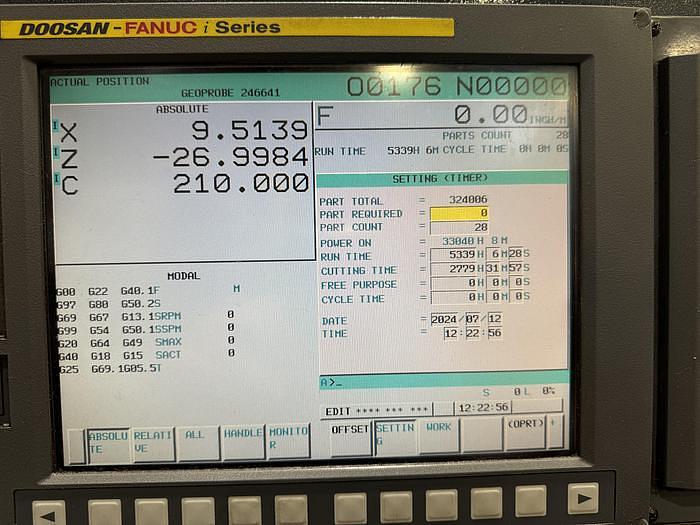

**5,339 Run Time Hours**
**2,779 Run Time Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 240MC |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119532 |
| Control | Fanuc 21i-TB Control |
| Chuck Size | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 21.7" |
| Maximum Cutting Diameter | 15.4" |
| Maximum Machining Length | 22.2" |
| Maximum Bar Capacity | 3.0" |
| X-Axis Travel | 9.5" |
| Z-Axis Travel | 22.83" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.56" |
| Spindle Speeds - Main | 35 - 3,500 RPM |
| Spindle Motor - Main | 25 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/ Z / C | 945 IPM / 1181 IPM / 200 RPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 4.7" / MT #4 |
| Machine Dimensions | 130" x 77" x 80" (machine only), 170" with conveyor gooseneck |
| Machine Weight | 9,780 lbs. |
