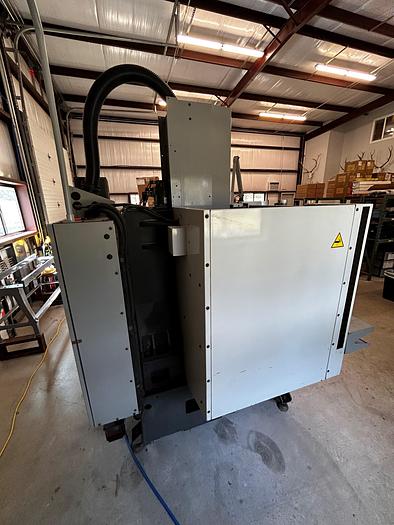

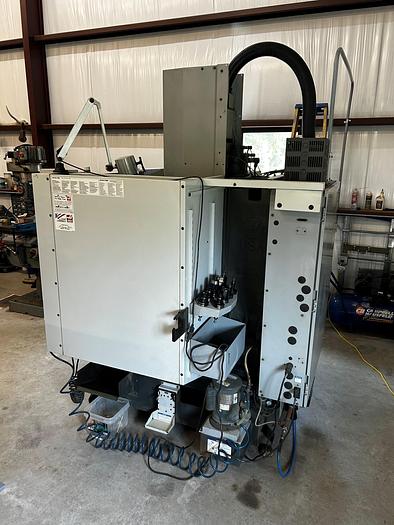

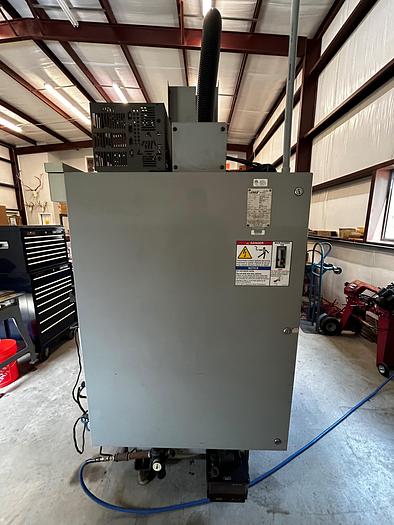

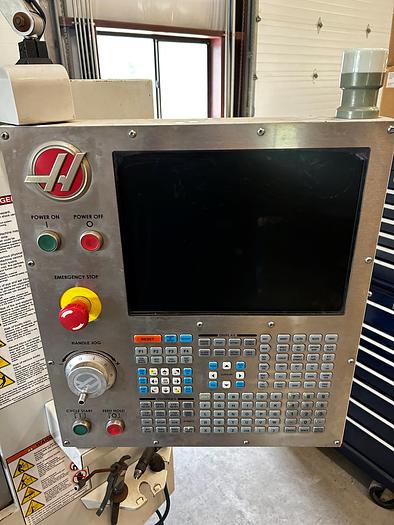

2010 Haas Mini Mill
2010 Haas Mini Mill
$26,500 (USD)
Location:Texas
orCall (863) 439-6066
Description
Direct Belt Drive
RS 232 Port Interface
Coolant System with Tank & Pump
10 Station Tool Changer
Either Single Phase 240V or Three Phase 208V
Specifications
| Manufacturer | Haas |
| Model | Mini Mill |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119534 |
| Table Size | 36" x 12" |
| Maximum Table Load | 500 lbs |
| X-axis travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT #40 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 7.5 HP |
| Distance Spindle Nose to Table Top | 4" - 14" |
| Tool Magazine Capacity | 10 Position ATC |
| Tool Change Time Tool to Tool | 2.5 Seconds |
| Maximum Tool Diameter / Length / Weight | 3.5" / Na / Na |
| Rapid Traverse Rates | 650 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 78" x 80" x 98" |
| Machine Weight | 3,400 lbs |
