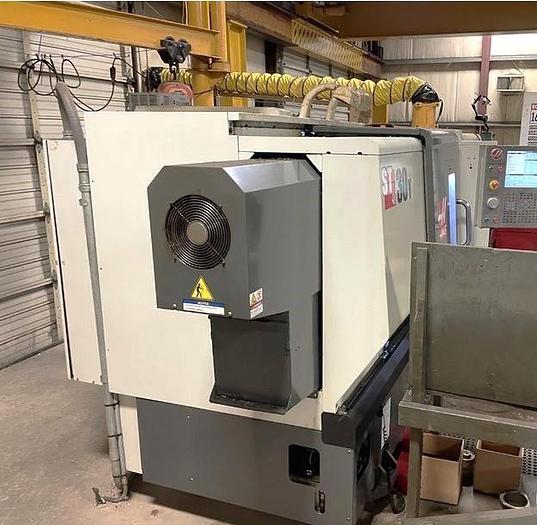

2011 Haas ST30Y Big Bore with Milling & Y Axis
2011 Haas ST30Y Big Bore with Milling & Y Axis
$89,950 (USD)
Location:Alberta, Canada
orCall (863) 439-6066
Description
4" Bar Capacity Big Bore Spindle Option
Full C Axis Spindle Rotation - High Torque
Live Milling/Drilling Capability
Y Axis Capability

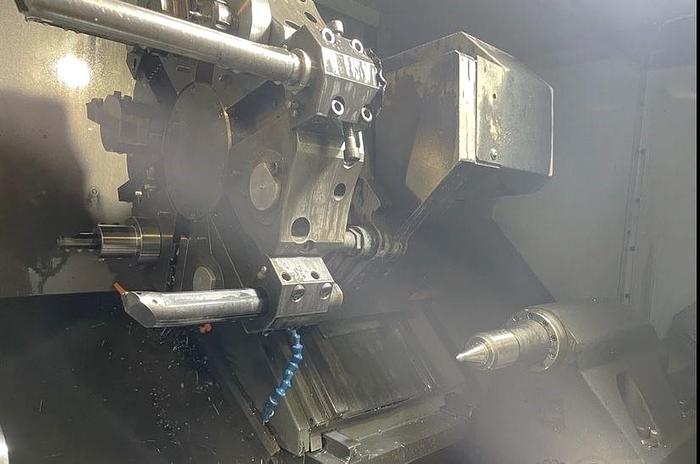

Programmable Tailstock

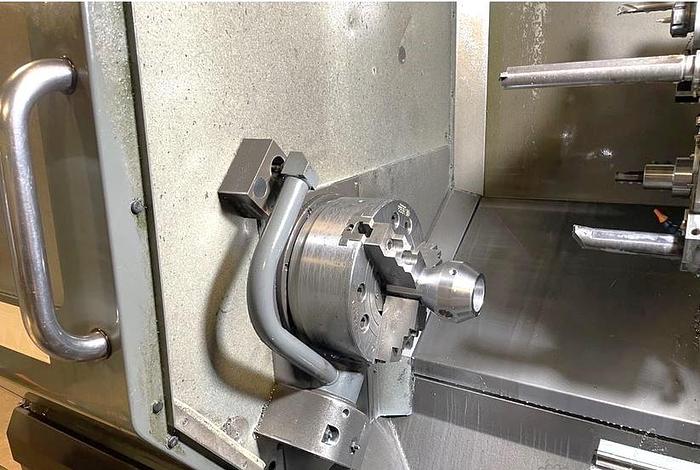

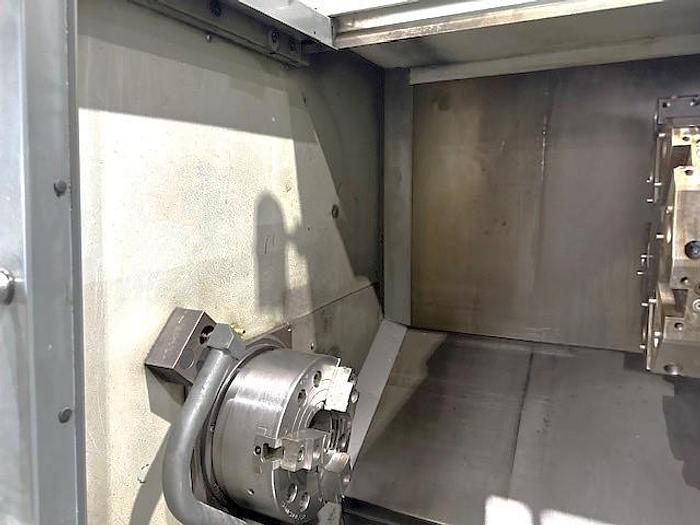

12" 3 Jaw Hydraulic Chuck
2 Speed Gearbox

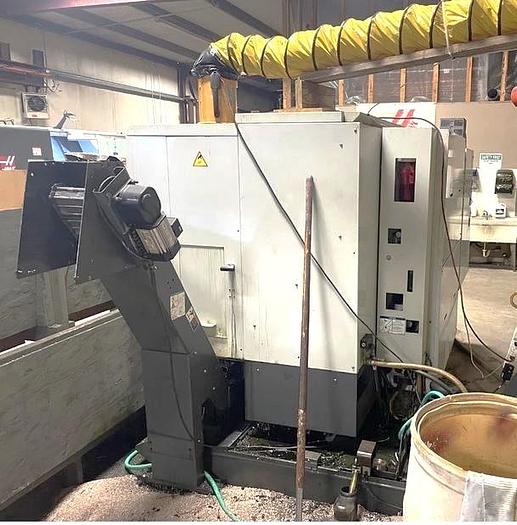

Chip Conveyor
Tool Presetter
High Pressure Coolant
High Intensity Lighting

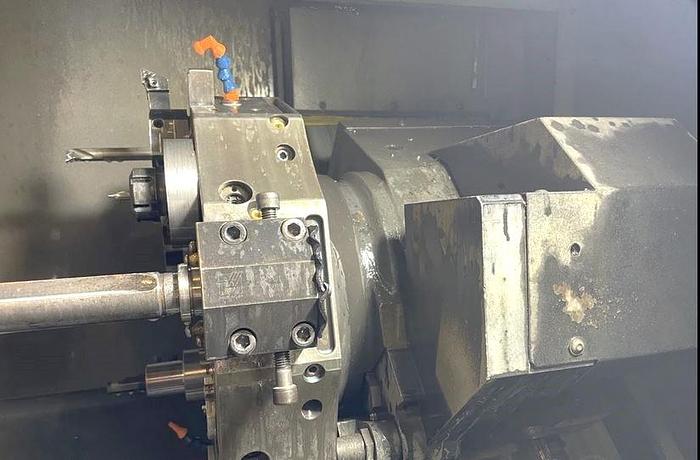

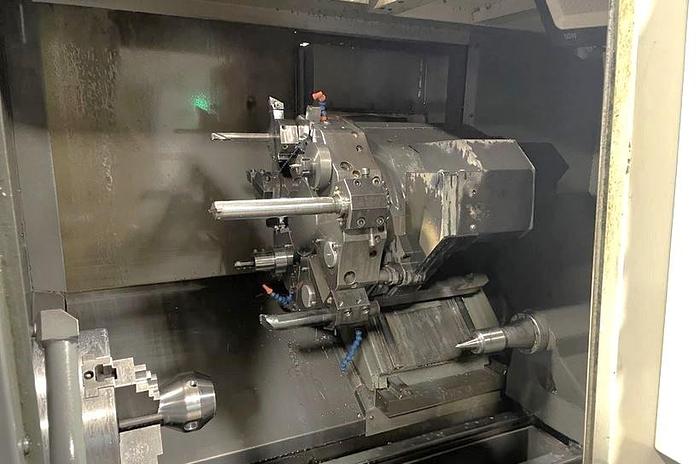

12 Station Hybrid Style Turret
Spindle Orientation
Early Power Failure Detection Module
Rigid Tapping
15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
All Available Live Tool Holders
Assortment of Static Tool Blocks

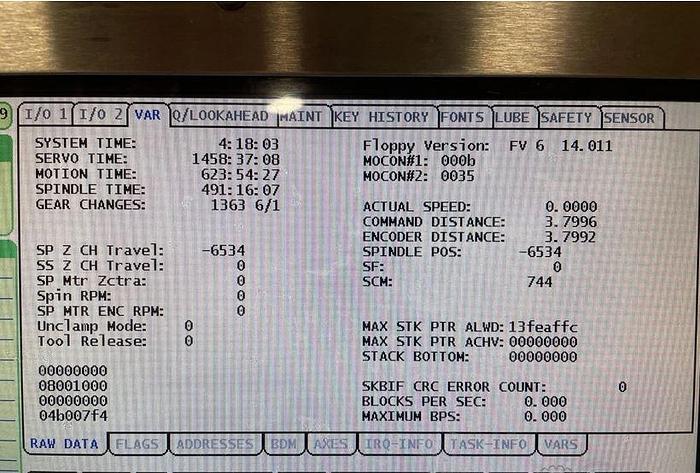

**Servo On Hours 1,458**
**Motion Hours 623**
**Spindle Run Hours 491**
**Replacement Cost as Equipped $156,670**
Specifications
| Manufacturer | Haas |
| Model | ST30Y Big Bore with Milling & Y Axis |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119536 |
| Machine Control | Haas CNC Control |
| Chuck Size | 12" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 18" |
| Maximum Machining Length | 23" |
| Maximum Bar Capacity | 4" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 26" |
| C Axis Spindle Rotation | .001 Full C Axis Rotation |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 30 - 2,400 RPM |
| Spindle Motor | 40 HP - 2 Speed Gearbox |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Station Turret -Hybrid Type Turret |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 13,540 lbs. |
