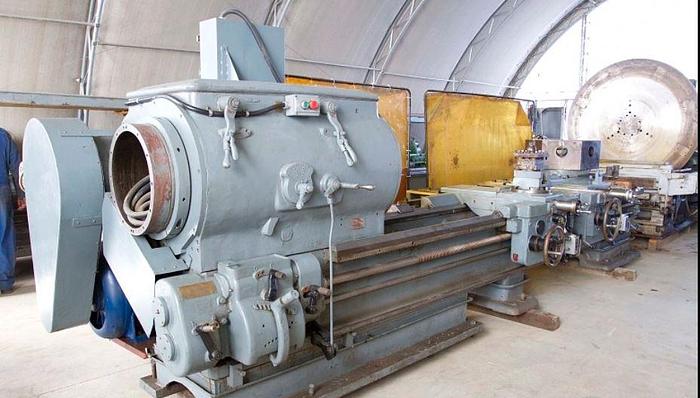

1942 Lehmann Hydratrol 16.5" Big Bore Oil Country Lathe (fully reconditioned)
1942 Lehmann Hydratrol 16.5" Big Bore Oil Country Lathe (fully reconditioned)
$35,950 (USD)
Location:Alberta, Canada
orCall (863) 439-6066
Description
Fully Reconditioned

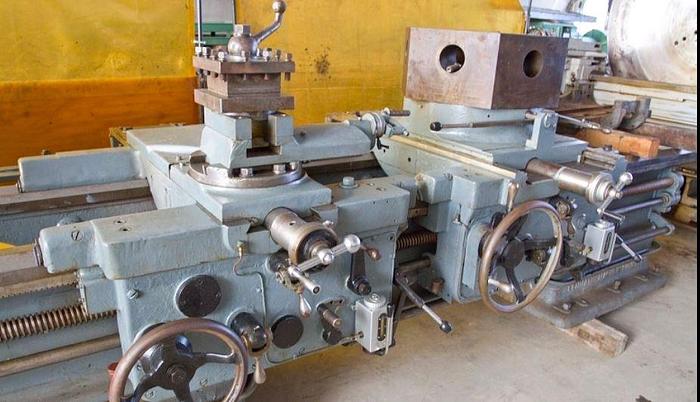

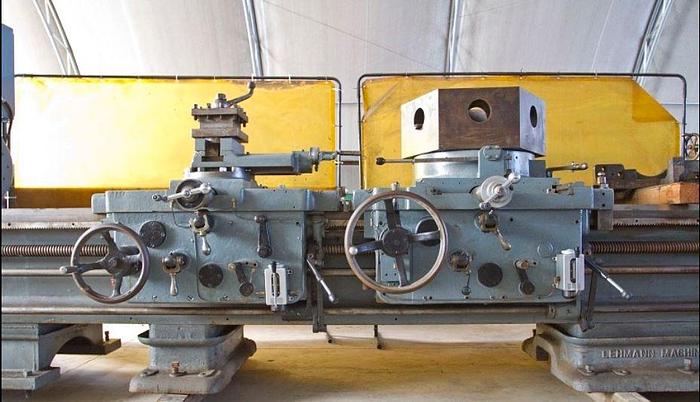

(2) Cross Slides
One Slide with 5 Station Indexable Turret
One Slide with 4 Way Tool Post
Specifications
| Manufacturer | Lehmann |
| Model | Hydratrol 16.5" Big Bore Oil Country Lathe (fully reconditioned) |
| Year | 1942 |
| Condition | Used |
| Stock Number | 119546 |
| Chuck Size | not available |
| Maximum Swing over Bed | 32" |
| Maximum Swing Over Cross Slide | 22.5" |
| Maximum Distance Between Centers | 120" |
| Spindle Mount | Cylindrical |
| Spindle Bore | 16.5" |
| Spindle Speeds | 150 RPM |
| Spindle Motor | 40 HP |
| Tool Post Type | 4 Way Tool Post / 5 Position Turret |
| Width of Bed Ways | 27.5" |
| Cutting Feed Rates | 0.0055" - 0.64" |
| Threading | 5/8 - 72 TPI |
| Leadscrew Diameter | 2.125" |
| Electrics | 460V / 3 PH |
| Machine Dimensions | not available |
| Machine Weight | not available |
