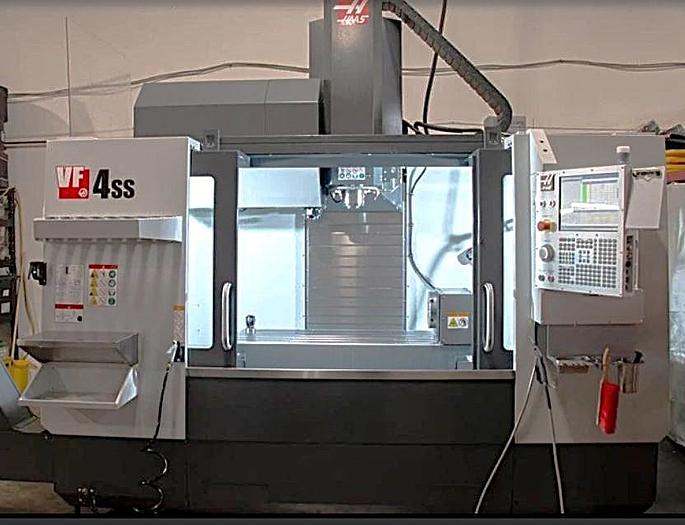

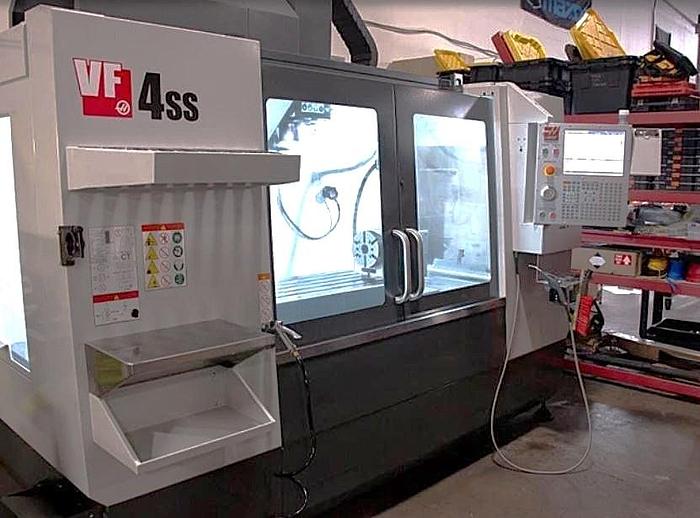

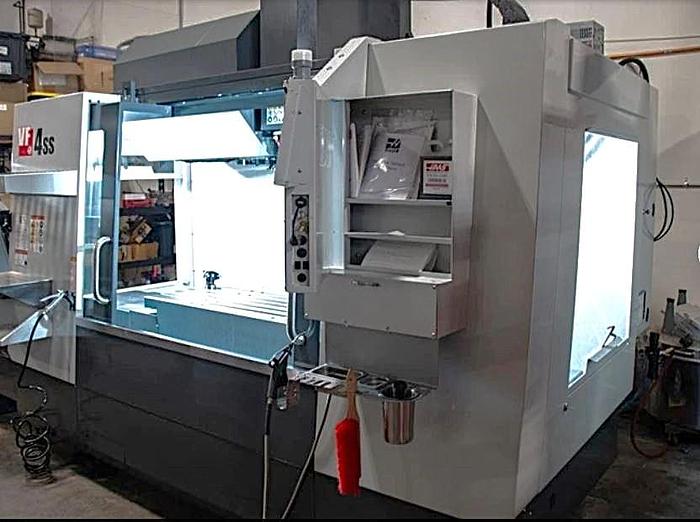

2023 Haas VF-4SS
No longer available
2023 Haas VF-4SS
Location:Colorado
Description

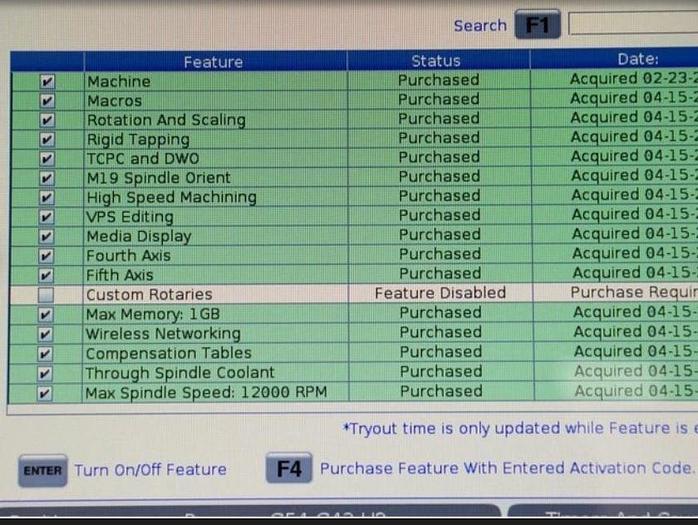

WIPS Haas Wireless Intuitive Probing Package - Renishaw

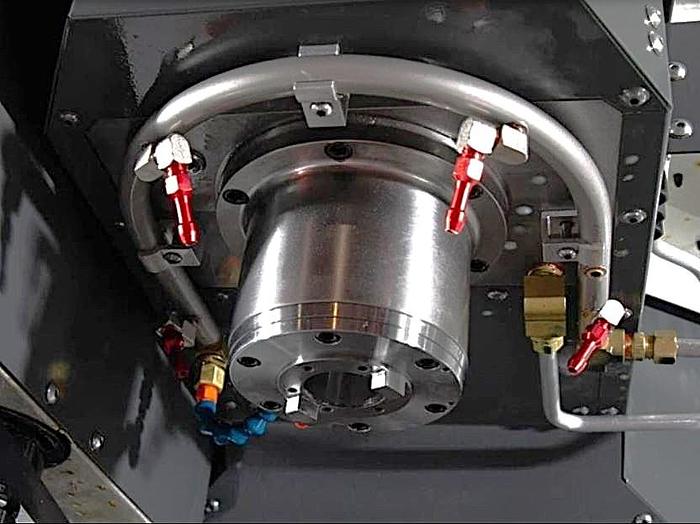

Coolant Thru the Spindle
4th & 5th Axis Drive & Wiring

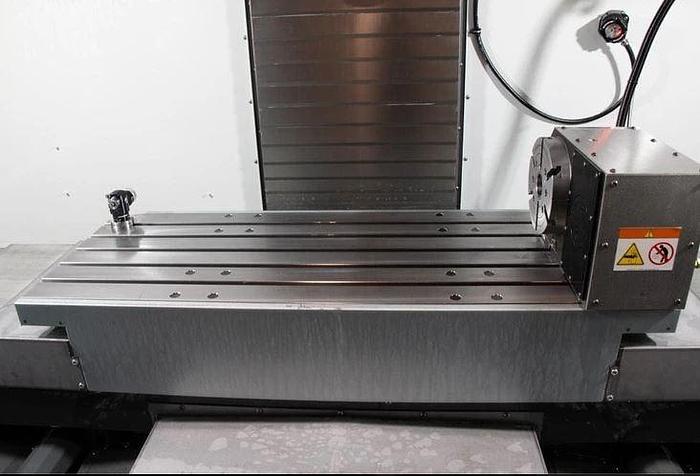

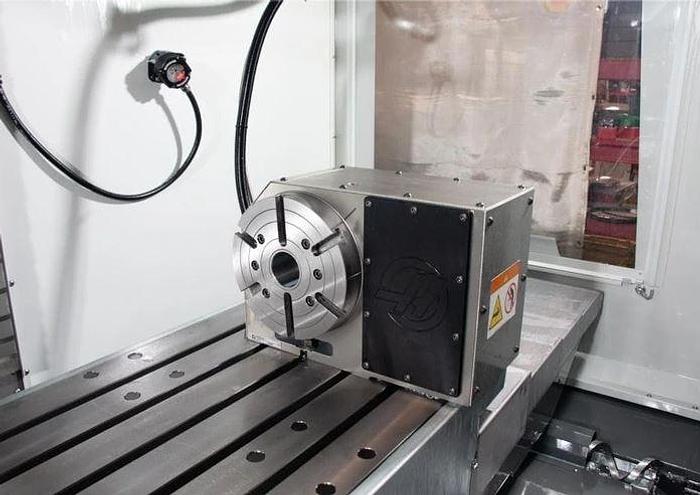

Haas HRT-210SS 4th Axis Rotary Table
30+1 Position Side Mounted Tool Changer
High Speed Machining

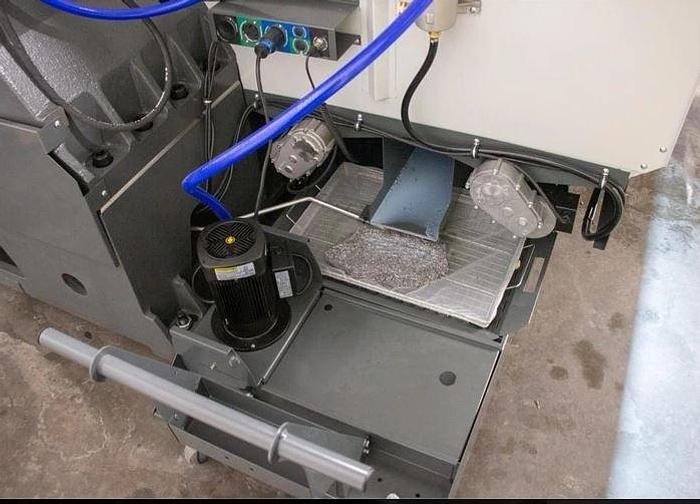

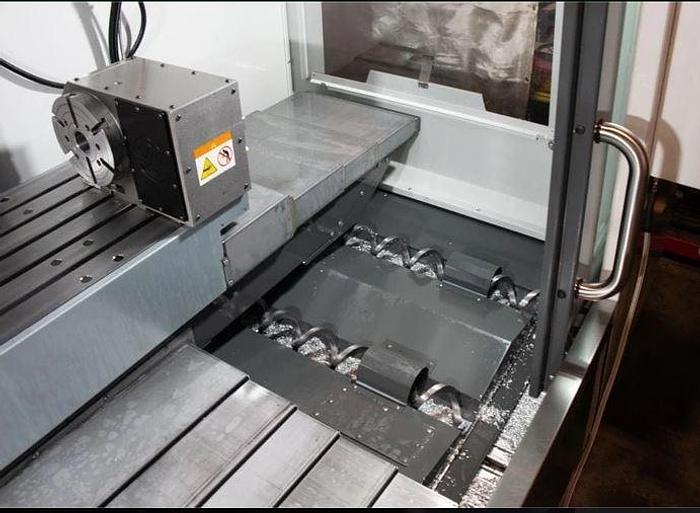

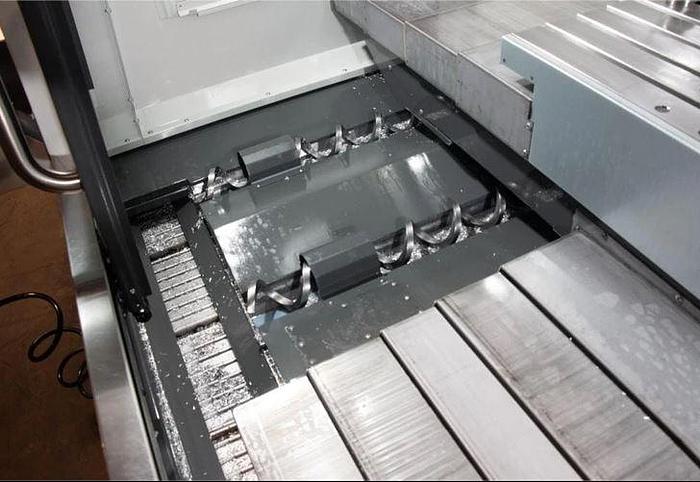

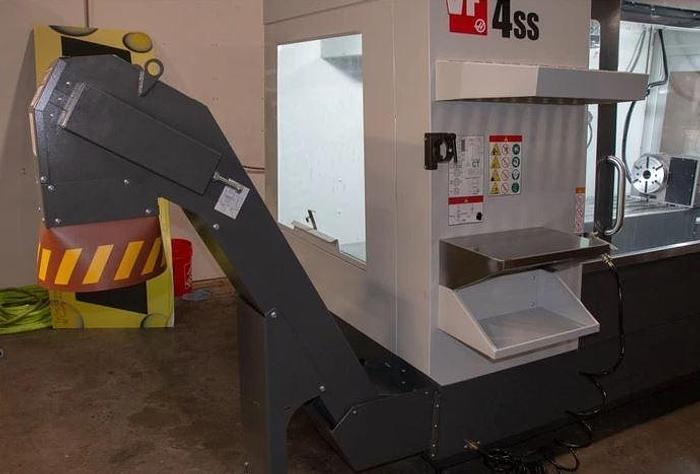

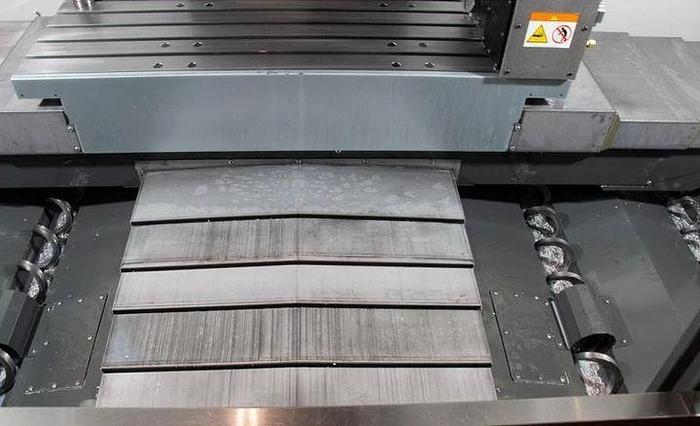

Dual Auger Style Chip Conveyor
Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros

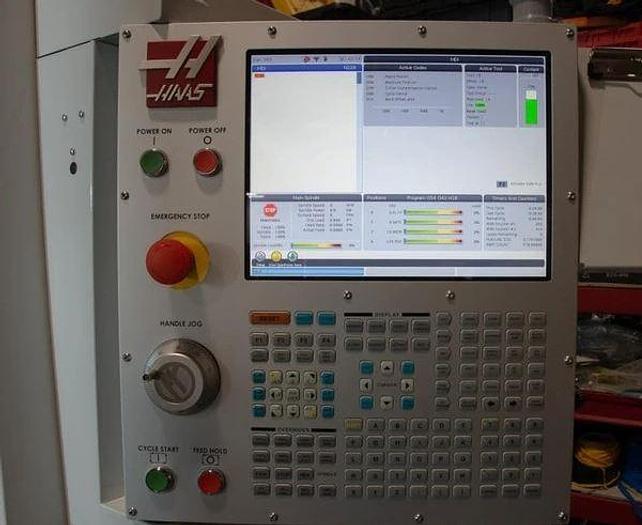

Haas Intuitive Programming System
Rigid Tapping
Compensation Tables
Dynamic Work Offsets
Tool Center Point Control
1 GB Programming Memory
VPS Editing
Media Display

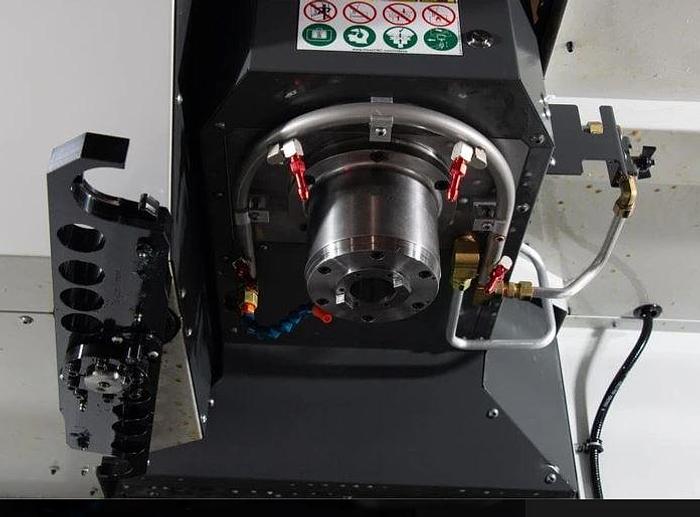

Inline Direct Drive 12,000 RPM Spindle
Wireless Networking
USB Port Interface
RS 232C Port Interface for DNC Operation

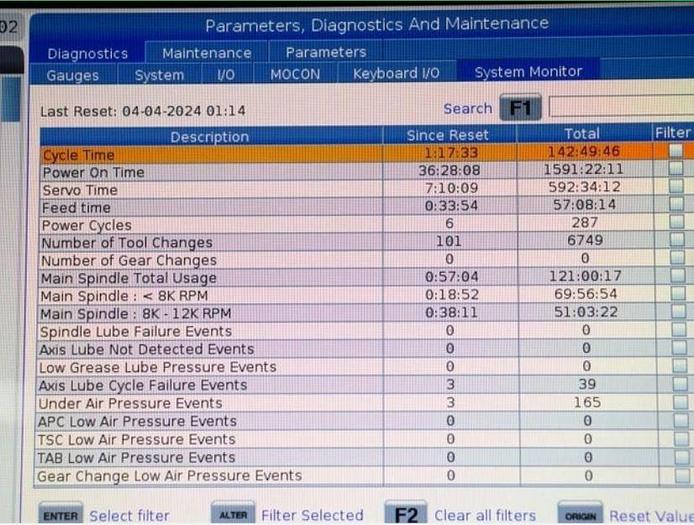

**ONLY 36 POWER ON HOURS**
**JUST 7 SERVO TIME HOURS !!**
**LESS THAN 1 HOUR OF FEED CUT TIME**
Specifications
| Manufacturer | Haas |
| Model | VF-4SS |
| Year | 2023 |
| Condition | Used |
| Stock Number | 119547 |

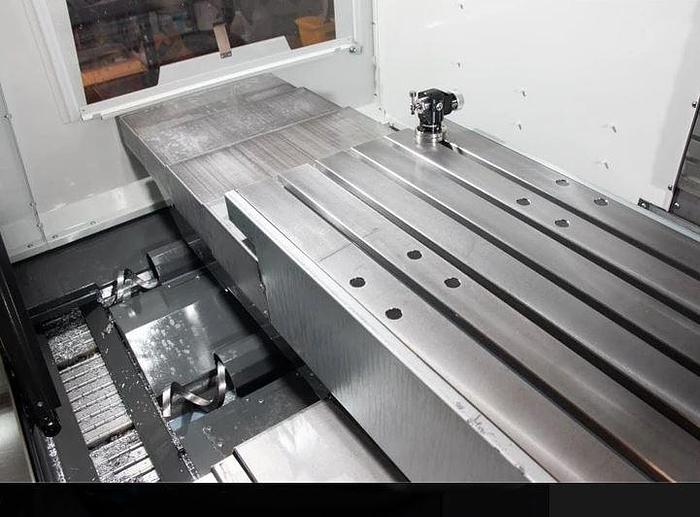

| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT 40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Air Requirement | 4 scfm @100 psi |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
