2011 Haas ST-10
2011 Haas ST-10
Contact us for price
Location:California
orCall (863) 439-6066
Description

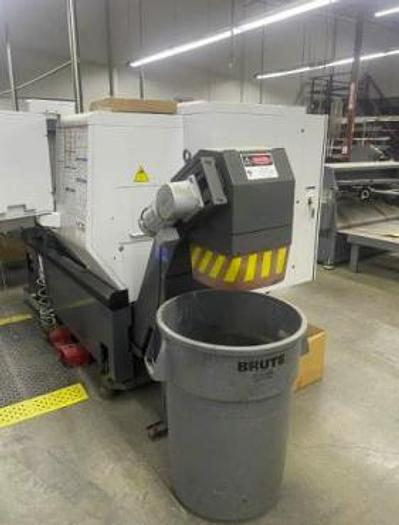

Chip Conveyor
Parts Catcher
Kitagawa B-206 6" 3 Jaw Hydraulic Chuck
Tailstock - Programmable
Tool Presetter
15" LCD Color Monitor
Memory Lock Keyswitch
USB Port Interface
RS 232 Port Interface
All Available Manuals
**Only 718 Cut Time Hours**
Specifications
| Manufacturer | Haas |
| Model | ST-10 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119551 |
| Machine Control | Haas 32 BIT |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5 / 2.31" / 1.75" |
| Spindle Motor | 15 HP |
| Spindle Speeds | 0 - 6,000 rpm |
| Number of Turret Positions | 12 Bolt on Style |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92"x55"x69" |
| Machine Weight | 6,420 lbs |
