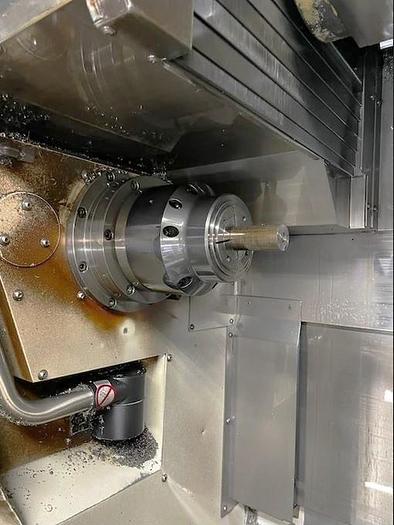

2008 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe

2008 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe

$89,950 (USD)

Location:Illinois

orCall (863) 439-6066

Description

Full C Axis Spindle Rotation - Both Spindles

Live Milling/Drilling Capability - Both Turrets Y Axis Capability on Upper Turret

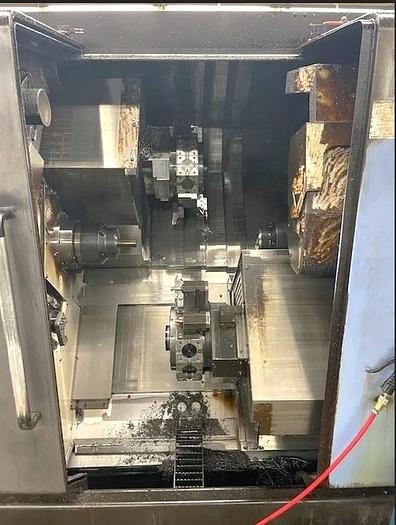

Twin Turret Design with Upper and Lower Turrets

Dual Spindle Design

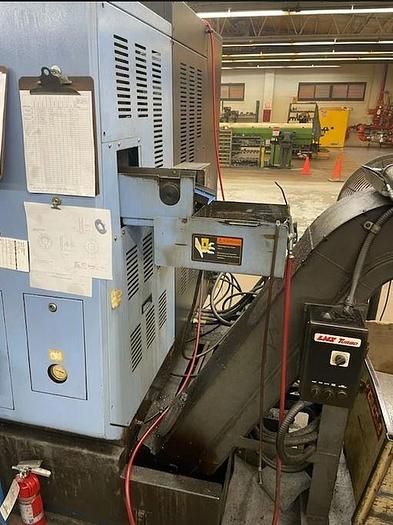

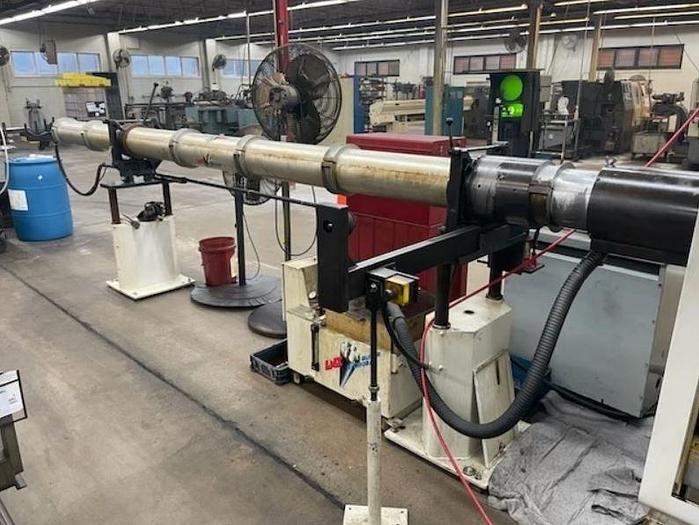

LNS Gatlin Style Barfeed System

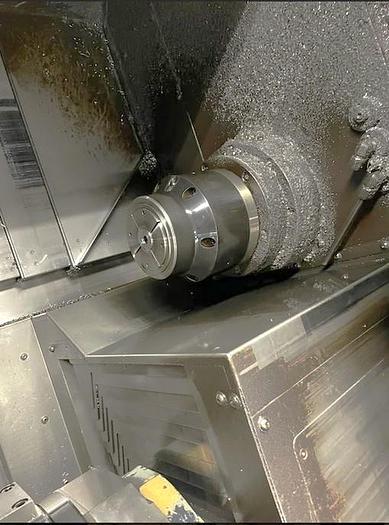

(2) Collet Chucks on both Spindles

Tool Presetter

Parts Catcher

Parts Exit Conveyor

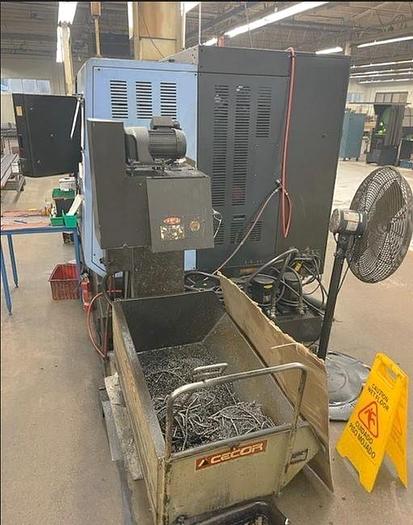

Chip Conveyor

Ethernet Interface

PCMCIA Card Interface RS 232 Port Interface

3 Color Machine Status Condition Lights

Boxed Ways

Coolant Tank with Pump All Available Manuals

All Available Live Holders

All Available Static Holders

Wired 200/220V Electrics

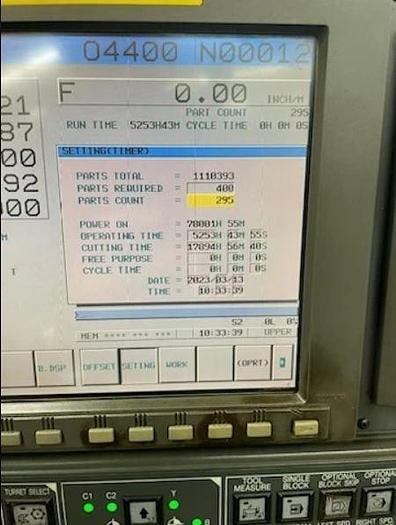

**Cutting Hours at 17,894 at time of last photo**

Show All

Specifications

ManufacturerDoosan
ModelPuma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe
Year2008
ConditionUsed
Stock Number119552

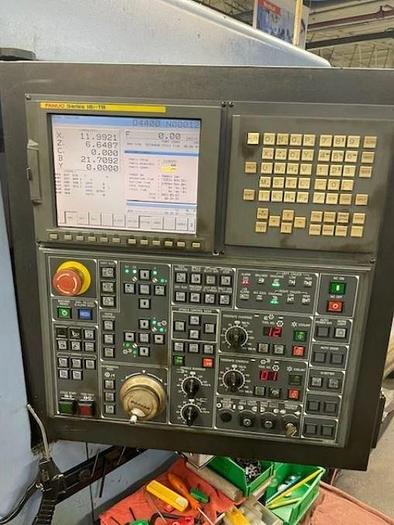

ControlFanuc 18i-TB Control
Chuck SizeCollet Chucks on both spindles
Maximum Swing over Bed9.05"
Maximum Cutting Diameter9.05"
Maximum Machining Length9.1"
Distance Between Spindles38.582"
Maximum Bar Capacity2.625"
X1-Axis Travel / X2-Axis Travel6.5" / 7.5"
Y-Axis Travel3.93"
Z1-Axis Travel / Z2-Axis Travel31.5" / 28.3"
C Axis Spindle Rotation0.001 Degrees - both Spindles
A-Axis Travel - Subspindle30.3"
Spindle Nose / Spindle BoreA2-6" / 3.0" - both Spindles
Main & Subspindle Speeds5,000 RPM
Spindle Motor - Both Spindles30 HP
Rotary Tool Speed / Rotary Motor5,000 RPM / 7.5 HP
Number of Turret Positions2 x 24 Station Turrets - Each
Rapid Traverse Rates X / Y / Z787 IPM / 295 IPM / 984 IPM
Machine Dimensions154" x 82" x 98"
Machine Weight17,196 lbs.
