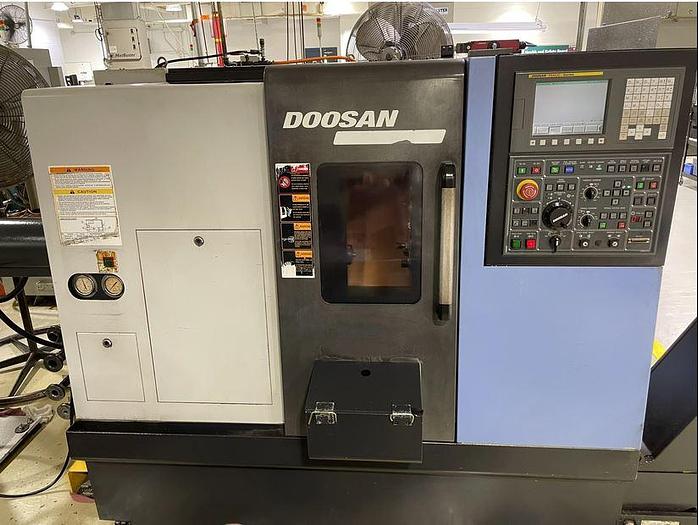

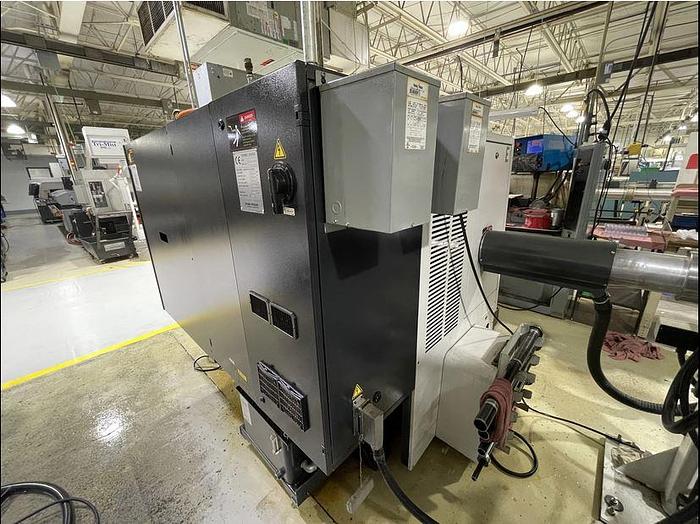

2010 Doosan Lynx 220A with Barfeed
2010 Doosan Lynx 220A with Barfeed
$31,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description

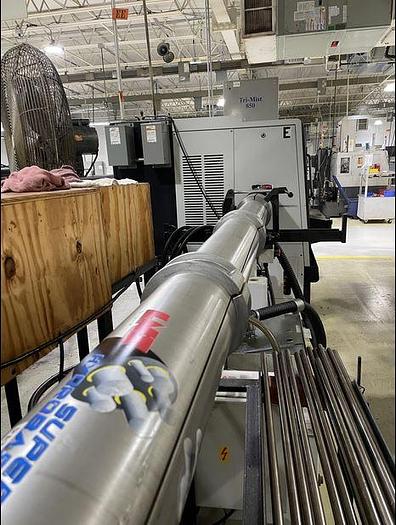

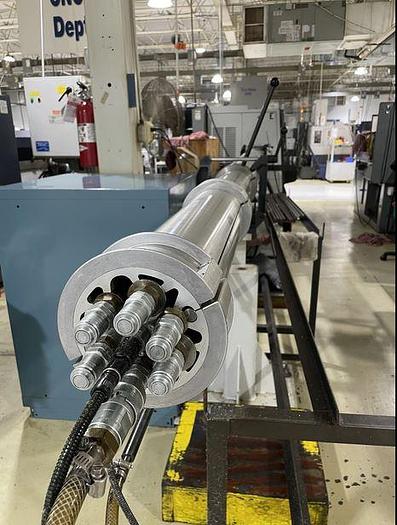

LNS Hydrobar 6 Tube Gatlin Style Barfeeder
Parts Catcher

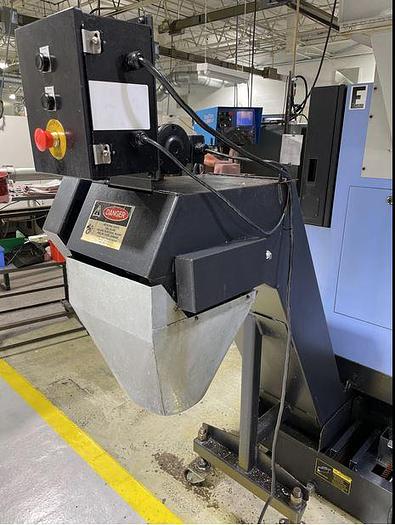

Chip Conveyor
Tailstock
Tool Presetter
6" 3 Jaw Hydraulic Chuck
TriMist 850 Mist Collector
Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220A with Barfeed |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119555 |
| Machine Control | Fanuc i Series Control |
| Chuck size | 6.5" Hydraulic Chuck |
| Maximum swing over bed / carriage | 20.08" / 11.42" |
| Maximum turning diameter | 12.7" |
| Maximum turning length | 12.7" |
| Maximum bar capacity | 1.81" |
| X-axis travel | 6.89" |
| Z-axis travel | 13" |
| Spindle nose / spindle bore | A2-5" / 2.1" |
| Spindle speed | 6,000 RPM |
| Spindle motor | 15 HP |

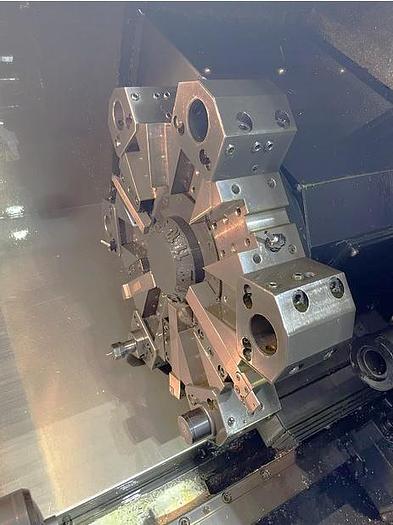

| Turret type | 12 Position Turret |
| Rapid traverse rates x, z | 1400 IPM |
| Tailstock quill dia. / center | 2.6" / MT #4 |
| Tailstock quill stroke | 3.14" |
| Machine dimensions lxwxh | 92" x 63" x 65" |
| Machine weight | 7,200 lbs |
