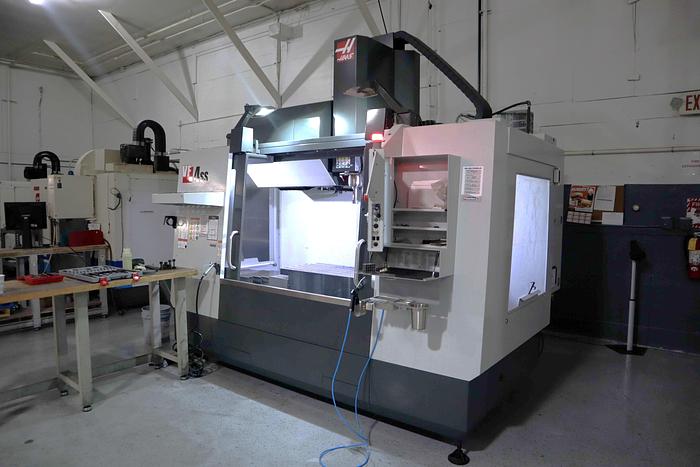

2021 Haas VF4SS
2021 Haas VF4SS
$89,950 (USD)
Location:Michigan
Description

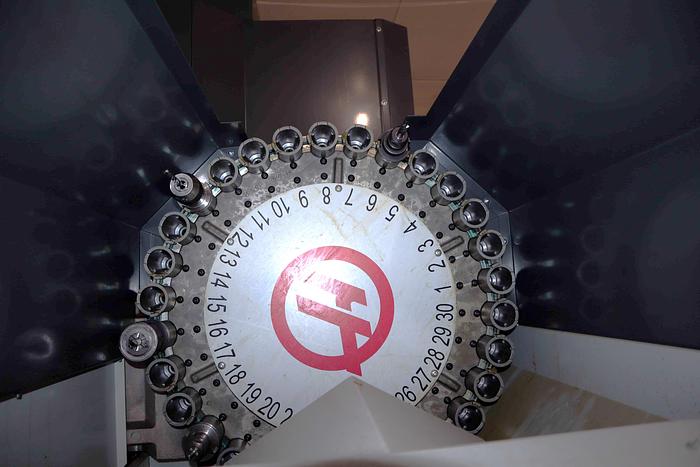

30+1 Position Side Mounted Tool Changer
15,000 RPM Spindle Option

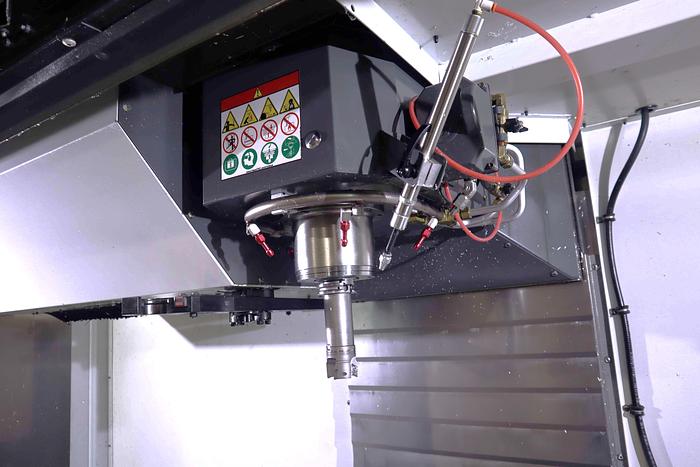

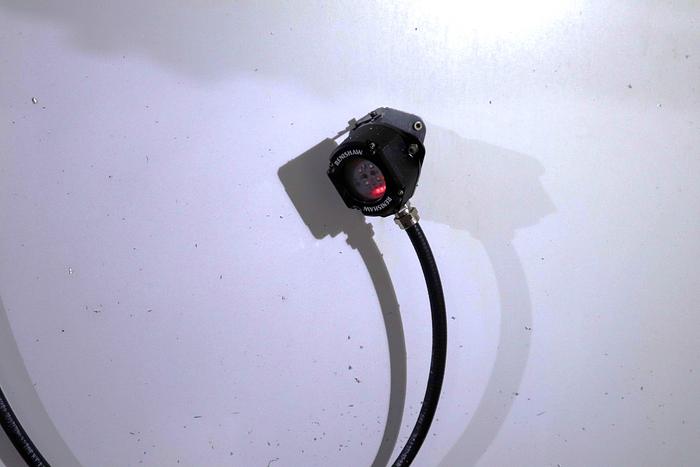

Haas Wireless Intuitive Probing Package - Renishaw, (spindle mounted probe needs stylus replaced)
High Pressure Coolant Through the Spindle - 1000 PSI

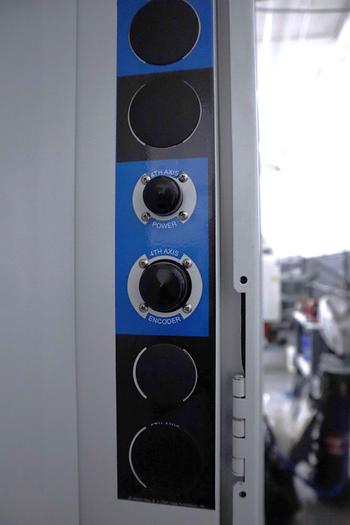

4th Axis Drive & Wiring

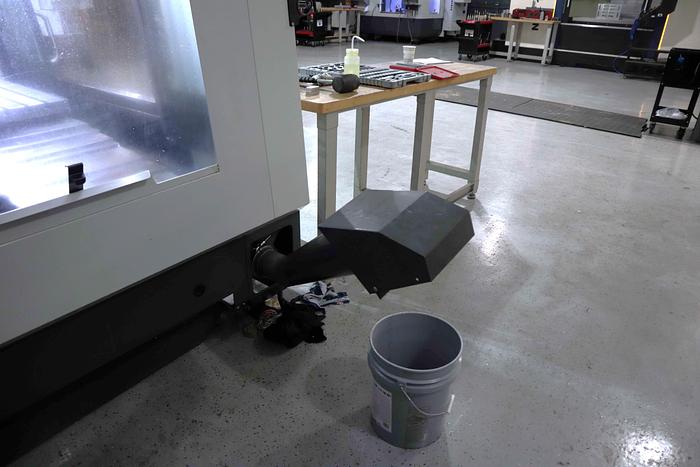

Auger Style Chip Conveyor
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Programmable Coolant Nozzle
Auto Air Gun
High Intensity Lighting

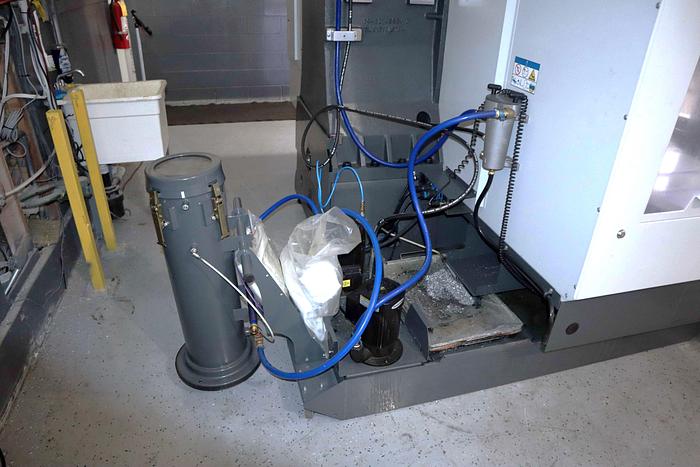

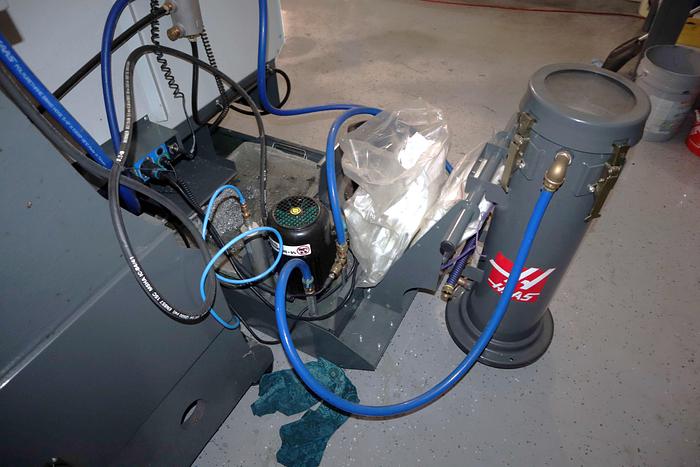

Auxiliary Coolant Filter System
Coolant Tank Oil Skimmer System
Dynamic Work Offsets and Tool Center Point Control
Rigid Tapping
Wireless Networking
Compensation Tables
Coolant Tank with Pump
Variable Flow Coolant Pump

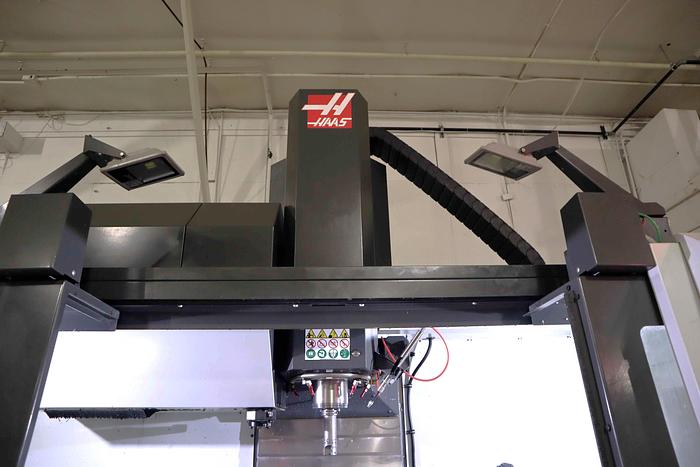

Inline Direct Drive 12,000 RPM Spindle
WiFi Connection
USB Port Interface
RS 232C Port Interface for DNC Operation

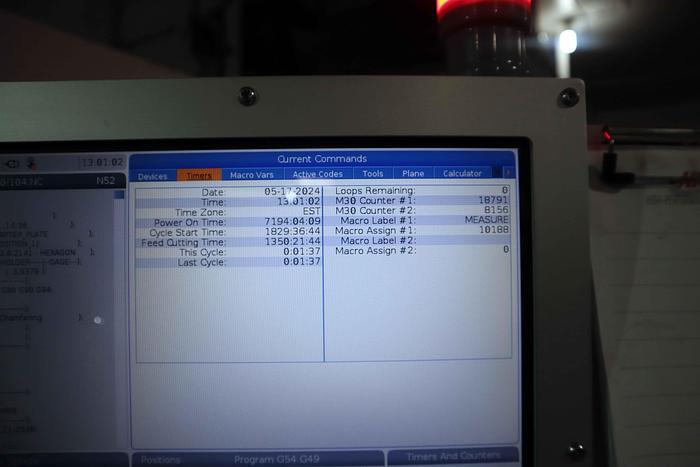

**Cycle Start Hours 1,829**
**Feed Cutting Hours 1,350**
**Price New as equipped today at $127,675, regular pricing at $136,845**
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119556 |

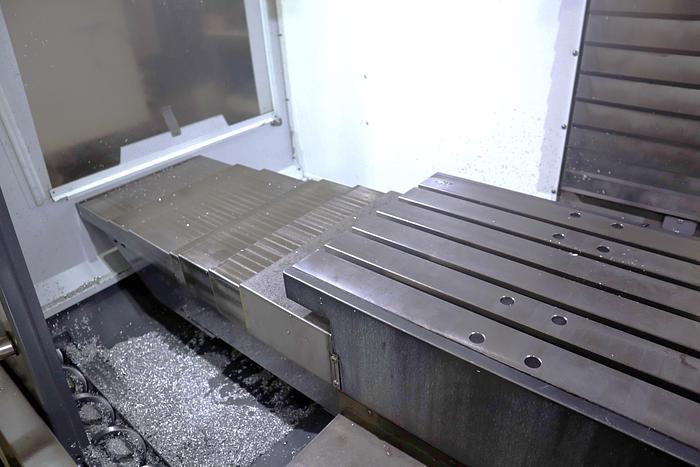

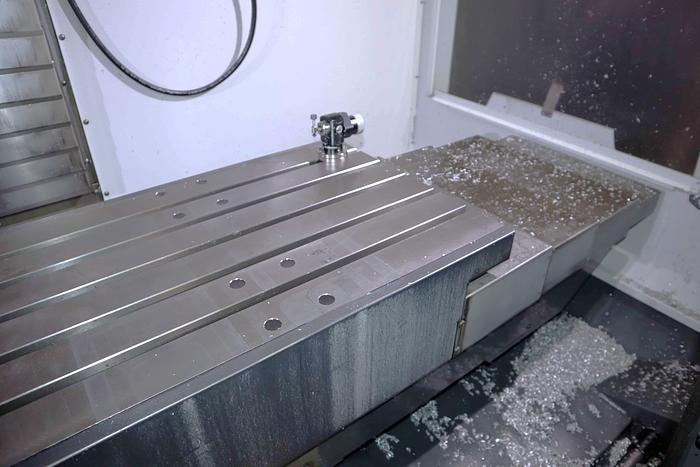

| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
