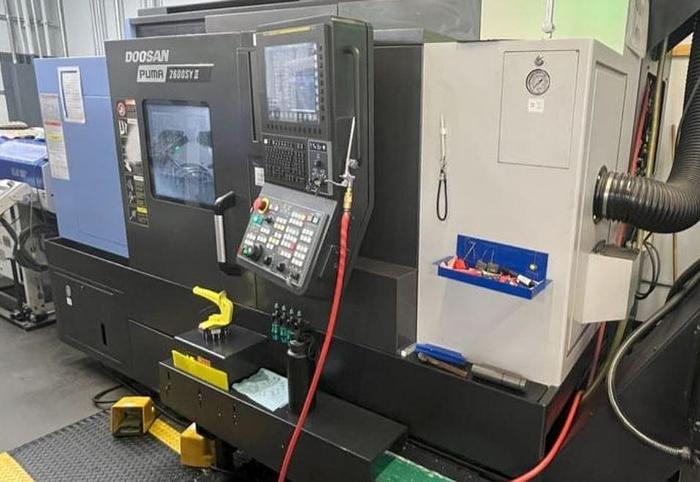

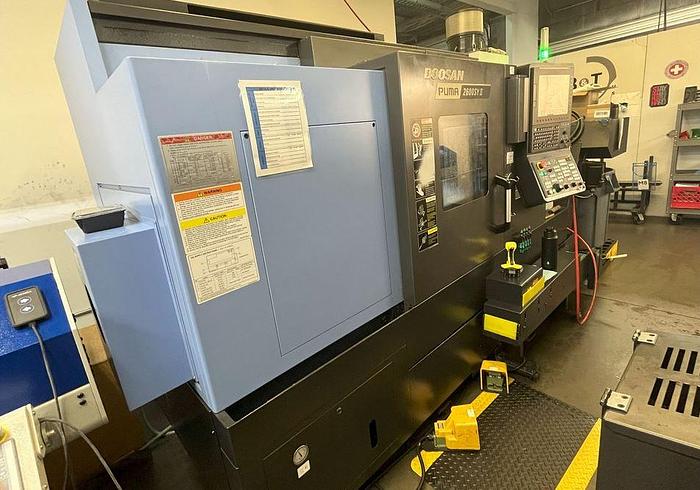

2022 Doosan Puma 2600SY II

2022 Doosan Puma 2600SY II

$154,900 (USD)

Location:Florida

orCall (863) 439-6066

Description

Full C Axis Spindle Rotation - Both

Live Milling/Drilling Capability

Subspindle Y Axis Capability

Barfeed Interface

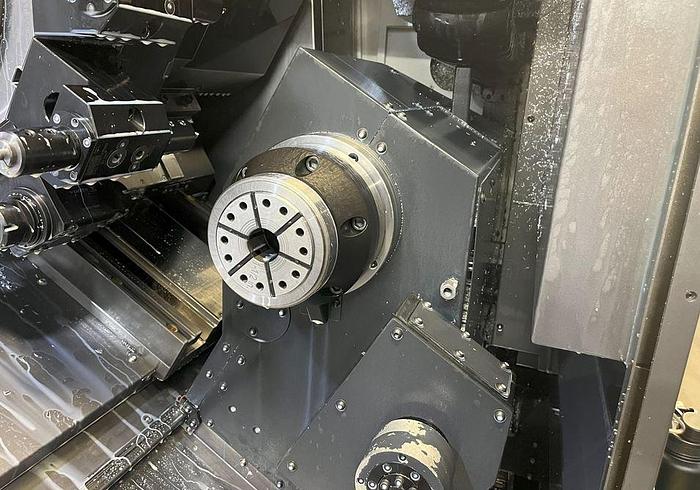

10" 3 Jaw Hydraulic Chuck on Main Spindle

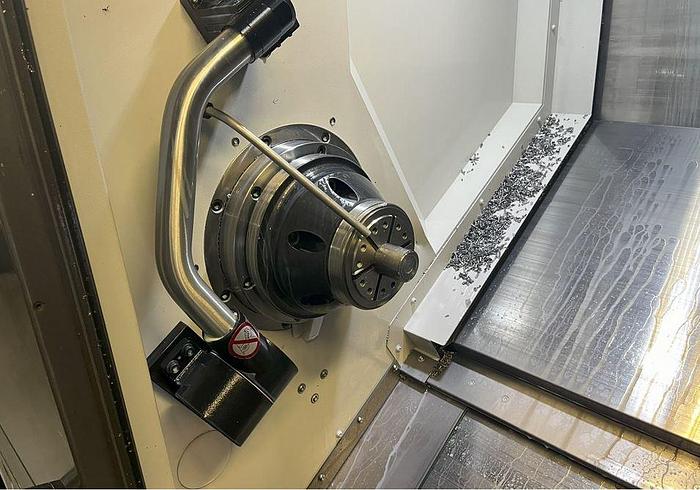

8" 3 Jaw Hydraulic Chuck on Subspindle

Tool Presetter

Chip Conveyor

Parts Catcher

Parts Exit Conveyor

PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways (1) X-Axis Radial Live Holders

(1) Z-Axis Axial Live Holders

**Additional Live Holders Available For Extra Cost**

Assortment of Static Tool Holders


**Mist Collector Seen In Photos, Does NOT Go With Machine**

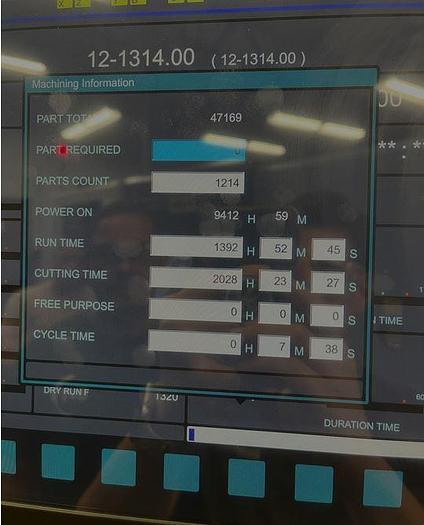

**Cutting Hours - 2,028 Hours**


**Estimated replacement cost as equipped, $230,000 plus**

Show All

Specifications

ManufacturerDoosan
ModelPuma 2600SY II
Year2022
ConditionUsed
Stock Number119566

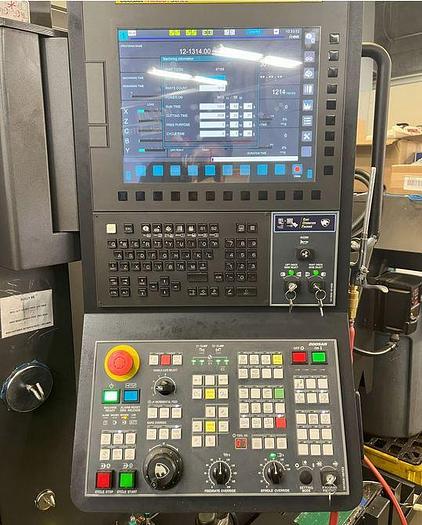

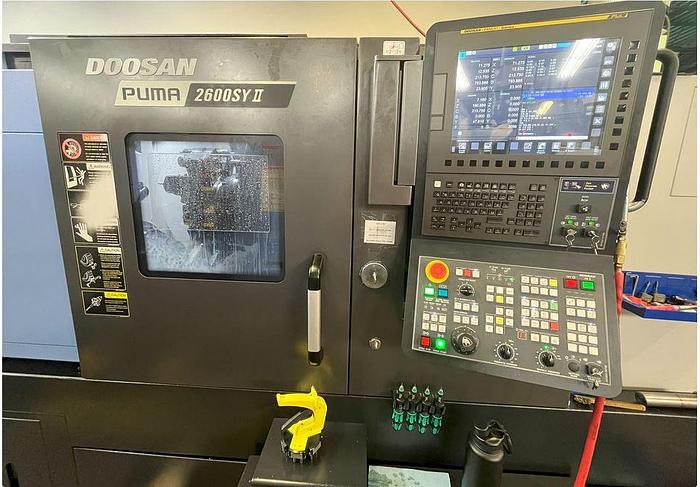

ControlFanuc i Series Control
Chuck Size10" 3-Jaw Main Spindle / 8" 3-Jaw Subspindle
Maximum Swing over Bed30.7"
Maximum Cutting Diameter14.8"
Maximum Machining Length29.9"
Maximum Bar Capacity3" Main Spindle / 2" Subspindle
X-Axis Travel10.2"
Y-Axis Travel4.13"
Z-Axis Travel32.7"
C Axis Spindle Rotation - Both.001 Degree
Spindle Nose / Spindle BoreA2-8" Main Spindle / A2-5" Subspindle / 3.6" Main Spindle Bore / 2.4" Subspindle Bore
Spindle Speeds - Main4,000 RPM
Spindle Motor - Main30 HP
Subspindle Speed / Motor6,000 rpm / 20 HP
Rotary Tool Speed / Rotary Motor5,000 RPM / 10 HP

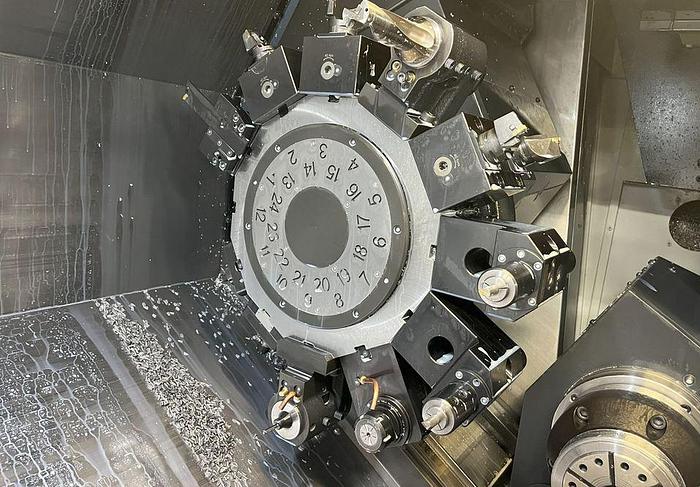

Number of Turret Positions12 Station Turret - BMT 65
Rapid Traverse Rates X, Z / Y1181 IPM / 394 IPM
Machine Dimensions172" x 85" x 90"
Machine Weight16,100 lbs.
