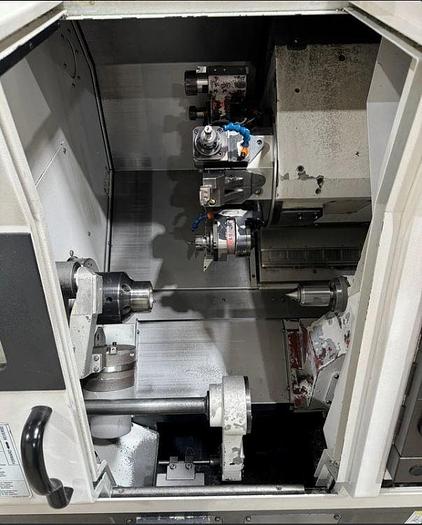

2007 Mazak Nexus QTN 100-II MY
No longer available
2007 Mazak Nexus QTN 100-II MY
Location:Illinois
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Y Axis Capability
ATS Collet Chuck

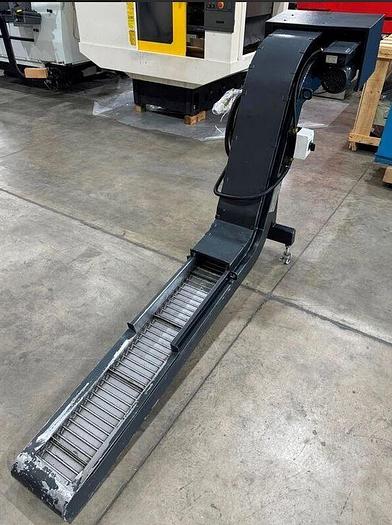

Chip Conveyor Parts Catcher Automatic Tool Eye
Tailstock
Background Tool Path Check
Milling Spindle Synchronous Tapping
Automatic Chuck Jaws Open/Close
Chuck Air Blast Complete Coolant System w/ Tank & Pump
Coolant Filtration System
Memory Card Interface
Network Interface
3.5" Floppy Disk Drive Interface RS 232 Port Interface Multi Tap Transformer All Available Tooling
Chuck Foot Pedal All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 100-II MY |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119570 |

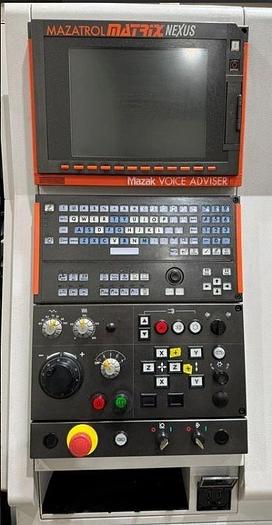

| Control | Mazatrol Matrix Nexus |
| Chuck Size | Collet Chuck / Collet Chuck |
| Maximum Swing | 21.6" |
| Maximum Cutting Diameter | 11" |
| Maximum Cutting Length | 13.15" |
| Maximum Bar Capacity | 1.625" |
| X-Axis Travel | 7" |
| Y-Axis Travel | +/- 2" (4" total) |
| Z-Axis Travel | 15" |
| Spindle Nose / Spindle Bore | A2-5" / 2.4" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Live Tooling Speed / Live Tooling Motor | 4,500 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X / Z | 1181 IPM / 1299 IPM |
| Machine Dimensions | 92" x 65" x 76" machine only |
| Machine Weight | 8,600 lbs. |
