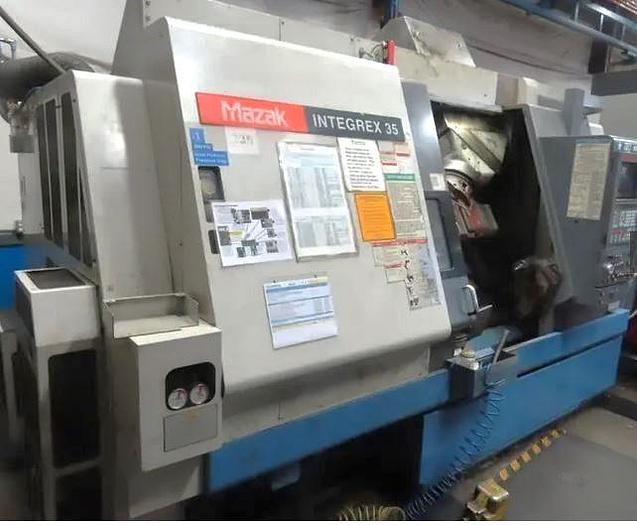

1998 Mazak Integrex 35Y/1500 Mill Turn Lathe w/ Tooling

No longer available

1998 Mazak Integrex 35Y/1500 Mill Turn Lathe w/ Tooling

Location:Oregon

Description

Full C-Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

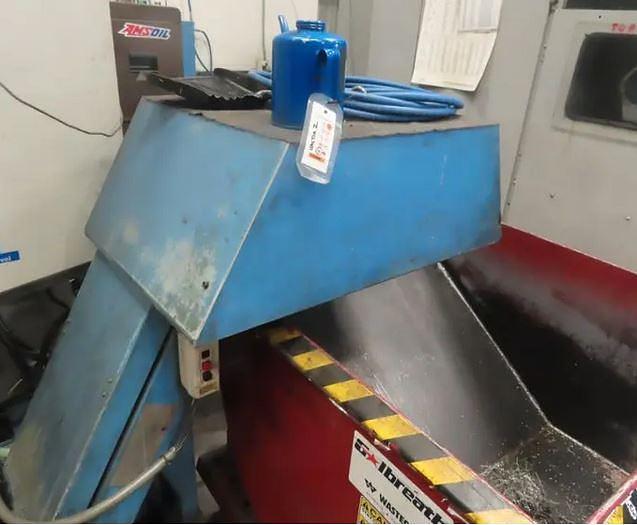

Chip Conveyor

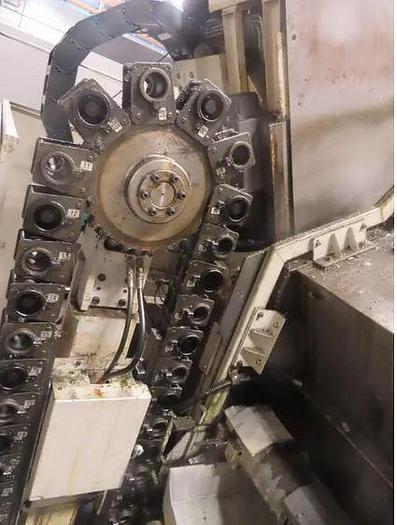

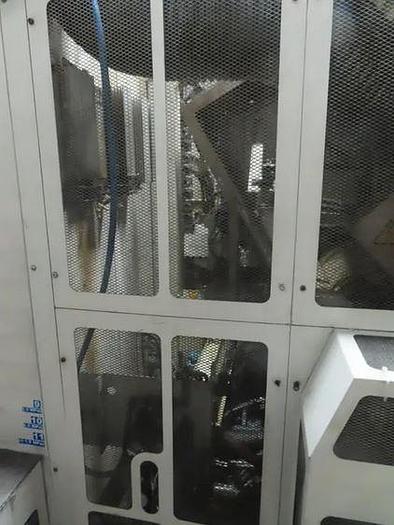

40 Station Tool Changer (20 Milling/20 Turning)

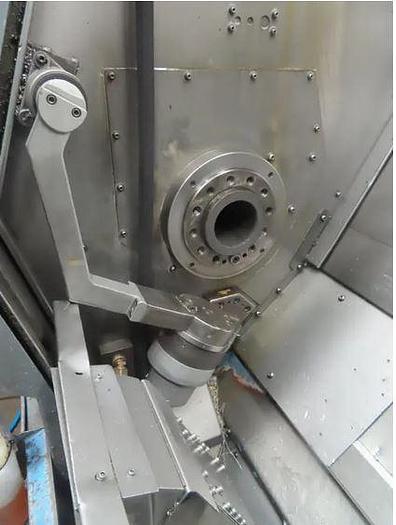

Automatic Tool Eye

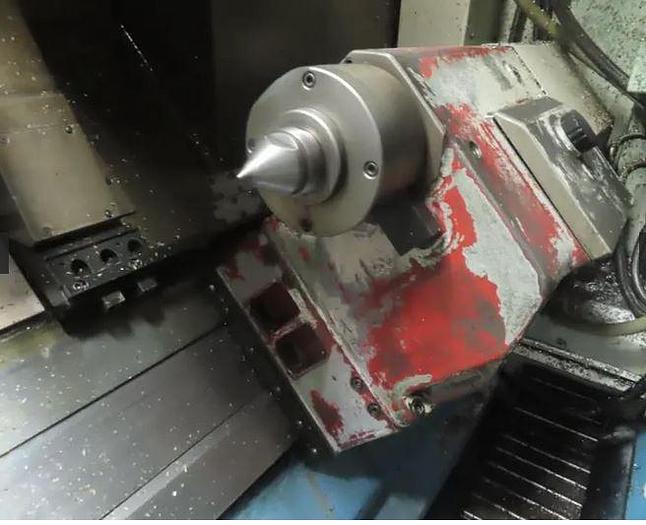

Tailstock with Hydraulic Quill

Hydraulic Actuator - No Chuck Included

Multi Tap Transformer (230V - 460V)

EIA/ISO Input Function

Coolant Through the Mill Head

Tool Life Monitoring

Complete Coolant System with Tank & Pump

RS-232C Port for DNC Interface

All Available Manuals

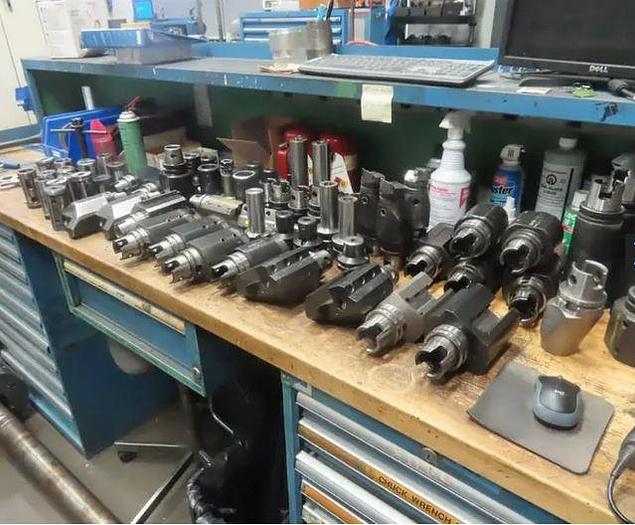

Approximately (70) Pieces of Tooling - Both Live and Static

Some Spare Parts


**Total Cutting Hours 9,325**


**1 Owner Machine Since New, Very Good Condition for its Age**

Show All

Specifications

ManufacturerMazak
ModelIntegrex 35Y/1500
Year1998
ConditionUsed
Stock Number119580

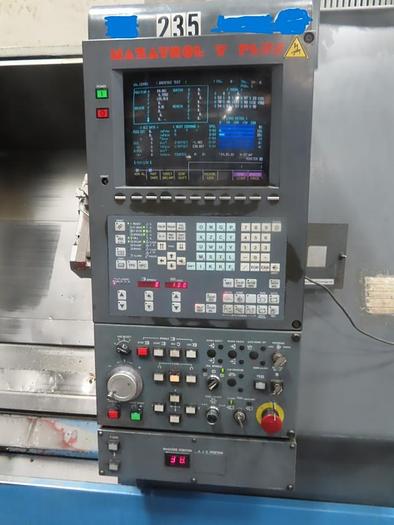

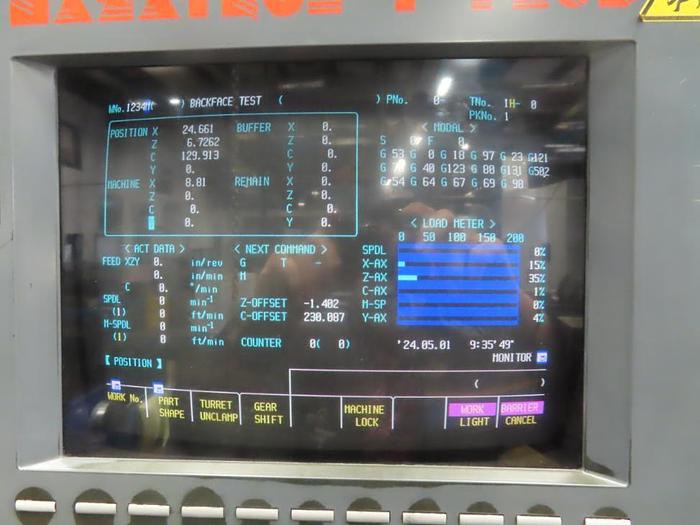

Machine ControlMazatrol T-Plus Control
Maximum Swing22.5"
Maximum Swing Over Carriage8.6" - 18.5" Depending on workpiece length
Maximum Turning Diameter22.5"
Maximum Cutting Length61.1"
X-Axis Travel17.75"
Y-Axis Travel+/- 3.5"
Z-Axis Travel60.2"
C-Axis Rotation0.001 Degree
Spindle Nose / Bore / Bar CapacityA2-8" / 3.46" / 3.03"
Spindle Speed35 - 3,000 RPM Stepless
Spindle Motor40 HP
Milling Spindle Speed15- 6,000 RPM
Milling Spindle Motor10 HP
Number of Turret Positions2 Station Turret
Tool Magazine Capacity40 Position Tool Changer - KM63 and CAT40
Rapid Traverse Rates (X, Y, Z)1181 IPM, 590 IPM, 1181 IPM
Tailstock Quill Diameter / Center3.94" / MT #5
Tailstock Body Travel / Quill Travel55.5" / 5.12"
Machine Dimensions LxWxH201" x 90" x 119"
Machine Weight15,400 lbs
