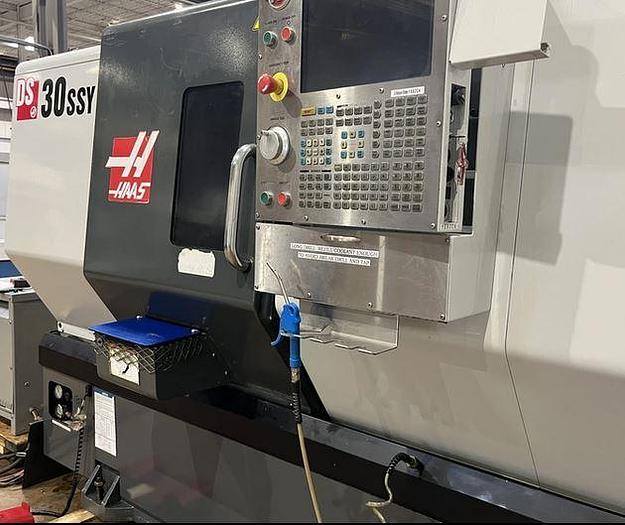

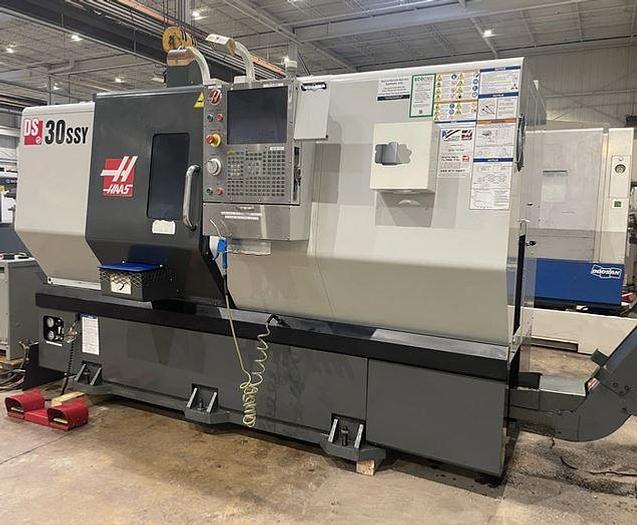

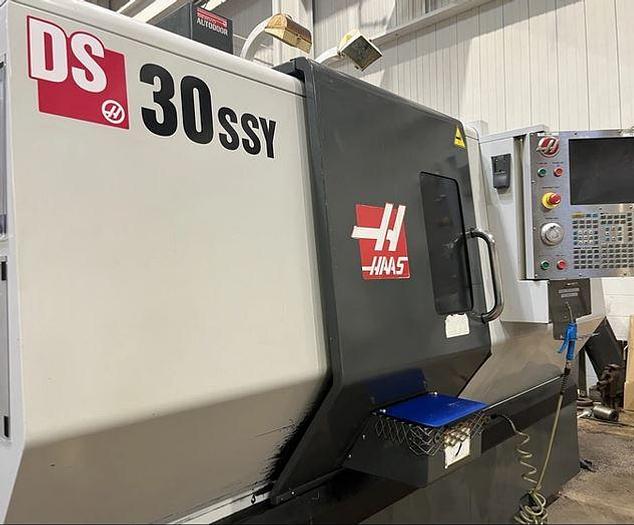

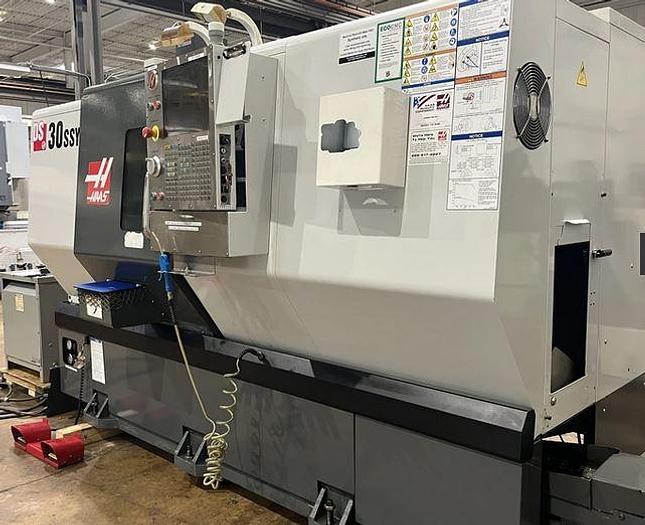

2011 Haas DS-30SSY
No longer available
2011 Haas DS-30SSY
$64,500 (USD)
Location:Illinois
Description

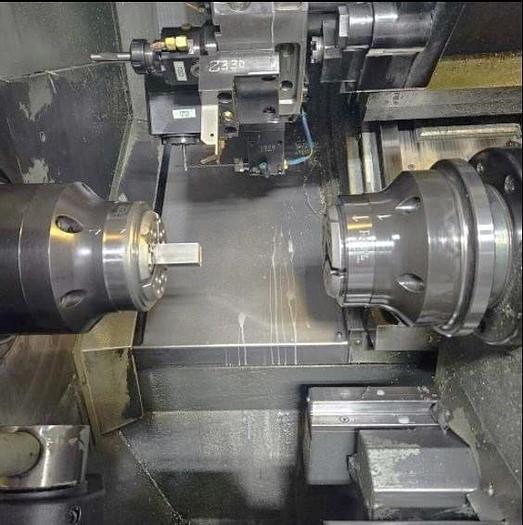

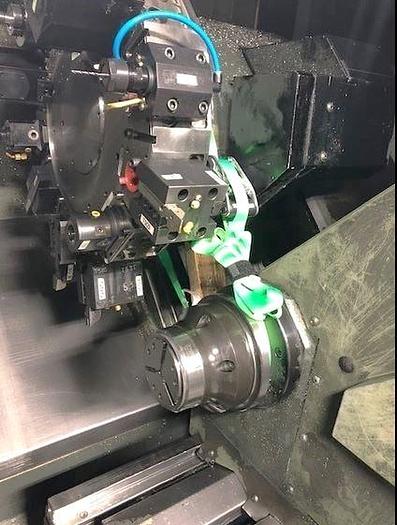

Subspindle Y Axis Capability Full C Axis Spindle Rotation Live Milling / Drilling Capable Collet Chuck on Main Spindle Collet Chuck on Subspindle 300 PSI Hi-Pressure Coolant System Auxilary Coolant Filter System Auto Jet Air Blast Servo Auto Door Tool Presetter Parts Catcher Chip Conveyor USB Port Interface RS 232 Port Interface Rigid Tapping Haas Intuitive Programming
Spindle Orientation Ethernet Interface 750 MB Memory VDI/BOT Hybrid Turret High Torque Live Tooling w/ C-Axis High Intensity Lighting
Wired 195-260V Electrics

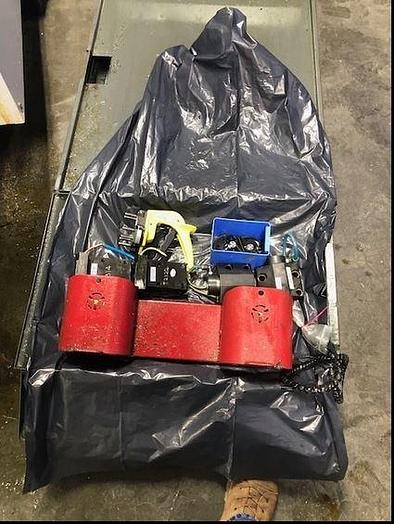

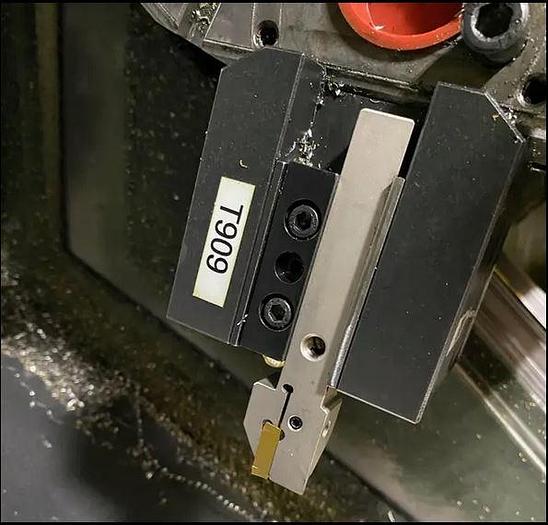

6 OD Turning Tools

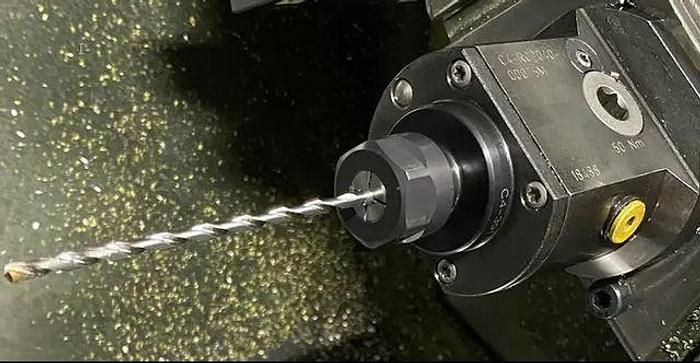

1 Axial Live Tool Holder

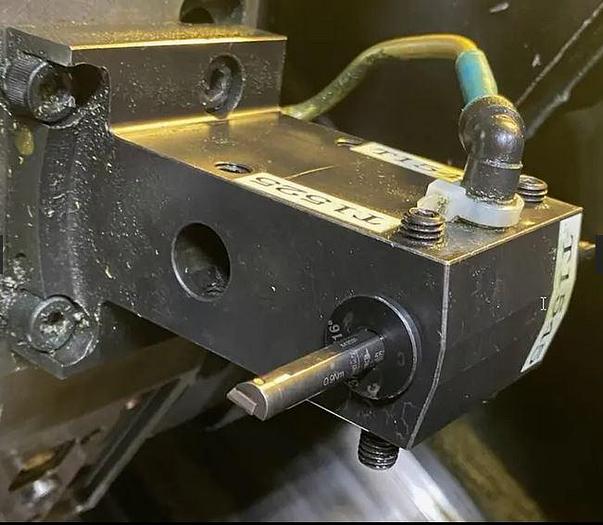

3 ID Turning Tools
3 ID Drilling Tools

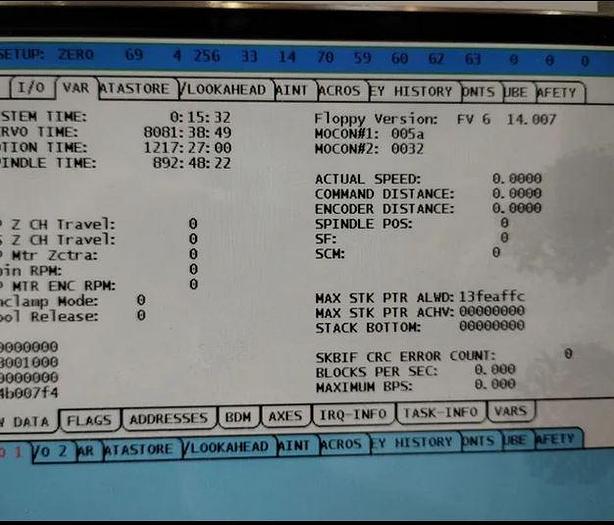

**Servo On Hours 8,081**

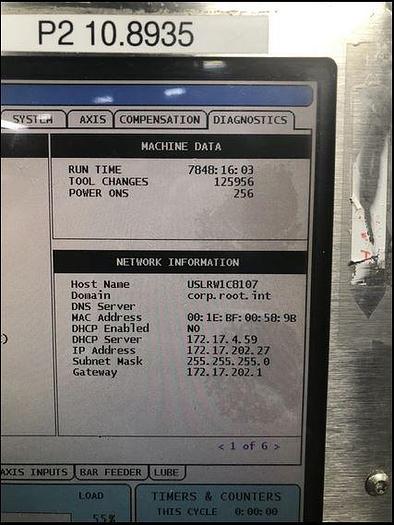

**Run Hours 7,848**
**Motion Hours 1,217**
**Spindle Hours 892**
Specifications
| Manufacturer | Haas |
| Model | DS-30SSY |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119581 |

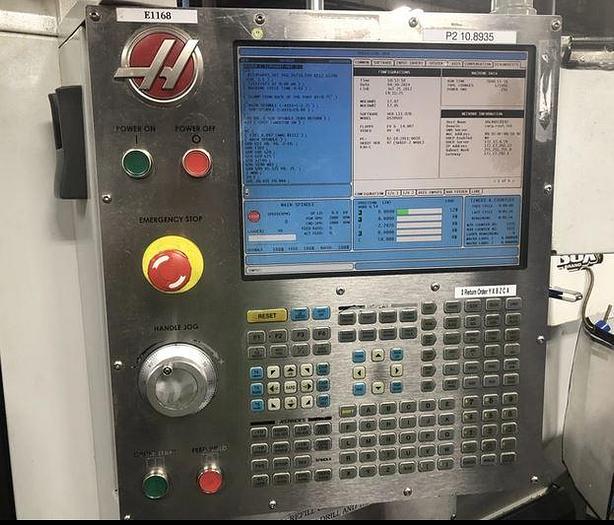

| Control | Haas CNC Control |
| Chuck Sizes Main / Subspindle | Collet Chuck / Collet Chuck |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Distance Between Spindles | 23" |
| Maximum Bar Capacity | 3.03" |
| X-axis travel | 12.5" |
| Z-Axis Travel | 23" |
| Y-Axis Travel | +/- 2.0" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,800 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Subspindle Bore | A2-5" / 2.44" |
| Subspindle Speed | 4,800 RPM |
| Subspindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5 HP |

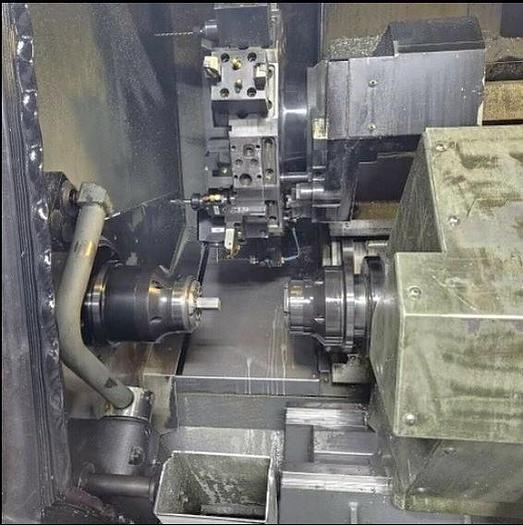

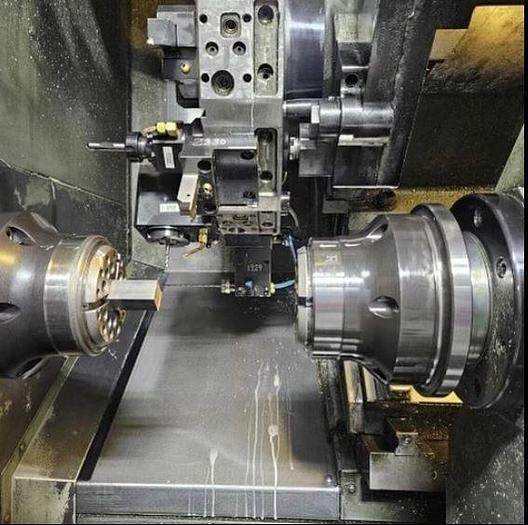

| Number of Turret Positions | 12 Station Turret - VDI/BOT |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Machine Dimensions | N/A |
| Machin e Weight | 14,600 lbs. |
