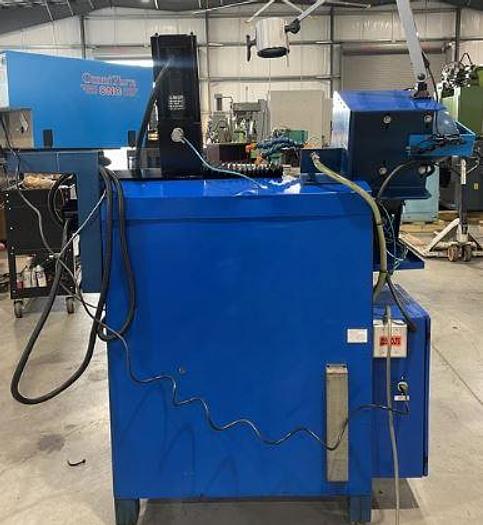

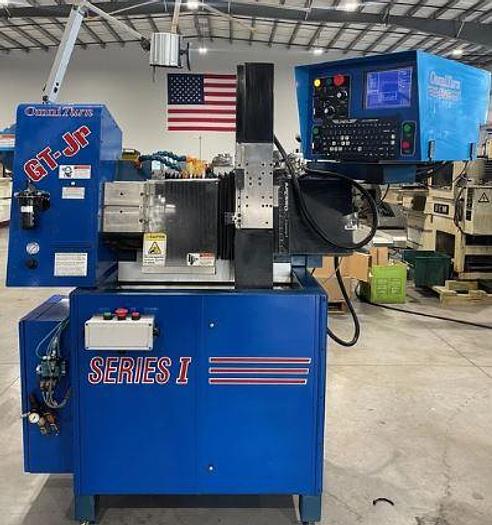

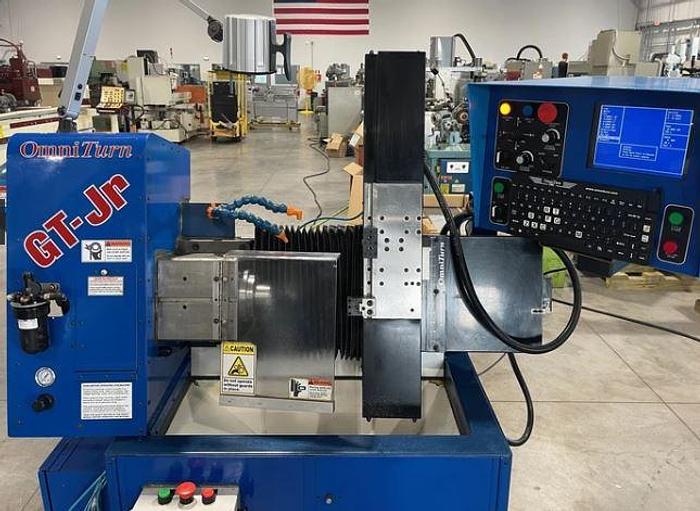

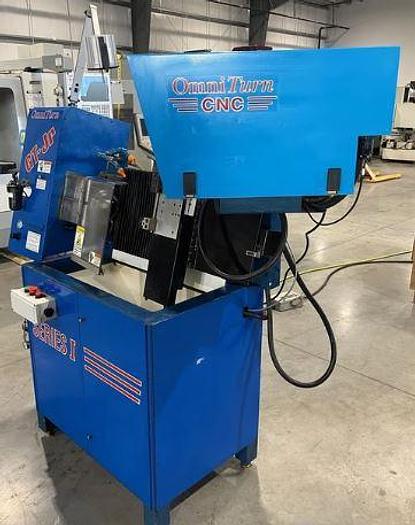

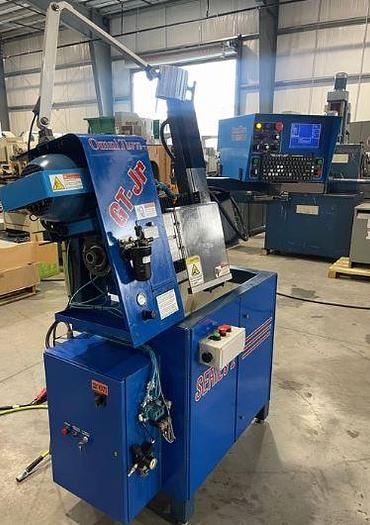

2015 Omniturn GT-75 JR Series I
2015 Omniturn GT-75 JR Series I
Contact us for price
Location:Florida
orCall (863) 439-6066
Description
Gang Style

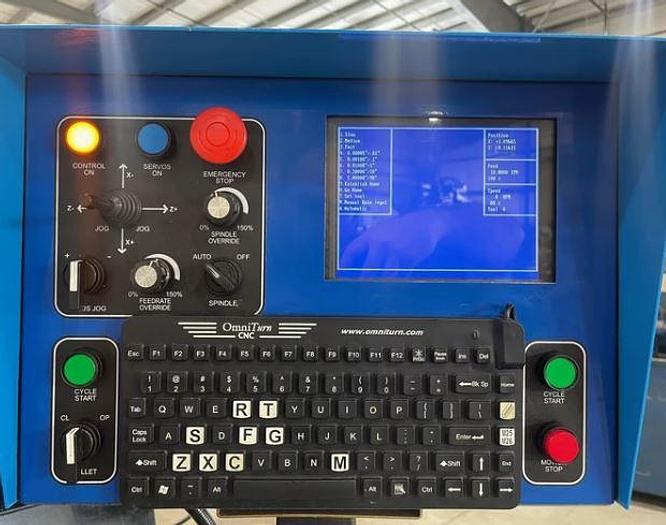

9" Monochrome CRT

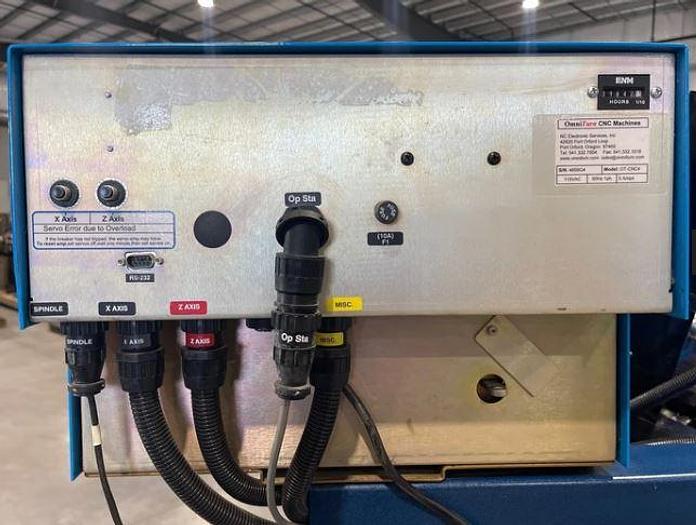

RS-232 Port
USB
C-Axis Option
Linear Guides

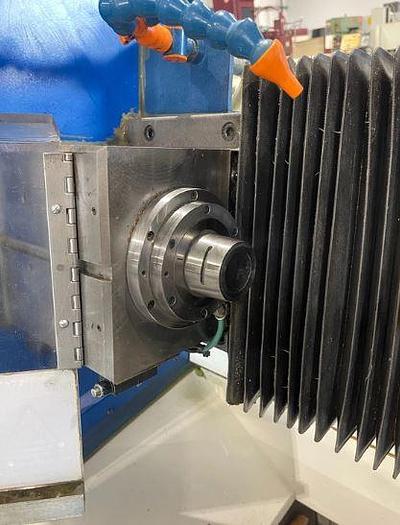

Pneumatic Collet Closer w/Regulator (M Function Controlled)
Spindle Encoder for Threading and IPR Programming

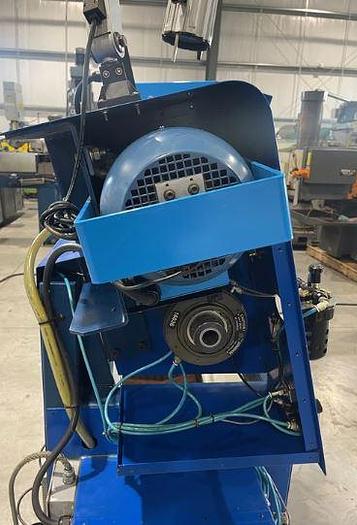

AC Inverter Drive for Spindle
Coolant Block on Tool Slide
All Available Manuals
220V 3-Phase
**Only 1,842 Run Time Hours**
Specifications
| Manufacturer | Omniturn |
| Model | GT-75 JR Series I |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119586 |
| Control | Omniturn |
| Chuck Size | 5C Collet Nose |
| Maximum Cutting Diameter | 6" |
| C-Axis Rotation | .001 Degrees |
| X-Axis Travel | 12" |
| Z-Axis Travel | 9" |
| Spindle Nose / Bore / Bar Capacity | 5C w/4 Camlock / 1.125" / 1.06" |
| Spindle Speed | 4,000 rpm |
| Spindle Motor | 5 hp |
| Number of Tool Positions | Gang Style |

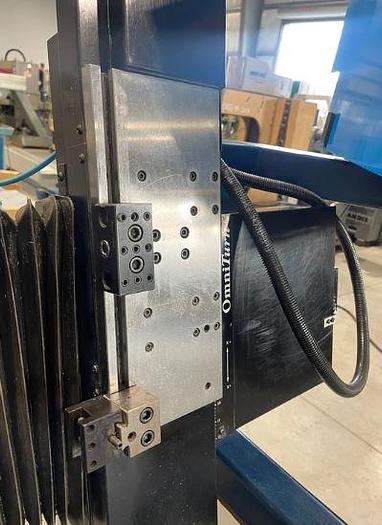

| Tooling Plate Size | 6"x14" |
| Threading | 240 tpi to .5 tpi |
| Rapid Traverse Rates | 300 ipm |
| Machine Dimensions LxWxH | 58"x36"x76" |
| Machine Weight | 1,650 lbs |
