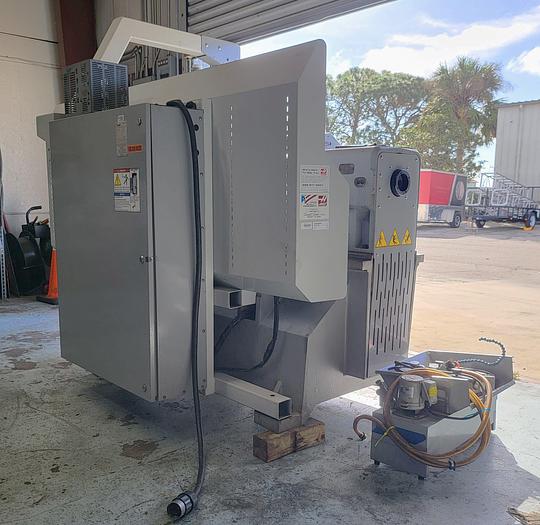

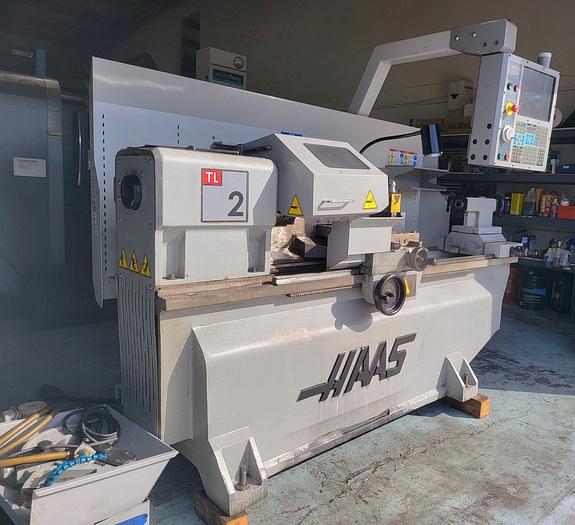

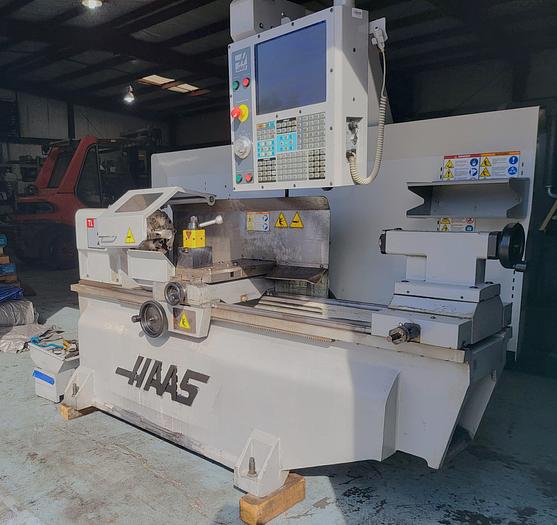

2008 Haas TL-2 Big Bore - 3" Bar Capacity !!
2008 Haas TL-2 Big Bore - 3" Bar Capacity !!
$19,950 (USD)
Location:Dundee, FL
Description

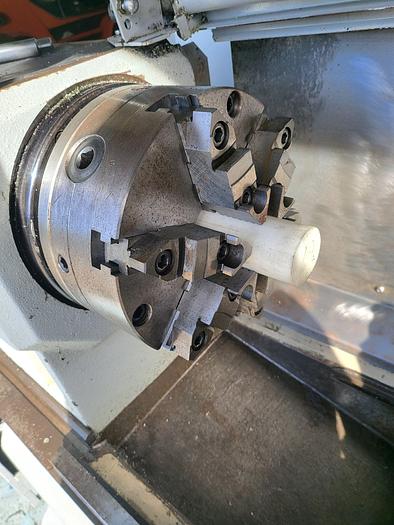

Bison 10" Set-Tru 6 Jaw Manual Scroll Chuck

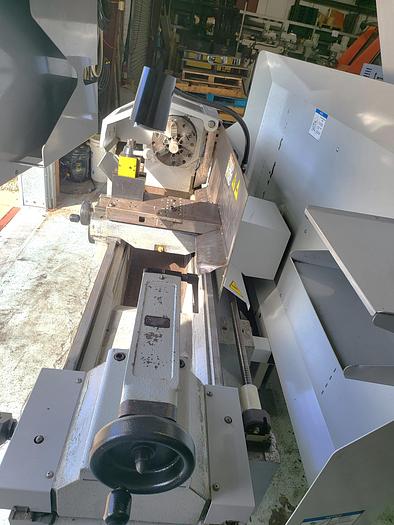

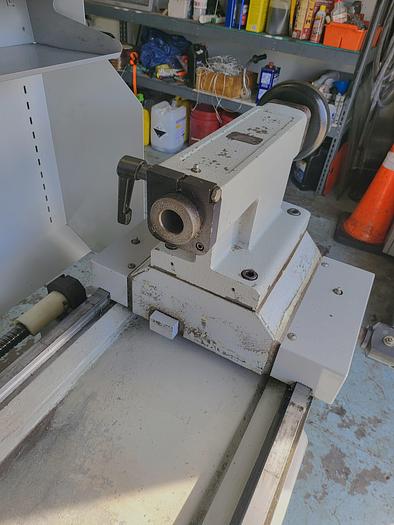

Tailstock - Manual Lock Down Type
Upgraded A2-6" Spindle Nose with 3" Bar Capacity

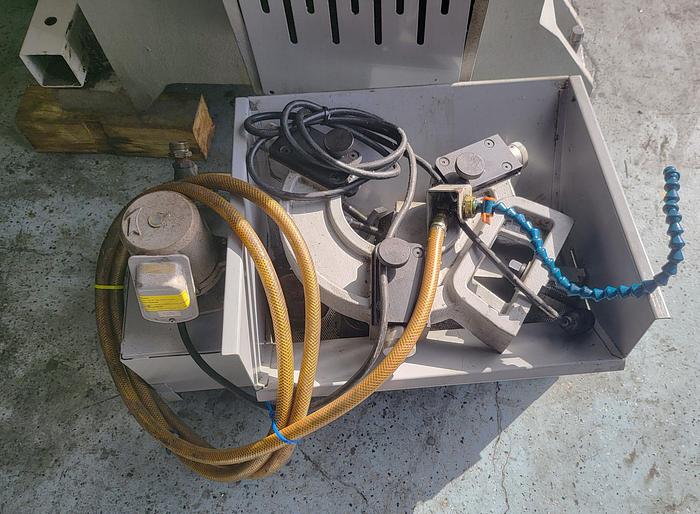

Haas 3 Point Roller Type Manual Steady Rest for up to 5" Diameter Shafts

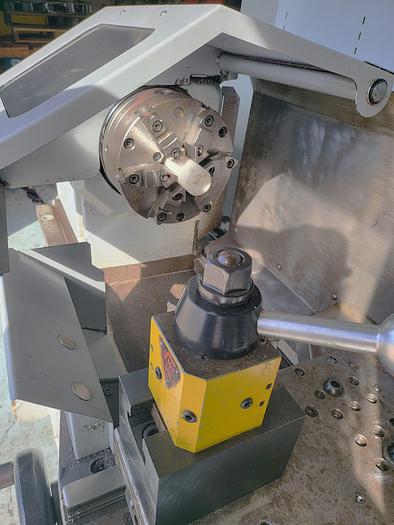

2 Position Dorian Quick Change Tool Post
Visual Quick Code Programming
Haas Intuitive Programming System
Manual Hand Wheels Coolant System with Tank & Pump (1/8 HP)
Early Power Failure Detection Module
Air Blow Gun
Work Light
1 MB Programming Memory Integral Chip-Flow Channel Flip Down Safety Enclosure Chuck Cover
15" LCD Type Monitor

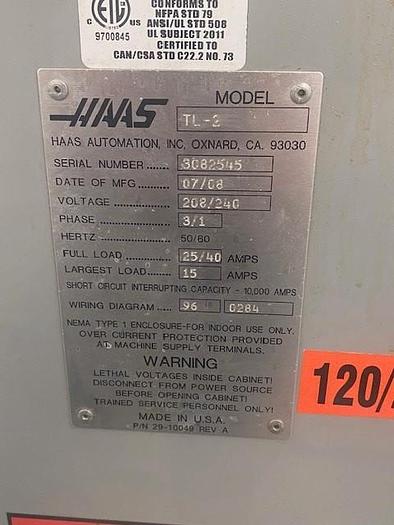

USB Port Interface RS 232 Port Interface Vector Drive Spindle Machine Can Run Either 240V Single Phase or 208V Three Phase Power
**Out of a Technical School, little use**

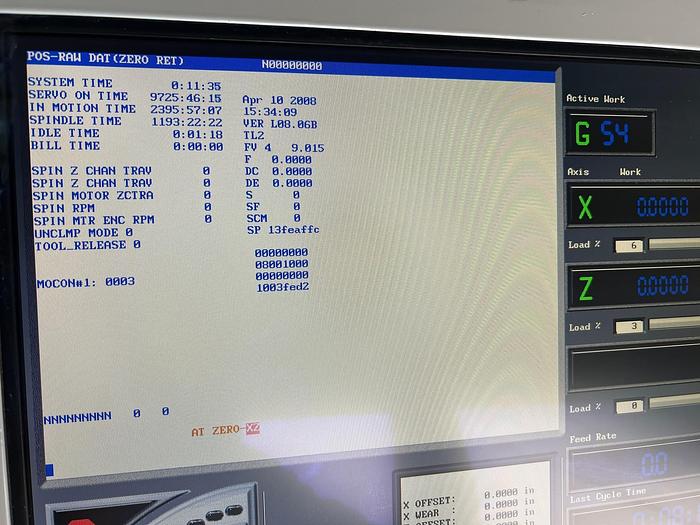

**Servo On Hours 9,725**
**In Motion Hours 2,395**
**Spindle Hours 1,193**
Specifications
| Manufacturer | Haas |
| Model | TL-2 Big Bore |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119603 |
| Control | Haas CNC Control |
| Chuck Size | 10" 6 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 12 HP |
| Number of Turret Positions | 2 Position Tool Post |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Tailstock Center | MT #4 |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
