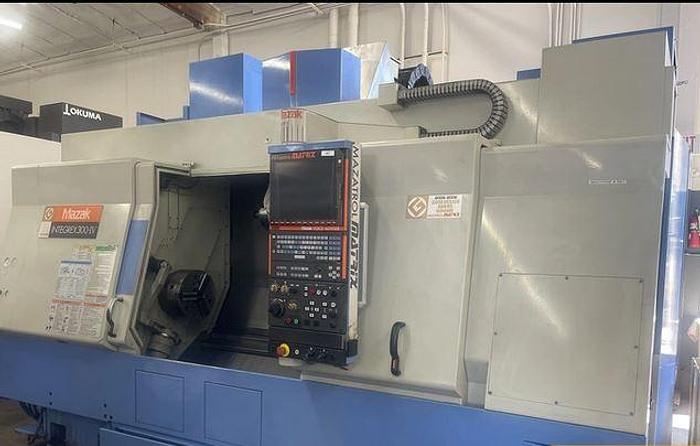

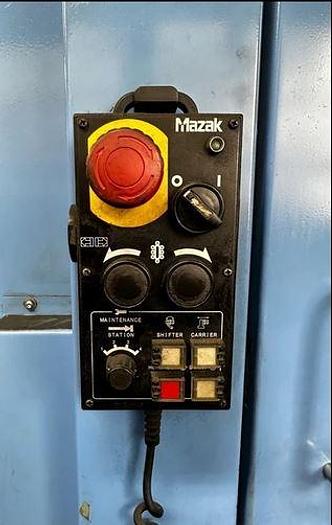

2007 Mazak Integrex 300-IV/1000 Turn/Mill Center
2007 Mazak Integrex 300-IV/1000 Turn/Mill Center
$99,500 (USD)
Location:California
Description

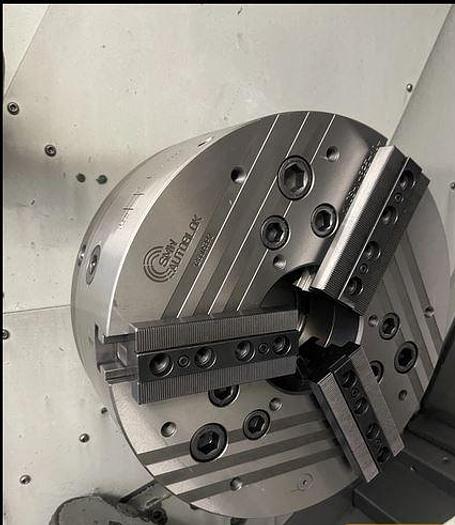

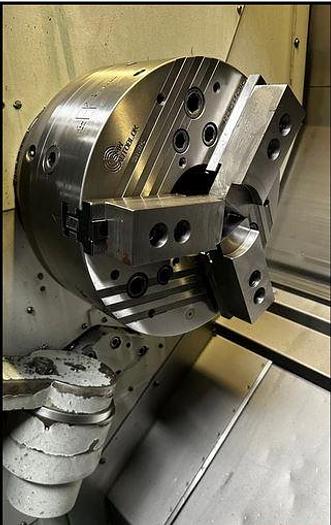

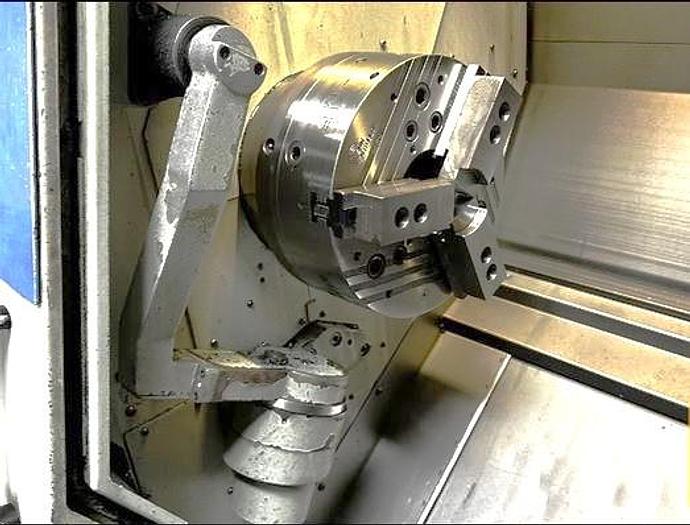

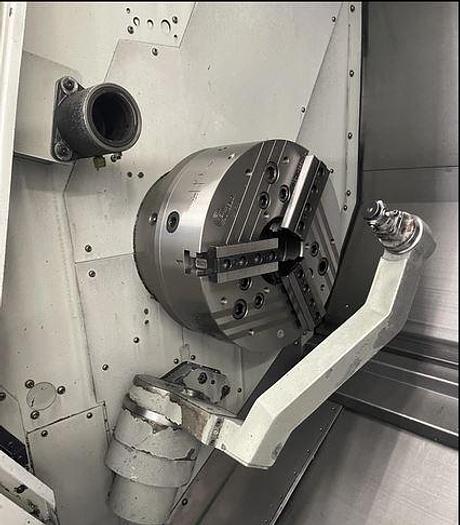

12" Autoblok KNCS-N-325-104 3 Jaw Quick Change Hydraulic Chuck
C Axis Spindle Rotation
Milling/Drilling Capabilty - Live Tooling
Y Axis Capability for off centerline work

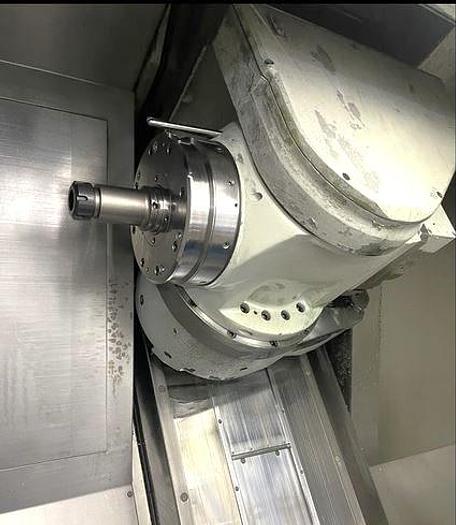

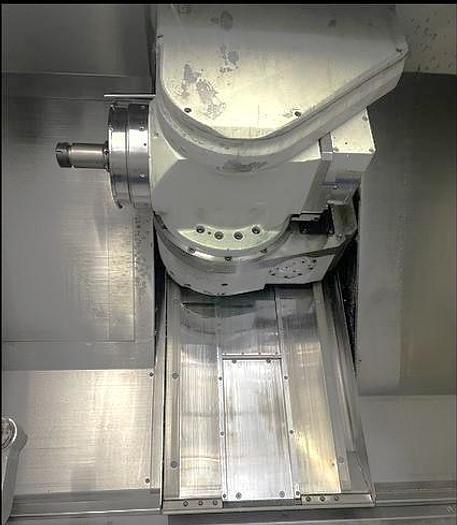

B-Axis Pendulum Style Head - 5 Degree Index Coupling Clamp
B Axis Positioning over 225 Degrees in 0.0001 Increment (not contouring)

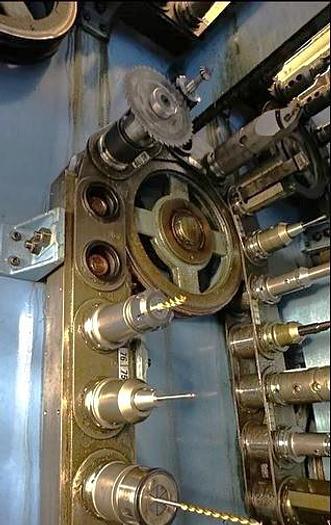

80 Station Toolchanger - KM63
Automatic Tool Eye

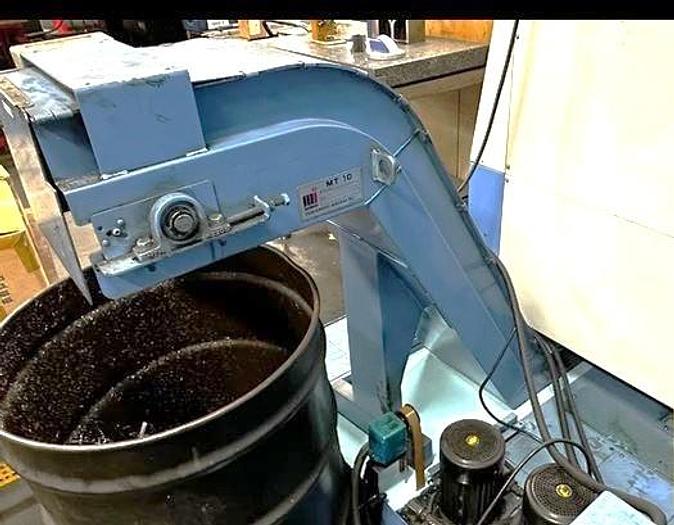

Chip Conveyor

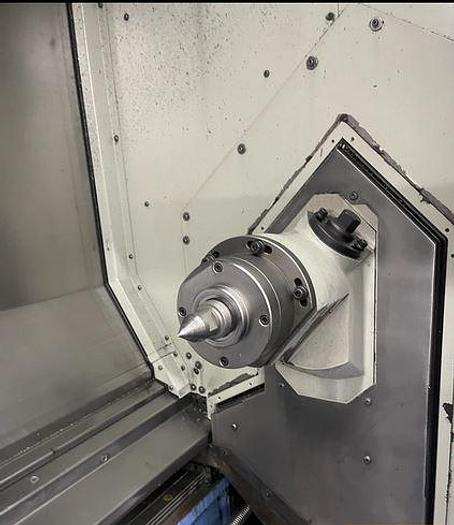

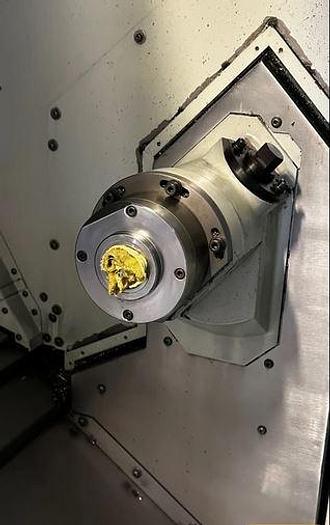

Programmable Tailstock
Chuck Open/Close Confirmation
Work Measuring System OMP-40 (Main Spindle Only)
Mill Spindle Synchronous Tapping

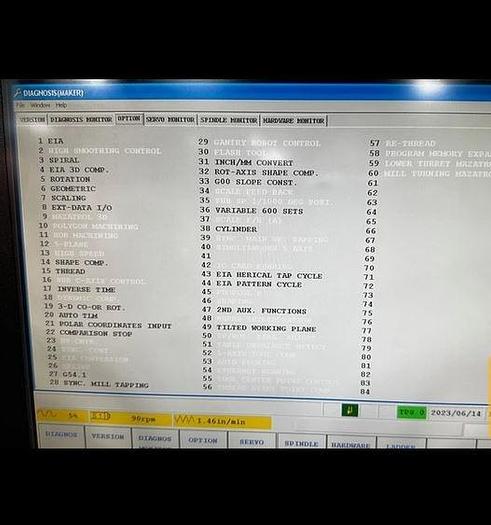

EIA/ISO Input Function
EIA 3D Comp.
Coordinate Rotation & Scaling
Theading
Polar Coordinate Input
Tilted Work Plane
Coolant System with Tank & Pump

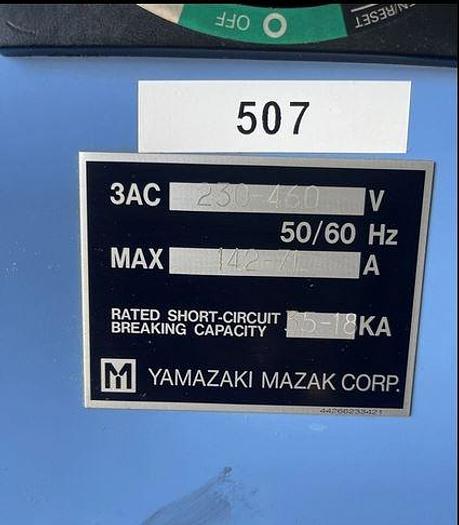

Multi Tap Transformer 230-460V Electrics
PCMCIA Interface 2-Slots
RS-232C Port for DNC Interface
All Available Tooling
All Available Manuals

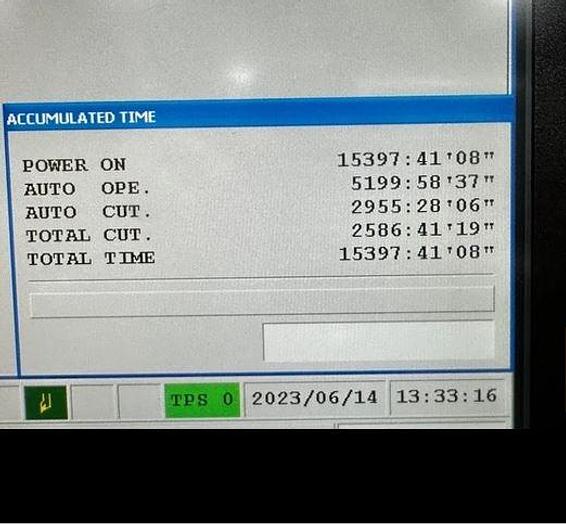

**Total Cutting Hours 2,586**
Specifications
| Manufacturer | Mazak |
| Model | Integrex 300-IV |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119605 |

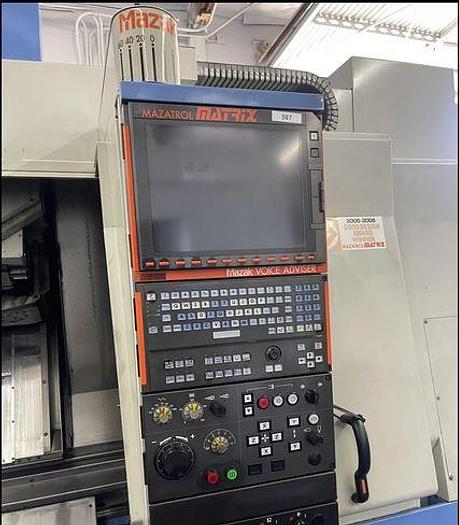

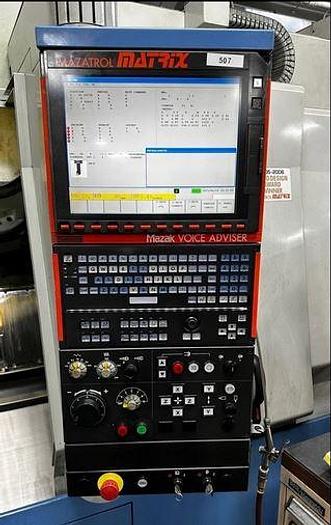

| Machine Control | Mazatrol Matrix |
| Chuck Type | 12" 3 Jaw Hyd. Chuck |
| Maximum Swing | 30" |
| Maximum Swing when using Y Axis | 26" - 30" |
| Maximum Turning Diameter | 30" |
| Distance Between Centers | 40.7" |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | +/- 4.53" |
| Z-Axis Travel | 43.11" |
| C-Axis Rotation | .0001 Degree |
| B-Axis Tilt Movement | 225 Degrees |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 40 HP |
| Milling Spindle Speed | 12,000 RPM |
| Milling Spindle Motor | 25 HP |
| Tool Magazine Capacity | 80 Station Tool Changer - KM63 |
| Rapid Traverse Rates (X, Y, Z) | 1496 IPM, 1024 IPM, 1496 IPM |
| Machine Dimensions LxWxH | 158" x 93" x 115" |
| Machine Weight | 26,460 lbs |
