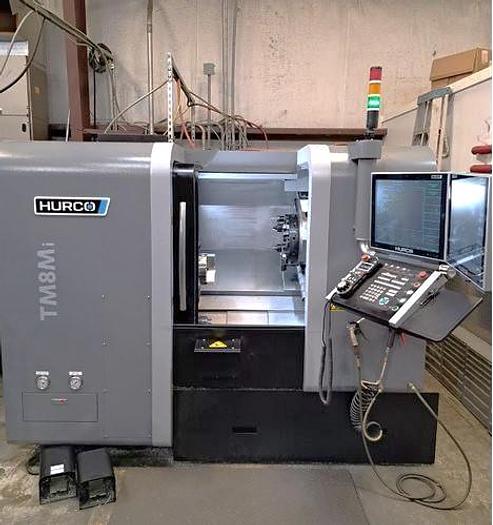

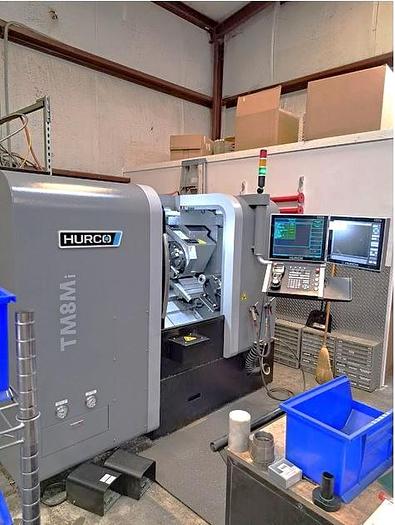

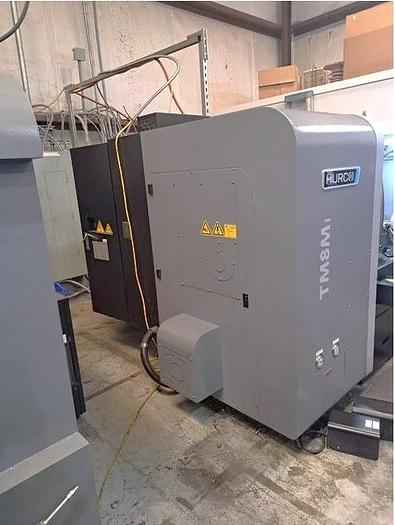

2021 Hurco TM8Mi
2021 Hurco TM8Mi
$94,500 (USD)
Location:Florida
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

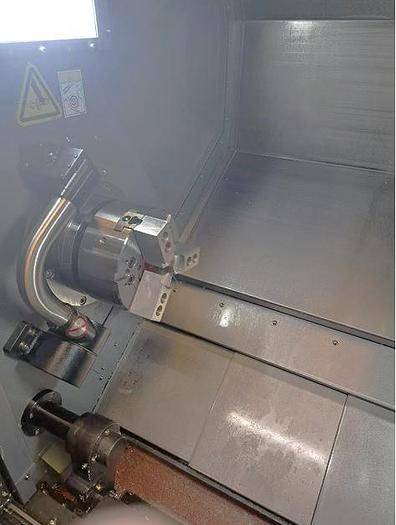

8" 3 Jaw Hydraulic Chuck
Tailstock
Parts Catcher
Tool Presetter
Hand Held Remote Jog Handle

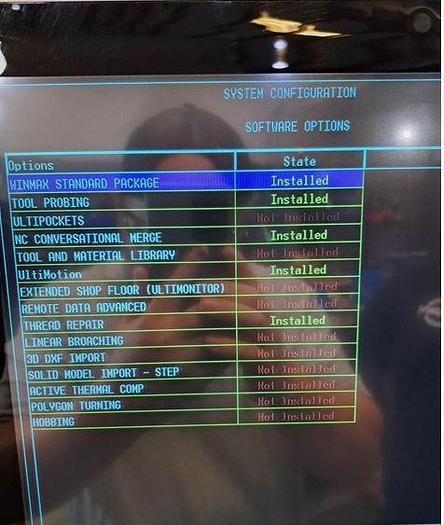

Ultimotion
Thread Repair
Rigid Tapping
Conversational Programming
3 Color Machine Status Condition Lights
Foot Pedals for Chuck Open/Close and Tailstock
USB Port Interface
RS 232 Port Interface
All Available Manuals
Wired 480V Electrics

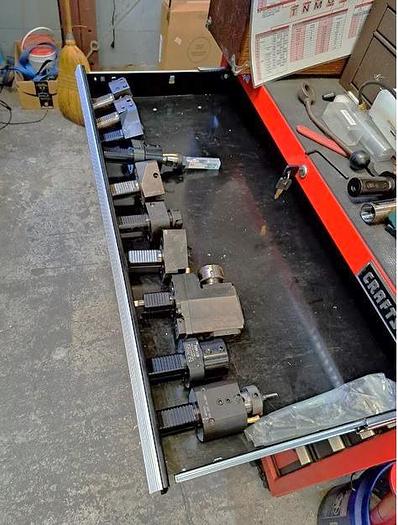

(2) Live Holders, 1 Axial and 1 Radial

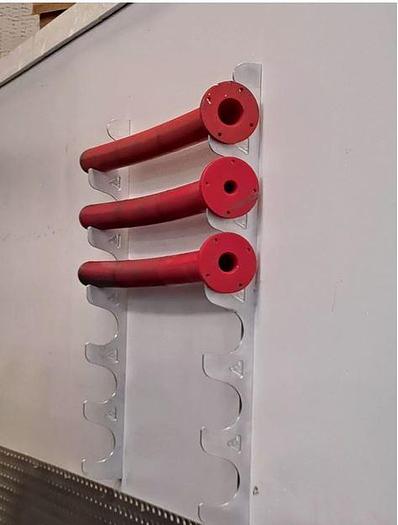

Trusty Cook Spindle Draw Tube Liners

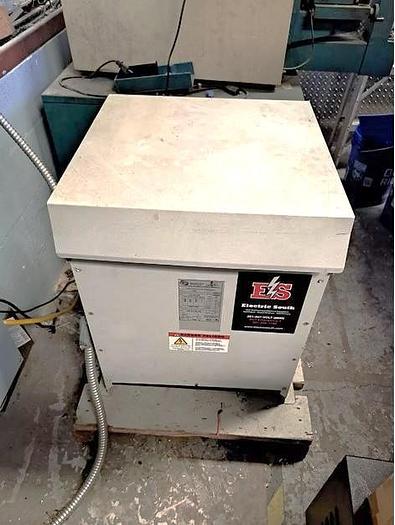

Transformer
**Purchased New in January of 2022**
Specifications
| Manufacturer | Hurco |
| Model | TM8Mi |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119615 |
| Machine Control | Hurco Max |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 20.69" |
| Maximum Swing Over Cross Slide | 11.82" |
| Maximum Cutting Diameter | 10.09" |
| Maximum Cutting Length | 17.93" |
| Distance Between Centers | 23.5" |
| X-axis travel | 7.8" |
| Z-Axis Travel | 21.67" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2.01" |
| Spindle Motor | 30 HP |
| Spindle Speed | 4,000 RPM |

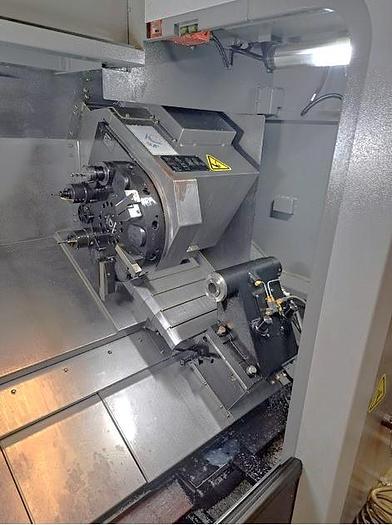

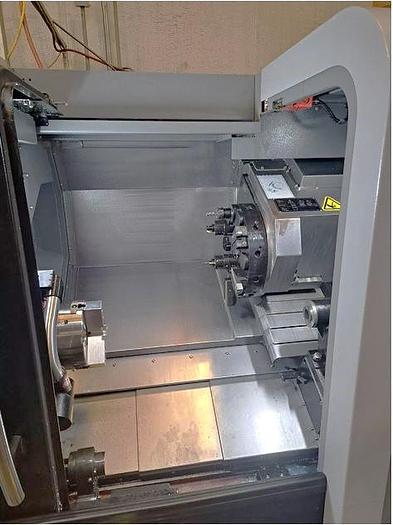

| Number of Turret Positions | 12 Position Turret - VDI 30 |
| Milling Spindle Speed | 5,000 RPM |
| Milling Spindle Motor | 6 HP |
| Rapid Traverse Rates | 1182 IPM |
| Machine Dimensions LxWxH | 189" x 111" x 83.7" |
| Machine Weight | 9,680 lbs |
