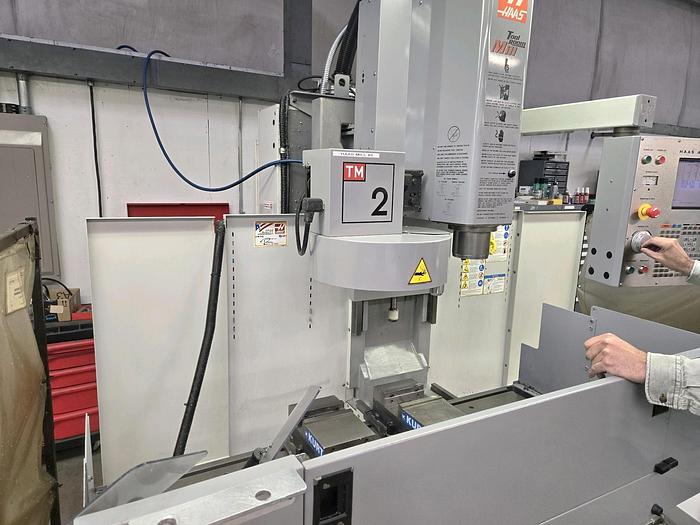

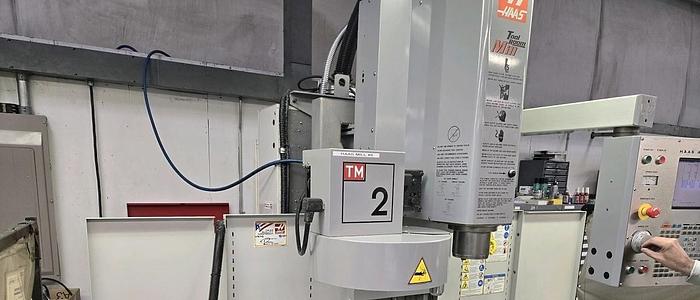

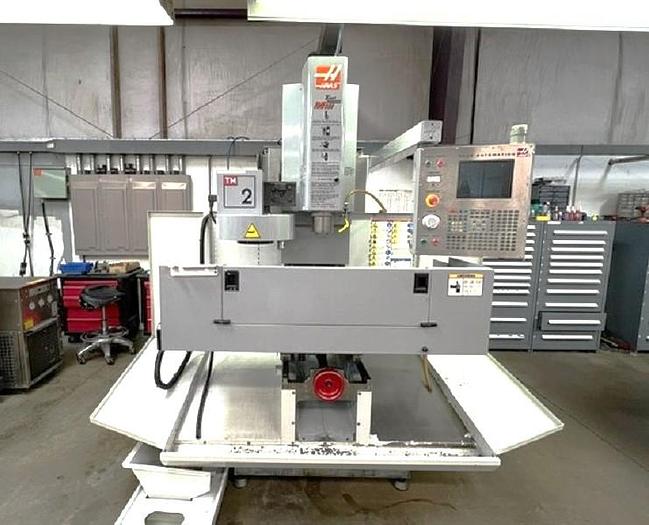

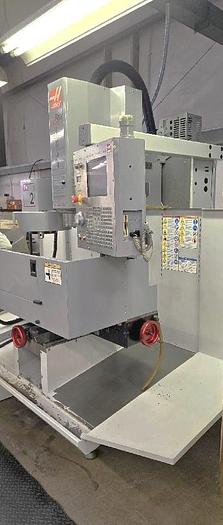

2007 Haas TM-2
2007 Haas TM-2
$18,950 (USD)
Location:Oregon
orCall (863) 439-6066
Description
10 Station Tool Changer
Rigid Tapping

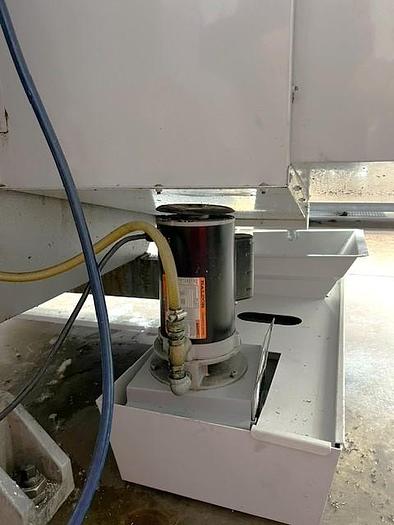

Coolant System with Tank & Pump
Manual Hand Wheels

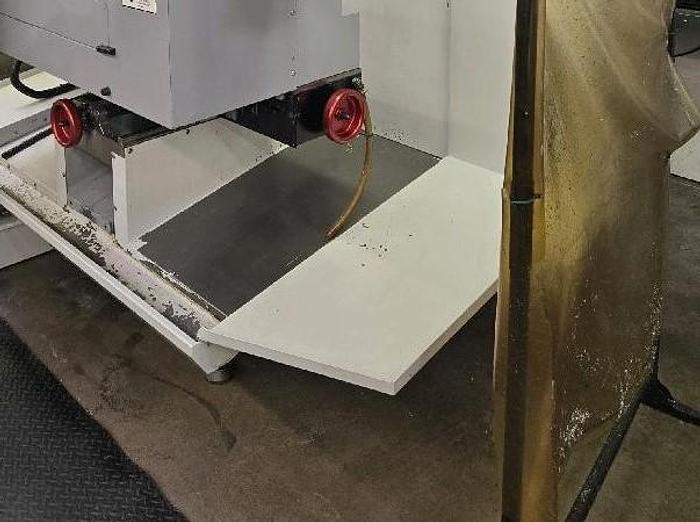

Fold Down Coolant Splash Guarding Brushless Servos All Axis'
3.5" Floppy Disk Drive RS 232 Port Interface
Machine Can Be Wired at Either Single or Three Phase Power

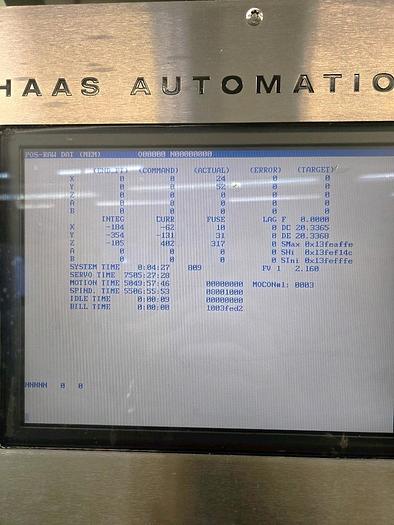

**Machine Servo On Hours 7,505**
**Motion Hours 5,049**
**Spindle Hours 5,506**
Specifications
| Manufacturer | Haas |
| Model | TM-2 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119620 |

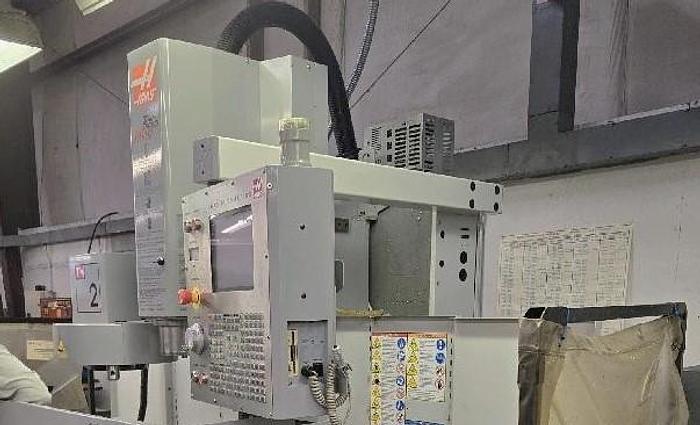

| Control | Haas CNC Control |

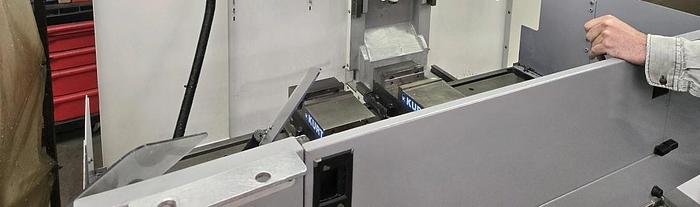

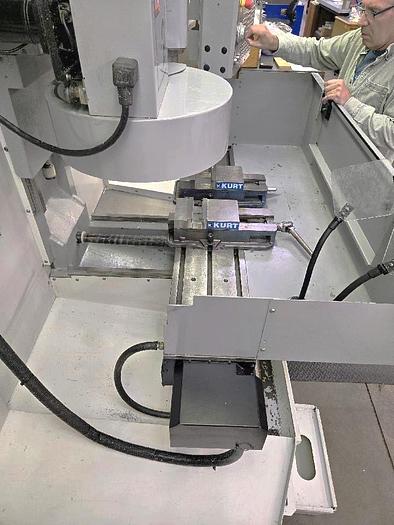

| Table Size | 57.75"x10.5" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 16" |
| Distance Spindle Nose to Table Top | 4"-20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 0-4,000 rpm |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capacity | 10 Station Umbrella Style ATC |
| Maximum Tool Diameter / Length / Weight | 3.5"/NA/12 lbs |
| Tool Change Time Chip to Chip | 5.7 Seconds |
| Rapid Traverse Rates | 200 IPM |
| Machine Dimensions LxWxH | 100"x64"x86" |
| Machine Weight | 4,000 lbs |
