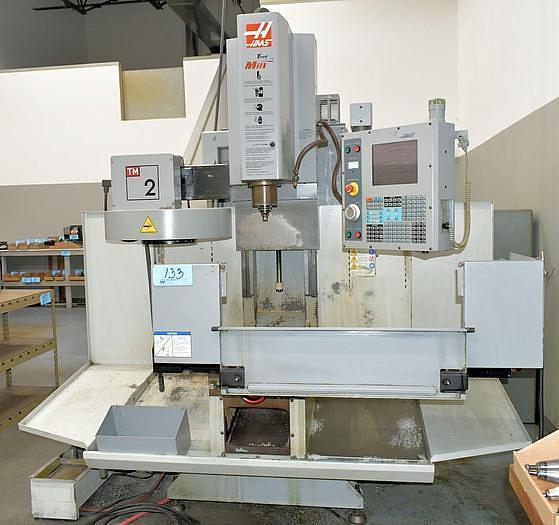

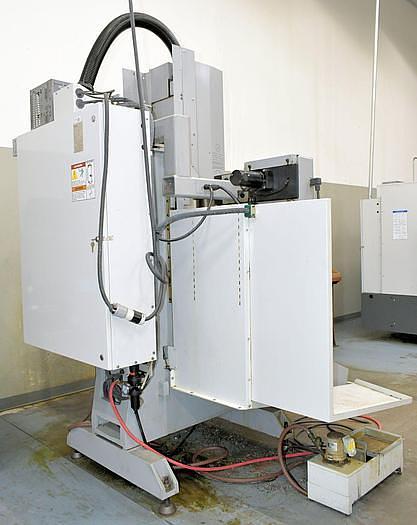

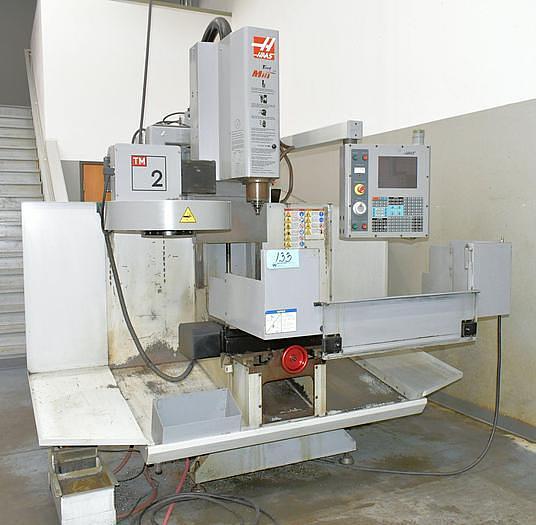

2007 Haas TM-2
2007 Haas TM-2
$19,500 (USD)
Location:Ohio
orCall (863) 439-6066
Description

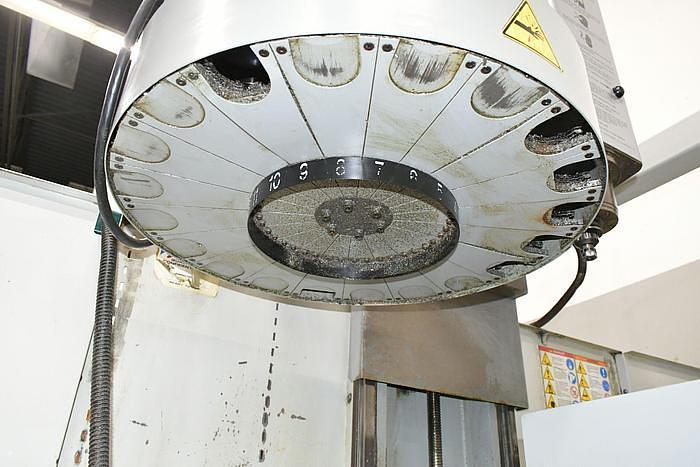

20 Station Umbrella Type Tool Changer Rigid Tapping
Manual Hand Wheels
Fold Down Coolant Splash Guarding
Coolant System with Tank & Pump Brushless Servos All Axis'

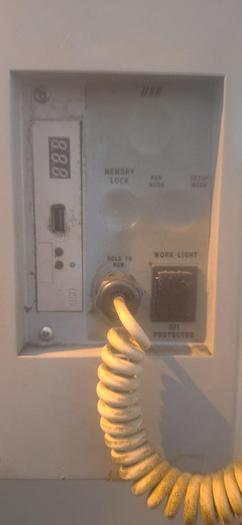

USB Port Interface RS 232 Port Interface
Machine Can Be Wired at Either Single or Three Phase Power

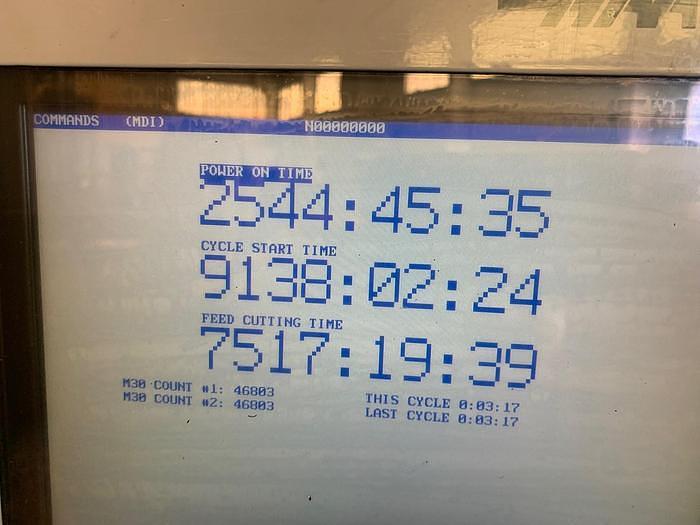

**Cycle Start Hours 9,138**
**Feed Cutting Hours 7,517**
Specifications
| Manufacturer | Haas |
| Model | TM-2 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119621 |

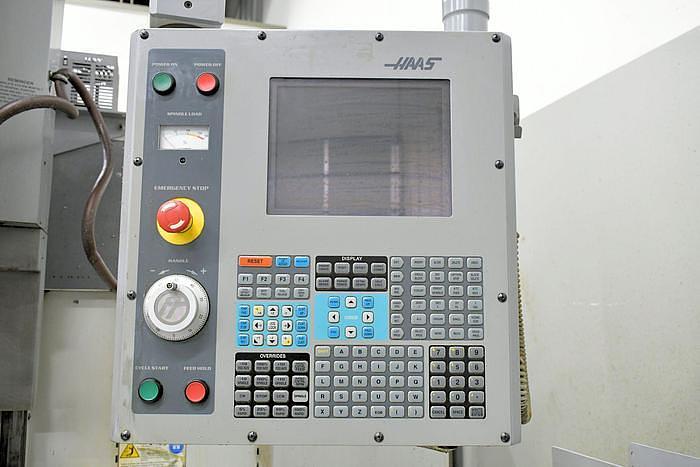

| Control | Haas CNC Control |

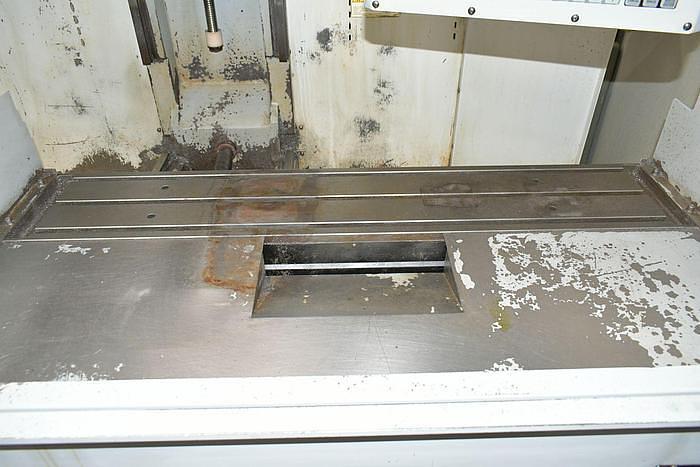

| Table Size | 57.75"x10.5" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 16" |
| Distance Spindle Nose to Table Top | 4"-20" |

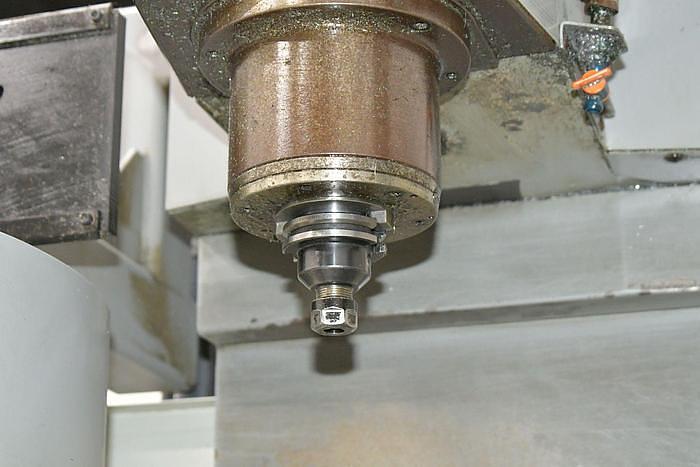

| Spindle Taper | CAT 40 |
| Spindle Speeds | 0 - 4,000 RPM |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capacity | 20 Position Umbrella Style Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.5"/NA/12 lbs |
| Tool Change Time Chip to Chip | 5.7 Seconds |
| Rapid Traverse Rates | 200 IPM |
| Machine Dimensions LxWxH | 100"x64"x86" |
| Machine Weight | 4,000 lbs |
