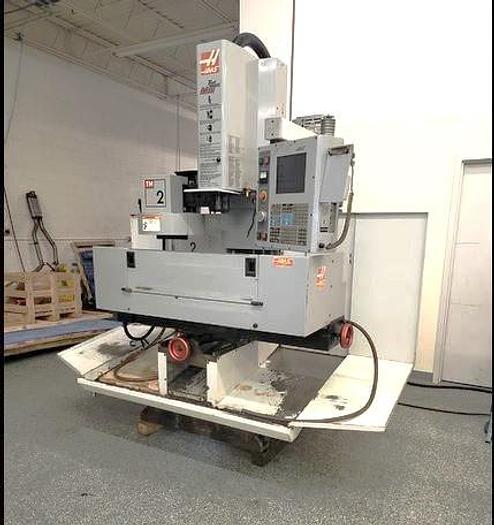

2004 Haas TM-2
2004 Haas TM-2
$17,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
10 Station Tool Changer
Rigid Tapping
Manual Hand Wheels
Fold Down Coolant Splash Guarding
Brushless Servos All Axis'
USB Port Interface Conversion from 3.5" Floppy Disk Drive
RS 232 Port Interface
Machine Can Be Wired at Either Single or Three Phase Power

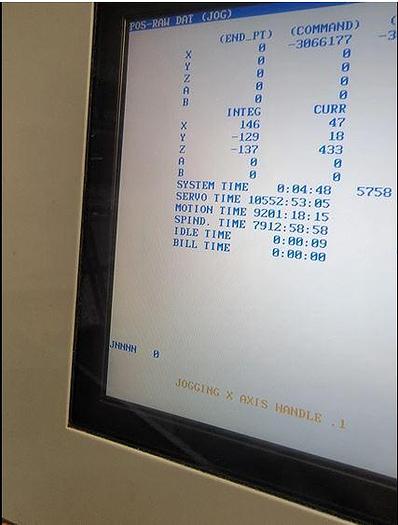

**Machine Servo On Hours 10,552**
**Motion Hours 9,201**
**Spindle Hours 7,912**
**Machine does NOT include the coolant tank with pump option**
Specifications
| Manufacturer | Haas |
| Model | TM-2 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119623 |
| Control | Haas CNC Control |

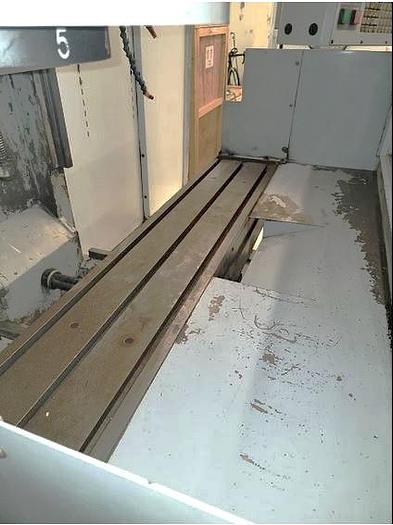

| Table Size | 57.75"x10.5" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 16" |
| Distance Spindle Nose to Table Top | 4"-20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 0-4,000 RPM |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capacity | 10 Station Umbrella Style ATC |
| Maximum Tool Diameter / Length / Weight | 3.5"/NA/12 lbs |
| Tool Change Time Chip to Chip | 5.7 Seconds |
| Rapid Traverse Rates | 200 ipm |
| Machine Dimensions LxWxH | 100"x64"x86" |
| Machine Weight | 4,000 lbs |
