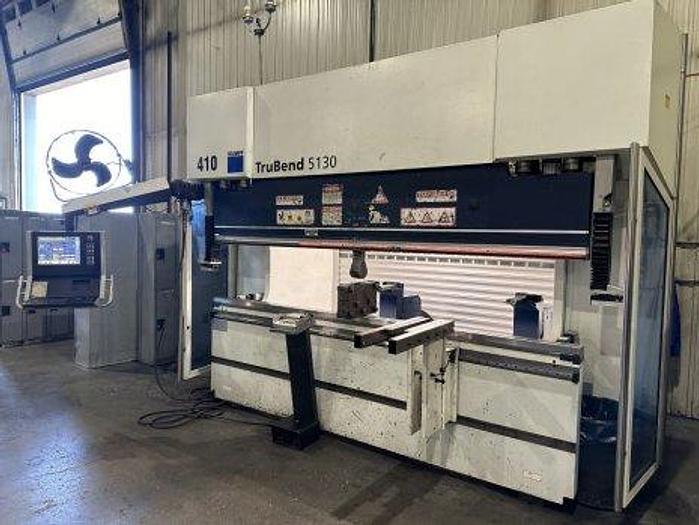

2014 Trumpf Trubend 5130X CNC Press Brake
2014 Trumpf Trubend 5130X CNC Press Brake
$129,500 (USD)
Location:Ontario, Canada
orCall (863) 439-6066
Description
3D Graphics

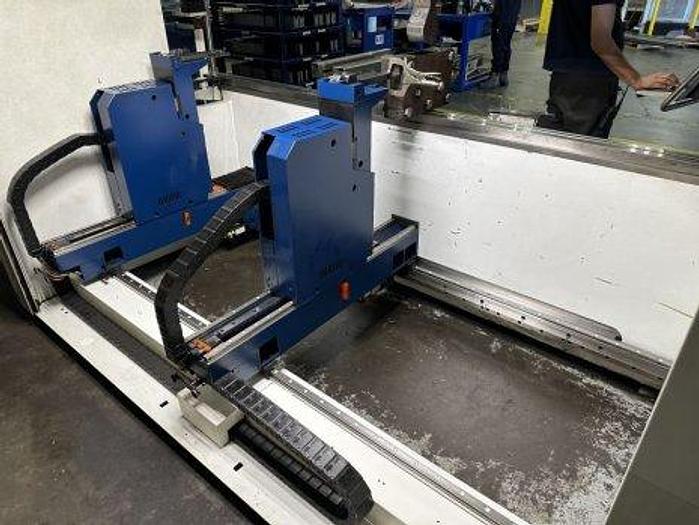

6 Axis Back Gauge (X1, X2, Z1, Z2, R1, R2)
CNC Crowning
Hydraulic Clamps
Pedestal and Foot Switch
All Available Manuals
Specifications
| Manufacturer | Trumpf |
| Model | Trubend 5130X CNC Press Brake |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119633 |

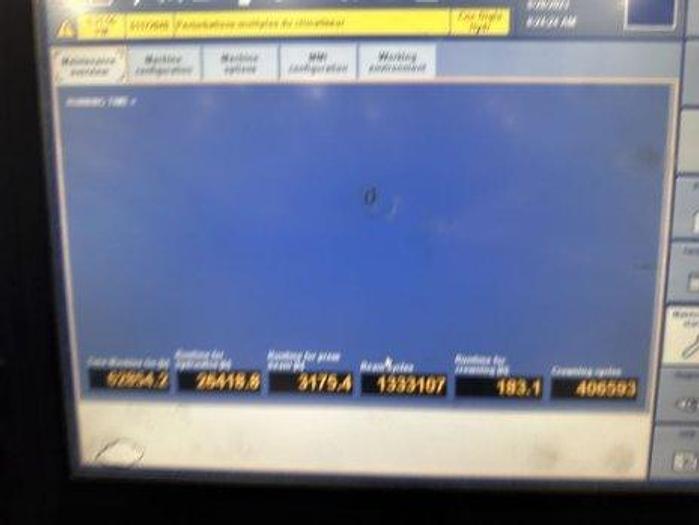

| Machine Control | Trumpf TASC 6000 CNC Control |
| Capacity | 141 Tons |
| Bending Length | 127" |
| Length of Stroke | 17.5" |
| Open Height | 24" |
| Usable Open Height | 15.16" |
| Operating Height | 43.1" to 43.8" |
| Throat Depth | 16.5" |
| X-Axis Position Accuracy | .002 |
| Y-Axis Position Accuracy | .0002 |
| R-Axis Position Accuracy | .003 |
| Approach | 472 IPM |
| Forming | 2 - 24 IPM |
| Return Traverse Speed X/Y/Z/R | 2362 IPM / 520 IPM / 2362 IPM / 780 IPM |
| Drive Motor | 25 HP |
| Machine Dimensions LxWxH | 160"x69"x112" |
| Machine Weight | 24,030 lbs |
