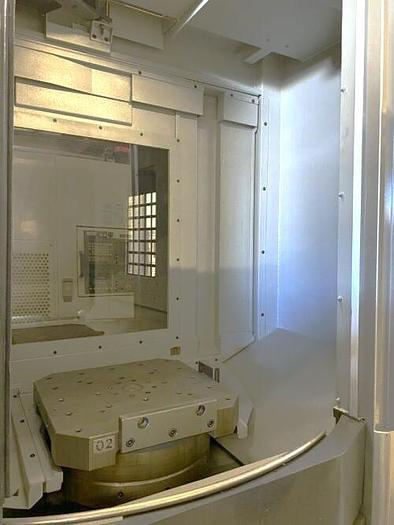

2013 DMG Mori NHX-5000 Full 4th Axis Table
No longer available
2013 DMG Mori NHX-5000 Full 4th Axis Table
$109,500 (USD)
Location:California
Description

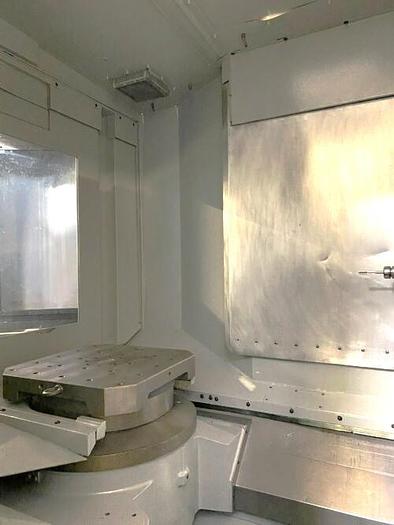

2 Pallet Changer System Full 4th Axis Rotary Table Coolant Through the Spindle

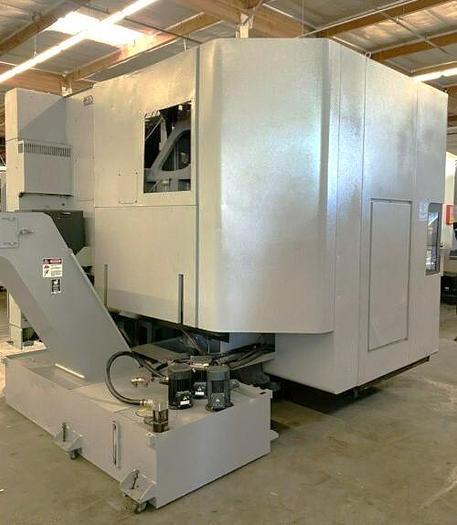

Chip Conveyor (needs belt repaired)

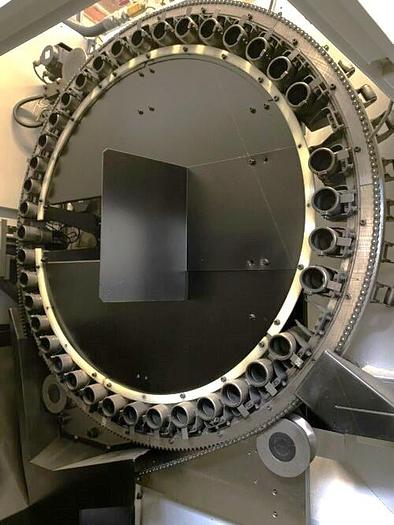

40 Station Tool Changer
12,000 RPM Spindle Remote Jog Handle
Flood Coolant Rigid Tapping
Custom Macros
Spindle Orientation
200 Tool Coordinate/Offsets
48 Work Coordinate/Offsets
Pallet Seat Detection
50 MB Memory
Scales on All Axis'
USB Port Interface
RS 232 Port Interface
Wired 220V Electrics All Available Manuals
Specifications
| Manufacturer | DMG Mori |
| Model | NHX-5000 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119640 |

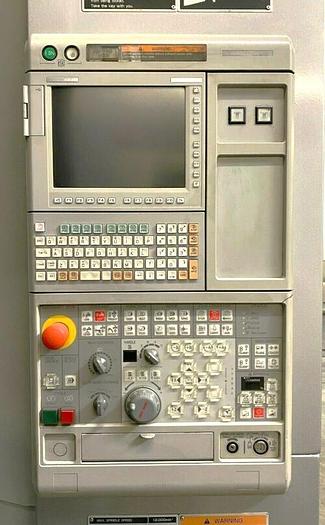

| Machine Control | Mitsubishi M730BM with MAPPS |
| Pallet Size / Number of Pallets | 19.7" x 19.7" / 2 Pallets |
| Maximum Weight on Table | 882 lbs. |
| Maximum Workpiece Height | 35.4" |
| Pallet Indexing | .001 Degrees |
| X-Axis Travel | 28.7" |
| Y-Axis Travel | 28.7" |
| Z-Axis Travel | 34.5" |
| Spindle Nose | #40 Taper |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 40 HP |
| Tool Magazine Capacity | 40 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 6.6" / 17.7" / 18 lbs. |
| Rapid Traverse Rates | 2,362 IPM |
| Cutting Feedrates | 984 IPM |
| Machine Dimensions LxWxH | 165" x 105" x 122" |
| Machine Weight | 24,000 lbs |
