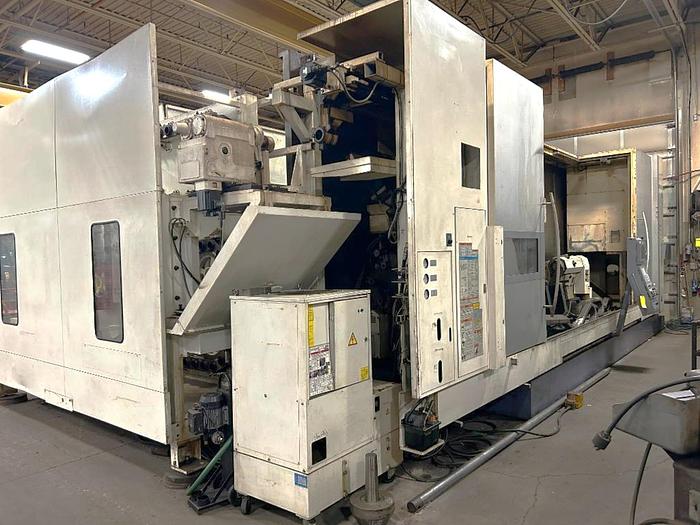

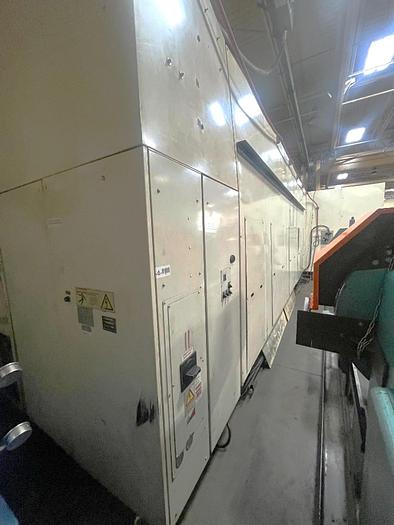

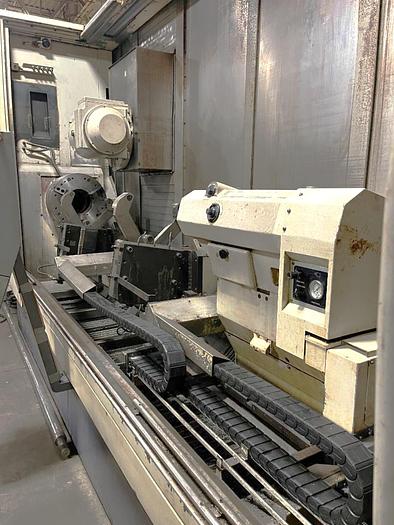

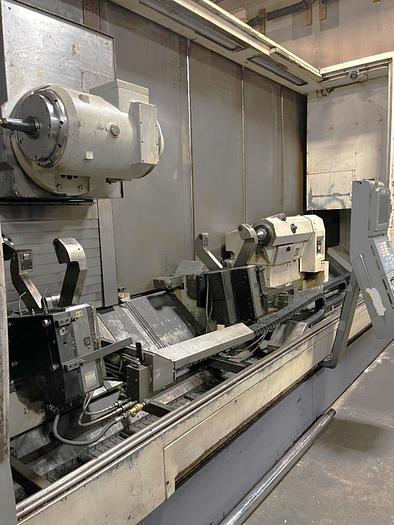

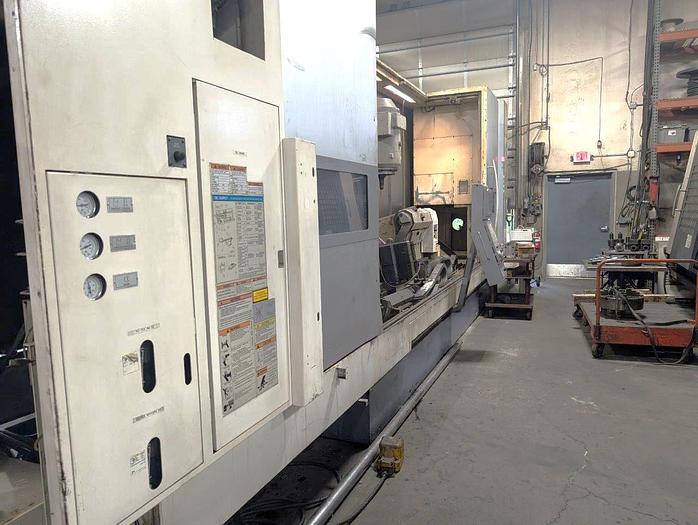

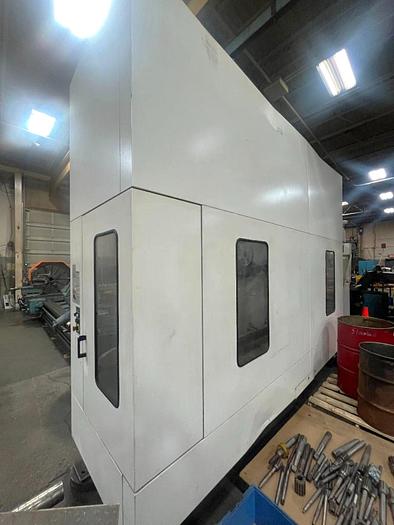

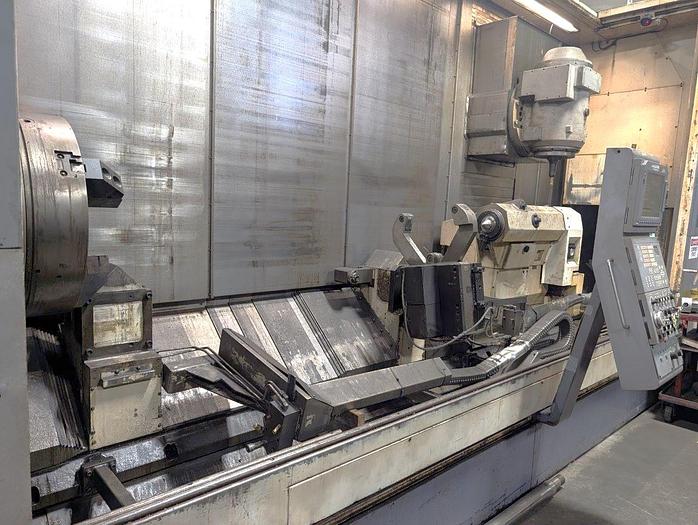

2003 Mazak Integrex e-650H/4000U with 10.24" Big Bore
2003 Mazak Integrex e-650H/4000U with 10.24" Big Bore
$229,500 (USD)
Location:Minnesota
Description

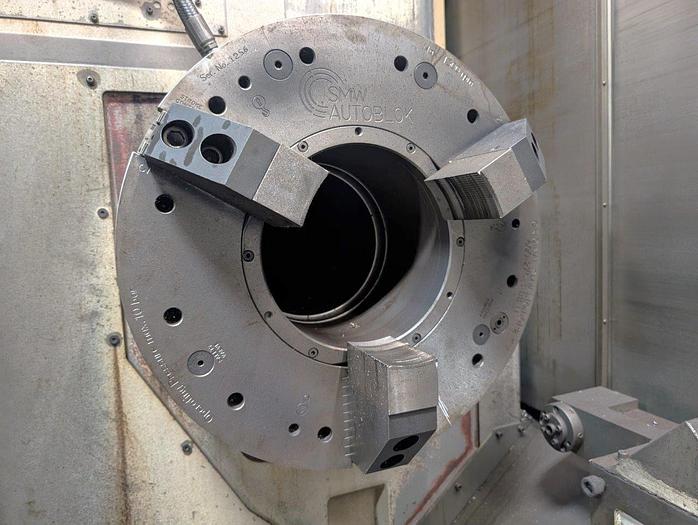

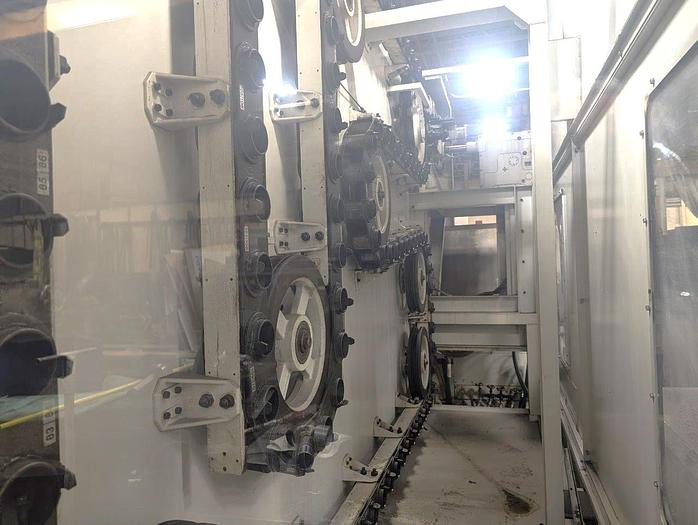

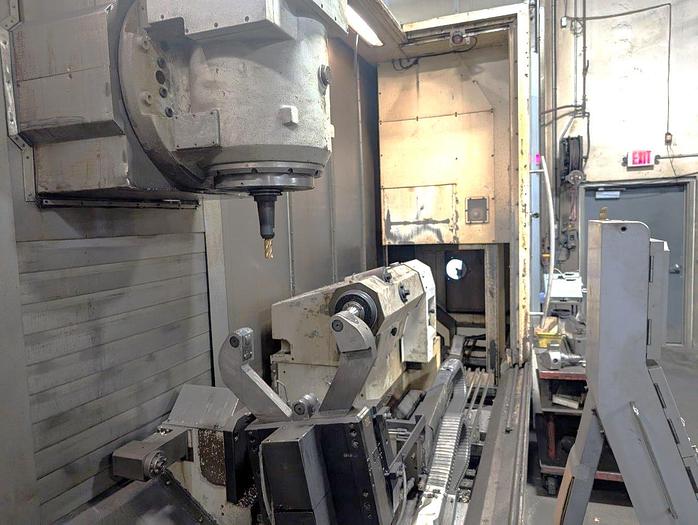

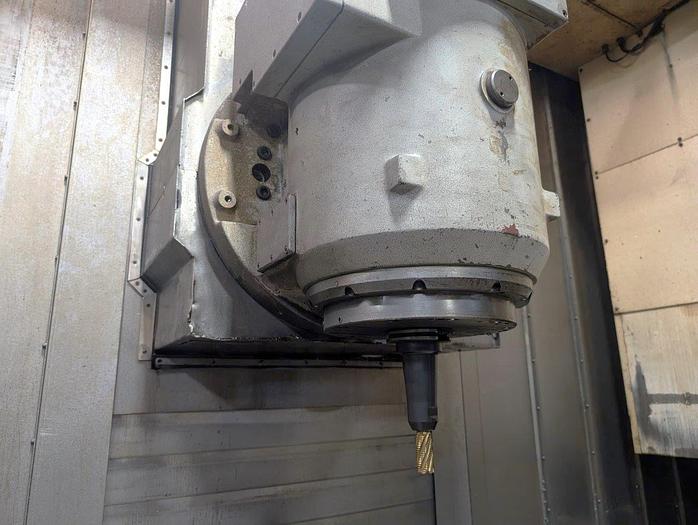

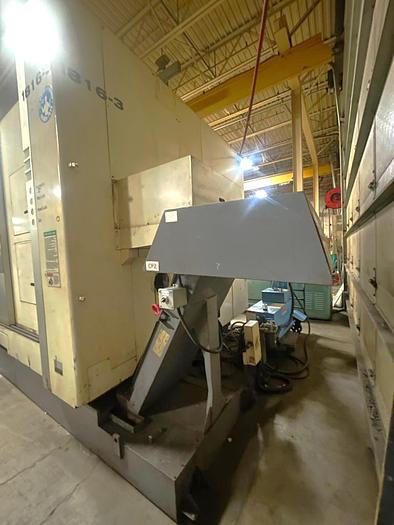

Y Axis Capability Full C Axis Spindle Rotation Live Milling/Drilling Capability B Axis Pendulum Head 120 Station Tool Changer 23.64" 3 Jaw SMW Autoblok Model 600-275-3-BB-N Air Chuck with 10.83" Hole Through 10.24" Spindle Bore Option Chip Conveyor Tandem Auto Steady Rest Base and Bracket for LNS Arm

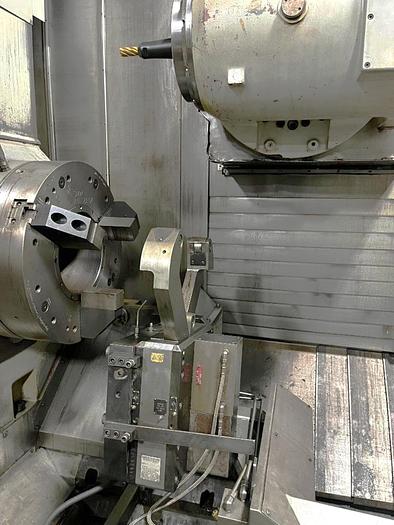

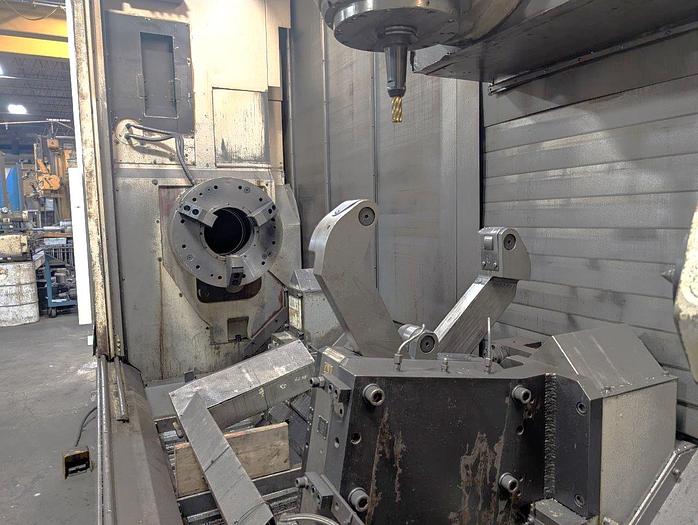

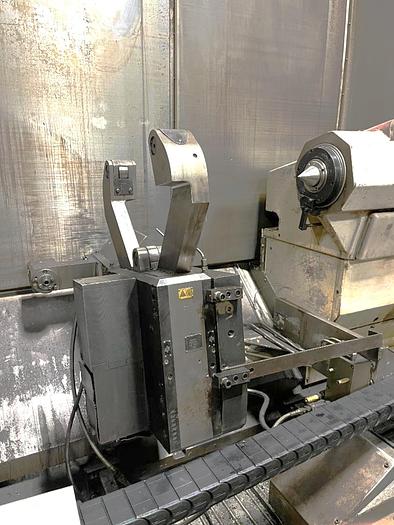

(2) LNS Arm-305 Steady Rest Package (Quantity 2) Long Boring Bar Changer - 3 Bar (4.72" diameter x 39.37" long x 396.9 lbs. max)

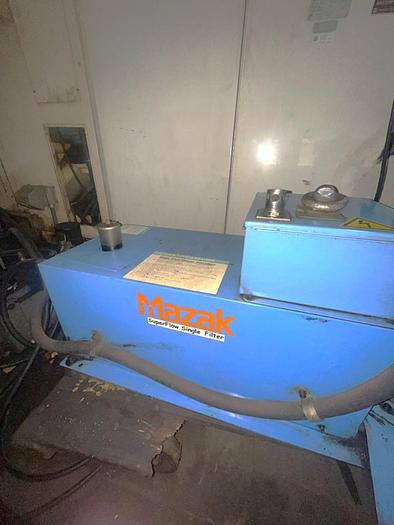

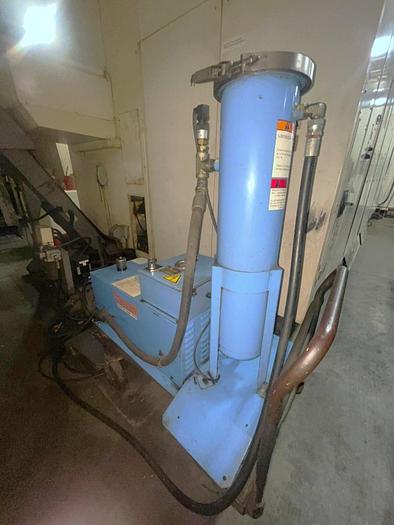

Long Boring Bar Base 80mm ID Mazak Superflow 1 High Pressure Coolant with prep for 1000 PSI Coolant Mazak Monitoring System B Probe Ready (interface only for MP700 probe)
Rear Spindle Chuck Mount Prep

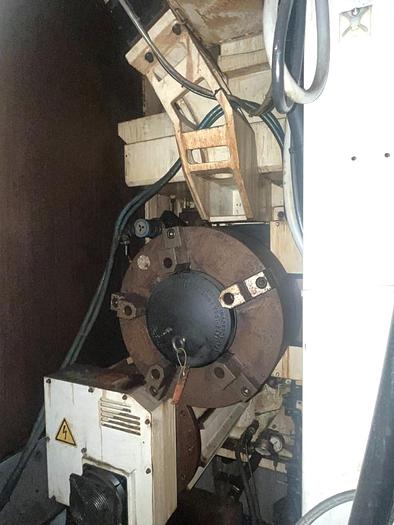

Rear Mounted PHD-260 500 M 5 Jaw Manual Scroll Chuck Auto Pecking
Auto Start
Auto Warm Up
Auto Power Off

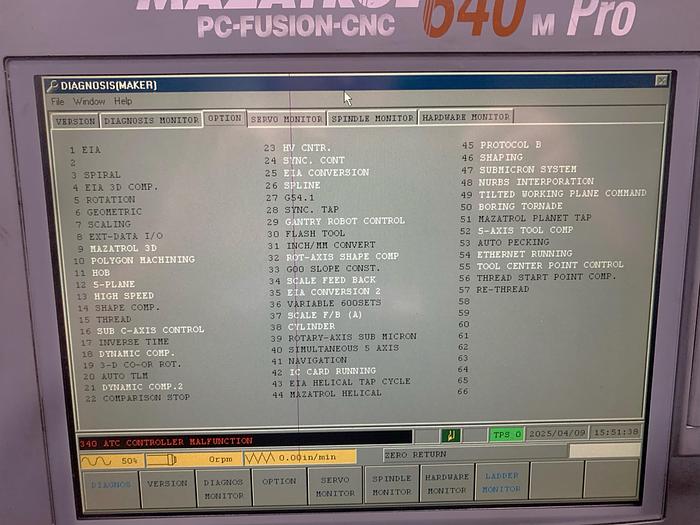

Auto Synch Threading
Polygon Machining
Hobbing
5 Plane Machining
Sub C-Axis Control
Dynamic Compensation
Dynamic Compensation 2
EIA Conversion Function
Scale Feedback
Nurbs Interpolation
Tool Center Point Control
Prep for Multi Flash System
Ethernet Interface USB Port Interface LAN Port Interface IC Memory Card Interface Cardbus Interface - 2 Slots Coolant Through the Mill Head
Coolant Through the Subspindle Spindle Orientation Auto Chuck Jaws Open/Close Mill Spindle Synchronized Tapping
All Available Tooling and Manuals
Mitsubishi Premium Service Agreement good through 6/23/2025

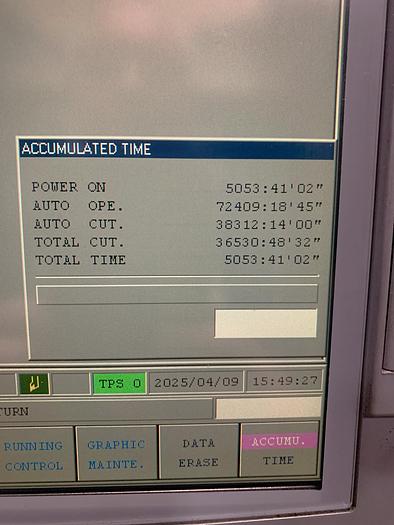

**Operation Hours 72,409**
**Total Cutting Hours 36,530**
Specifications
| Manufacturer | Mazak |
| Model | Integrex e-650H/4000U with 10.24" Big Bore |
| Year | 2003 |
| Condition | Used |
| Stock Number | 119646 |

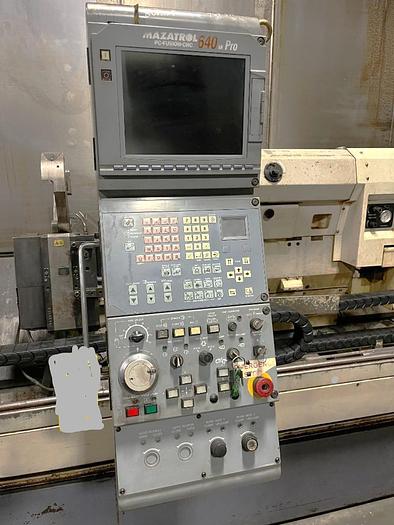

| Control | Mazatrol Fusion 640MT Pro |

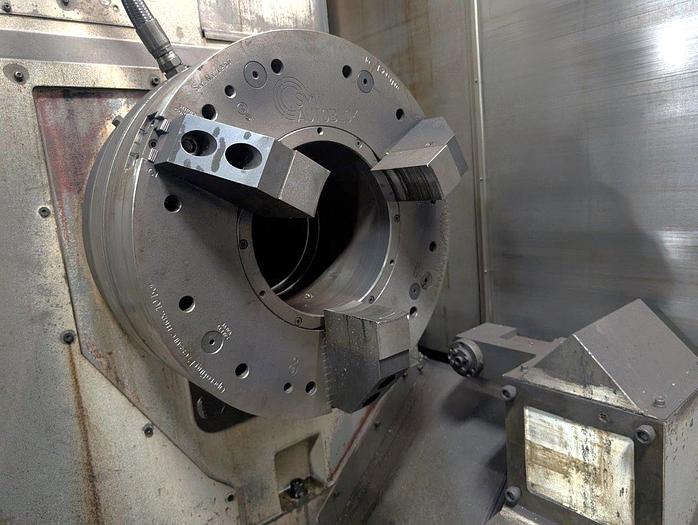

| Chuck Size | 23.64" Air Chuck |
| Maximum Swing | 36.2" |
| Maximum Cutting Diameter - Chucking | 36.2" |
| Maximum Cutting Length | 160" |
| X-Axis Travel | 82.91" |
| Y-Axis Travel | +/- 12.8" |
| Z-Axis Travel | 162.93" |
| W-Axis Travel (subspindle) | 160.2" |
| B-Axis Tilt Movement | 240 Degrees |
| B-Axis Increment | .0001 Degree |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore | A2-15" / 10.24" |
| Spindle Speed | 1,000 RPM - 2 Ranges |
| Spindle Motor | 60 HP |
| Mill Spindle Speed / Mill Spindle Motor | 10,000 RPM / 50 HP |
| Turret Type | 1 Position with ATC |
| Rotary Tool Spindle Taper | CAT #50 |

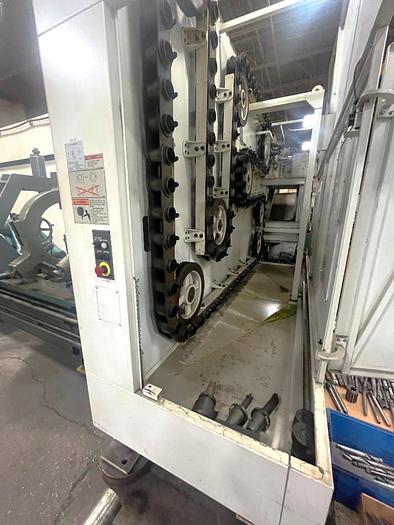

| Number of Tool Positions | 120 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 10.23" / 19.68" / 66 lbs. |
| Rapid Traverse Rates X, Y / Z | 1575 IPM / 1181 IPM |
| Machine Dimensions | 368" x 155" x 155" |
| Machine Weight | 77,200 lbs. |
