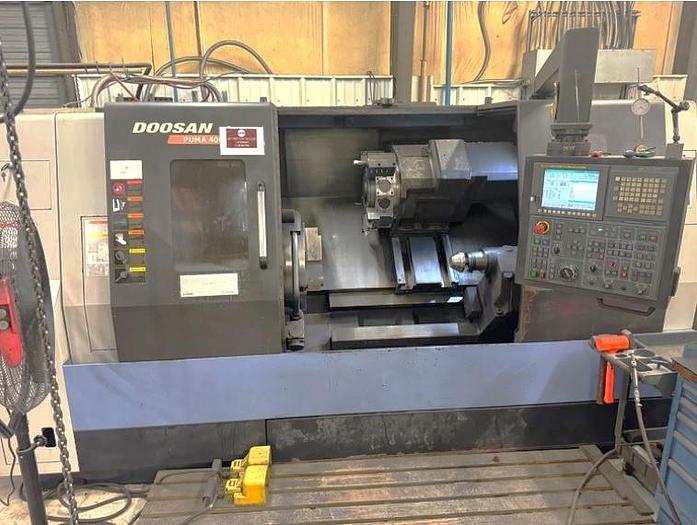

2014 Doosan Puma 400MC Big Bore with Milling Capability
2014 Doosan Puma 400MC Big Bore with Milling Capability
$109,950 (USD)
Location:Louisiana
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

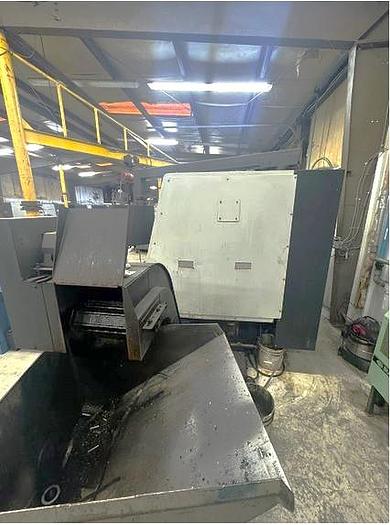

Chip Conveyor 15" 3 Jaw Hydraulic Chuck Programmable Tailstock
Tool Presetter USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
Wired 220V Electrics All Available Tooling All Available Manuals
**Less than 8,000 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 400MC |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119648 |
| Control | Fanuc i Series Control |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 38.5" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 43.5" |
| C Axis Spindle Rotation | 0.001 Degree Full C |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 20 - 1,500 RPM |
| Spindle Motor | 50 HP |
| Maximum Spindle Torque | 1793 ft./lbs |
| Transmission | 2 Speed Gearbox |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 15 HP |

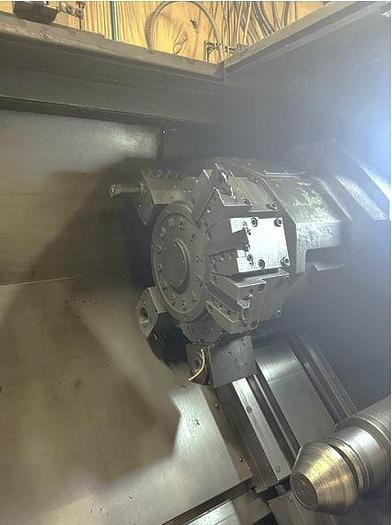

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 790 IPM |

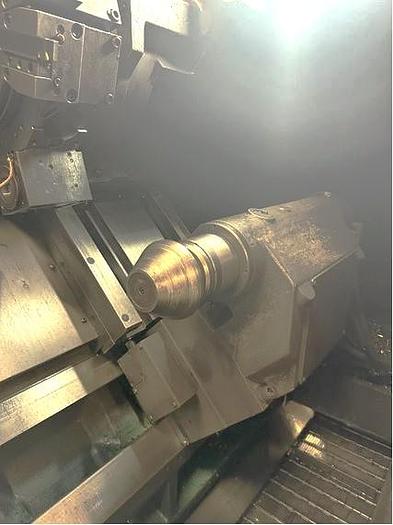

| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 215" x 99" x 95" |
| Machine Weight | 19,950 lbs. |
