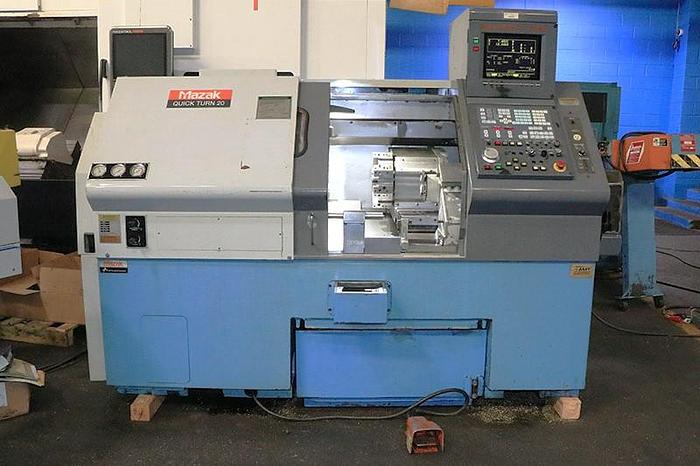

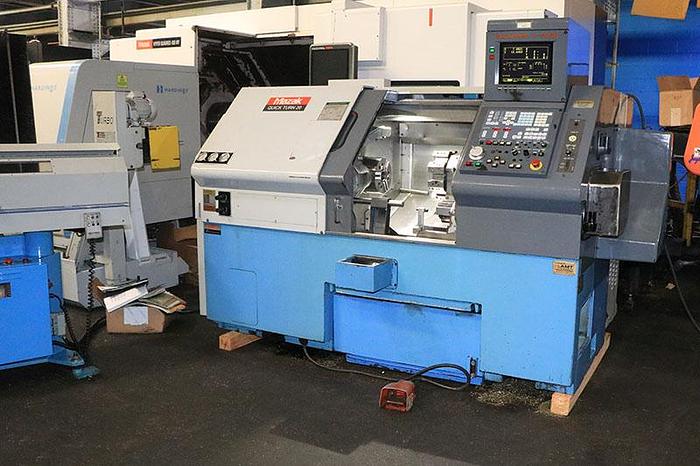

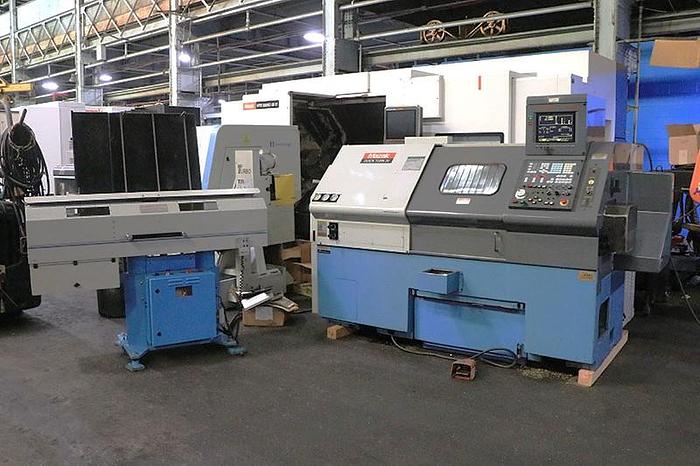

1998 Mazak QT20 with Barfeeder
1998 Mazak QT20 with Barfeeder
$17,950 (USD)
Location:New Jersey
orCall (863) 439-6066
Description

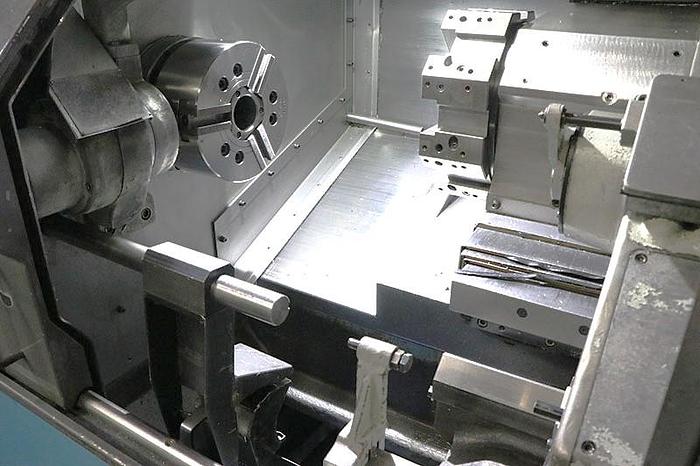

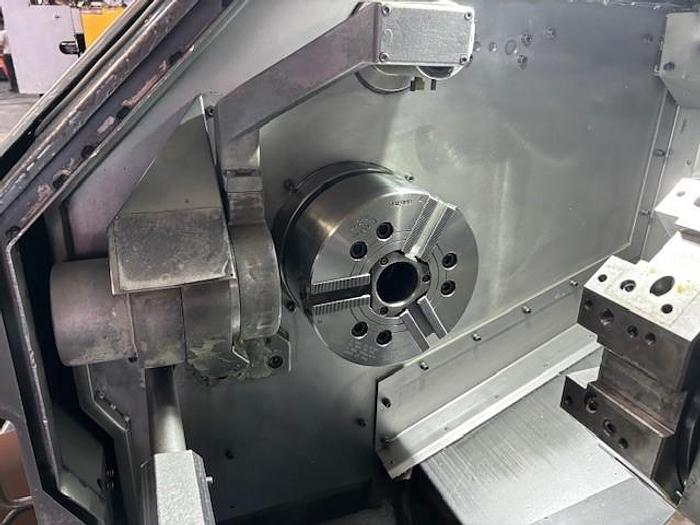

8" 3 Jaw Hydraulic Chuck
Programmable Tailstock

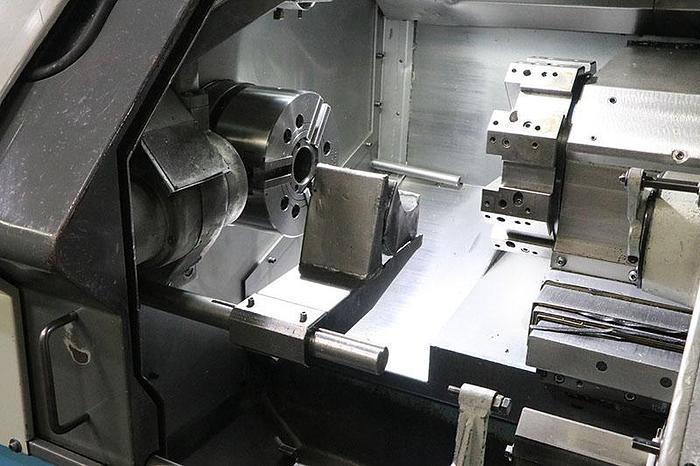

Automatic Parts Catcher
Chip Conveyor

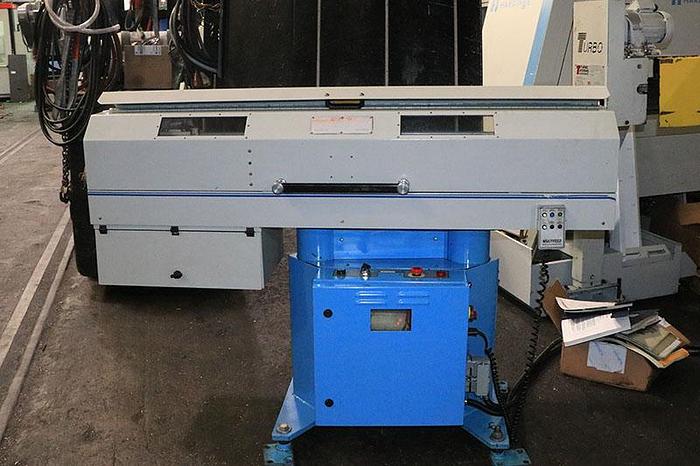

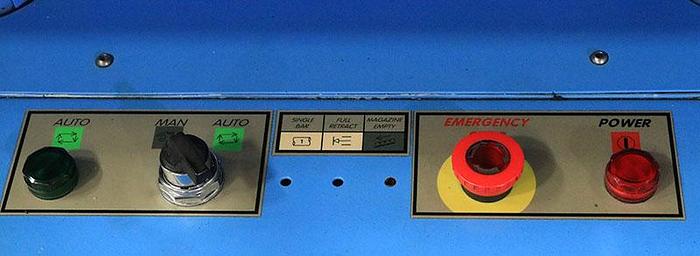

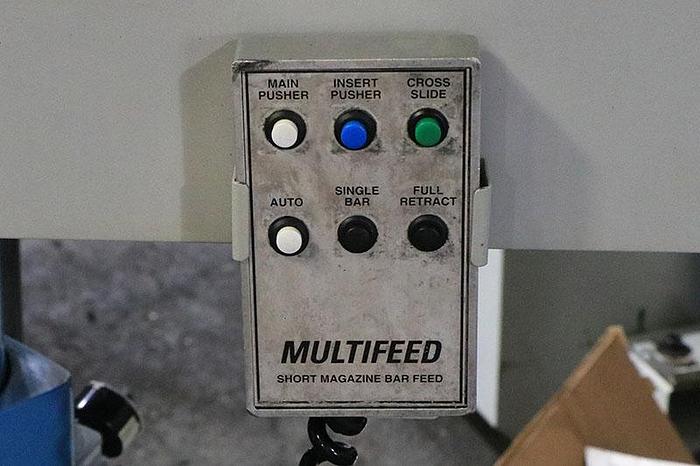

Mazak Model MZ-1 Short Bar Loader
Programmable Tool Eye
Complete Coolant System with Tank & Pump
RS-232 for DNC Interface
All Available Manuals

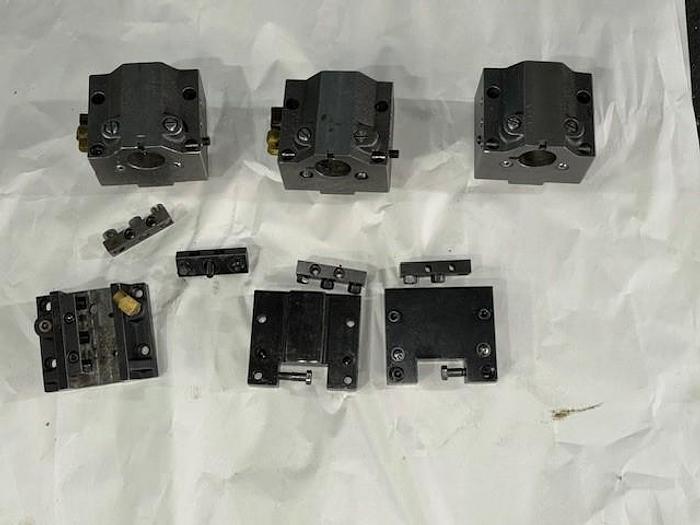

All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | QT20 |
| Year | 1998 |
| Condition | Used |
| Stock Number | 119649 |

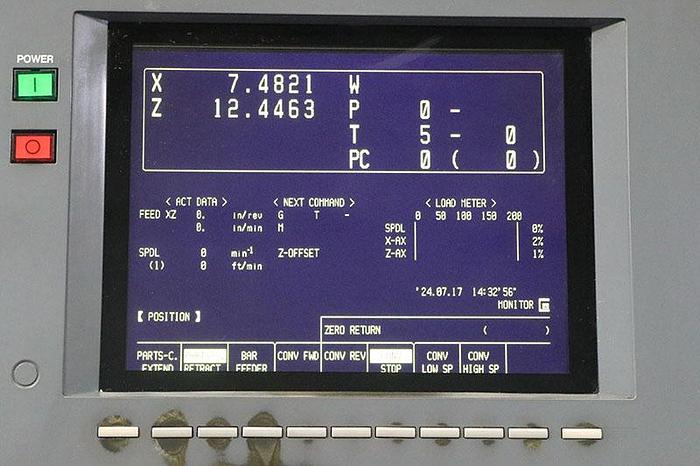

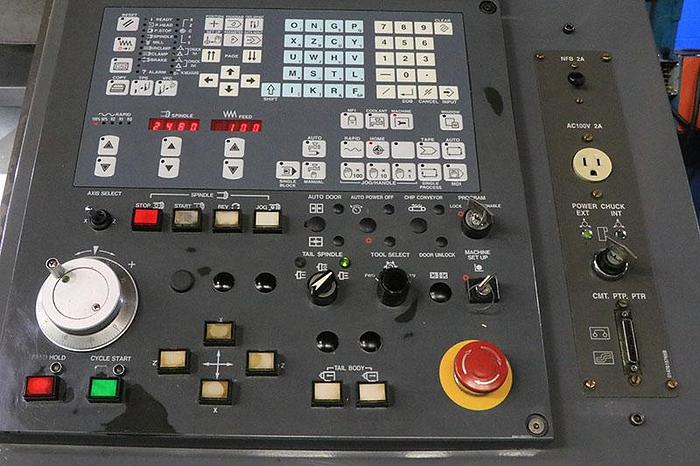

| Machine Control | Mazatrol T-Plus Control |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing | 17.32" |
| Maximum Cutting Diameter | 11.81" |
| Maximum Cutting Length | 17.5" |
| X-Axis Travel | 7.125" |
| Z-Axis Travel | 20.125" |
| Spindle Speeds | 50 - 5,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2" |
| Spindle Motor 30 Minutes/Continuous | 20 HP / 15 HP |

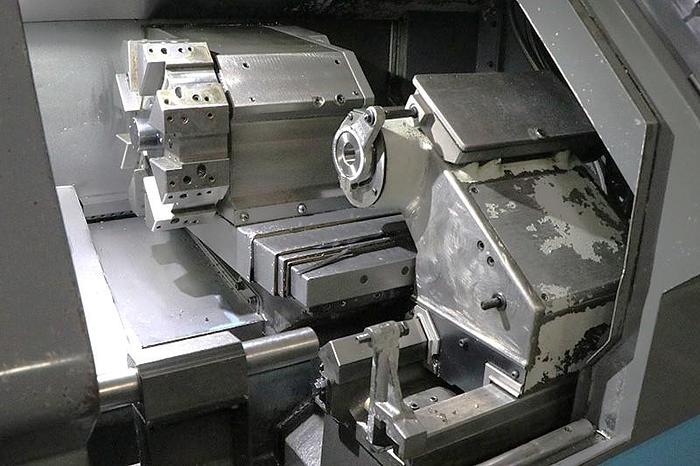

| Number of Turret Positions | 8 Station Turret |
| Rapid Traverse Rates X/Z | 1200 iPM / 1300 IPM |
| Tailstock Body Travel / Quill Travel | 18.11" / 5.12" |
| Tailstock Center | MT #4 |
| Machine Dimensions LxWxH | 105" x 68.5" x 73.1" |
| Machine Weight | 9,370 lbs. |
