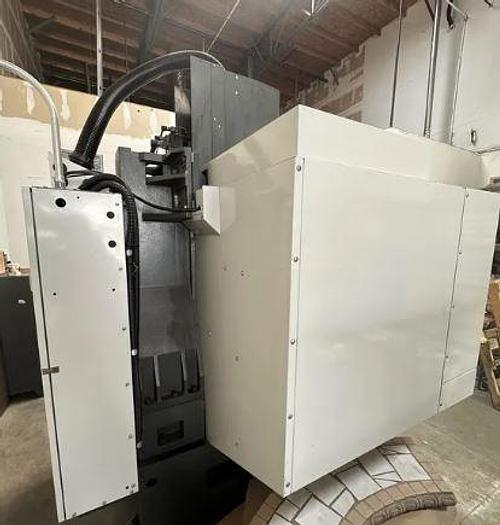

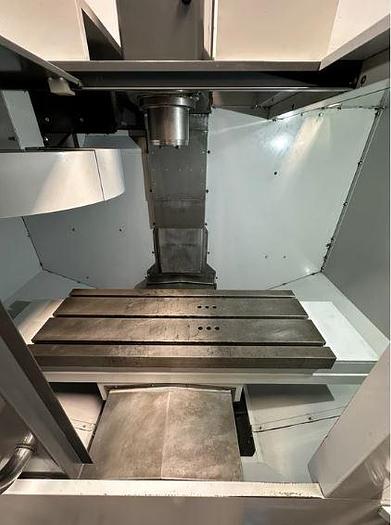

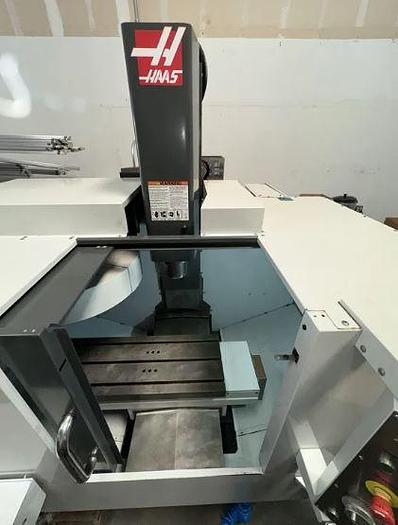

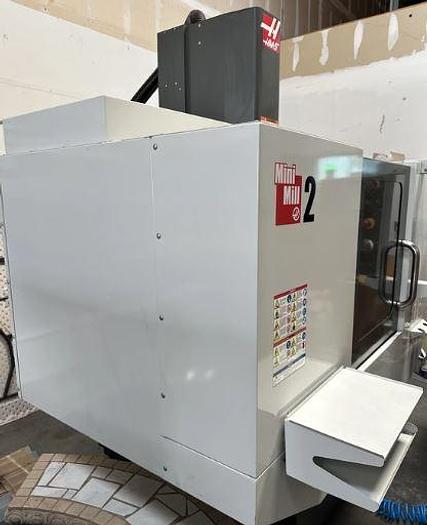

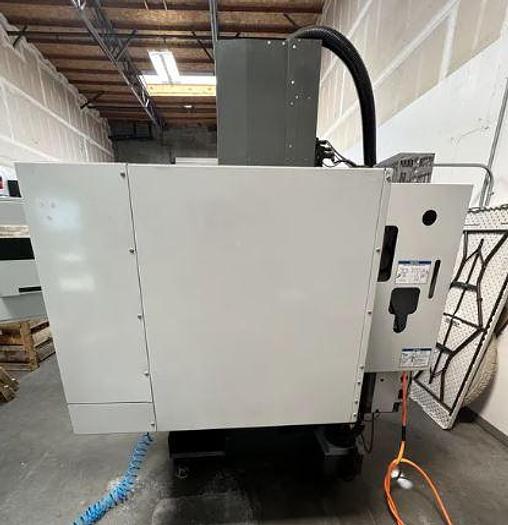

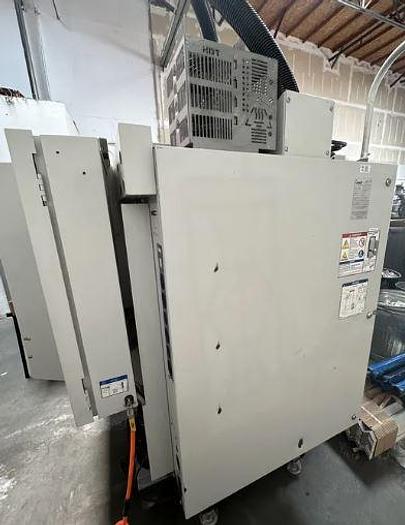

2015 Haas Mini Mill 2
No longer available
2015 Haas Mini Mill 2
Location:Illinois
Description
User Definable Macros
Coordinate Rotation & Scaling
M19 Spindle Orientation
20 Position Tool Changer
Rigid Tapping
High Intensity Lighting
15" Color LCD Monitor
Memory Lock Keyswitch
USB Port Interface
RS 232 Port Interface
LED Work Light
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | Mini Mill 2 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119666 |
| Machine Control | Haas CNC Control |
| Table Size | 40"x14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Rapid Traverse Rates | 600 IPM |
| Tool Magazine Capacity | 20 Station Umbrella Style ATC |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91" x 88" x 100" |
| Machine Weight | 5,100 lbs |
