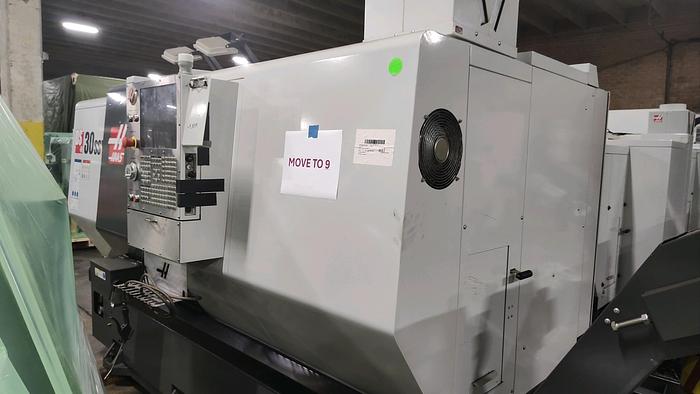

2016 Haas DS-30SSY
2016 Haas DS-30SSY
Contact us for price
Location:North Carolina
orCall (863) 439-6066
Description
Y-Axis
Live Milling (6,000 RPM)
Full C Axis Spindle Rotation

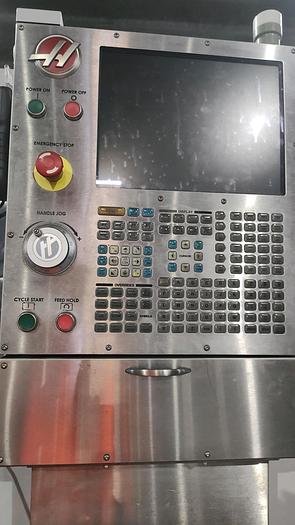

Remote Jog Handle w/LCD Screen
Subspindle
8”, 3-Jaw Hydrauic Chucks (Main & Sub)
24-Station Hybrid VDI/Bolt-On Turret
Royal FilterMist Mist Collector
Tool Presetter
Parts Catcher
Chip Conveyor
Chuck Air Blast
Control Cabinet Cooler
High-Intensity Lighting
Spindle Orientation
Rigid Tapping
USB Port Interface
Specifications
| Manufacturer | Haas |
| Model | DS-30SSY |
| Year | 2016 |
| Condition | Used |
| Stock Number | 119675 |
| Chuck Sizes Main / Subspindle | 8" / 8" |
| Maximum Swing over Bed | 31.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Cutting Length | 23" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| C-Axis Rotation | Full C-Axis |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Motor | 30 HP |
| Spindle Speeds | 0-4,800 rpm |
| Subspindle Nose / Bore / Bar Capcity | A2-5 / 2.44" / 2" |
| Subspindle Motor | 20 hp |
| Subspindle Speed | 4,800 rpm |
| Turret Type | Hybrid Bolt on / VDI 12-Positions |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 5 hp |
| Rapid Traverse Rates X, Y / Z | 472 ipm / 1,200 ipm |
| Machine Dimensions LxWxH | NA |
| Machine Weight | 14,600 lbs |
