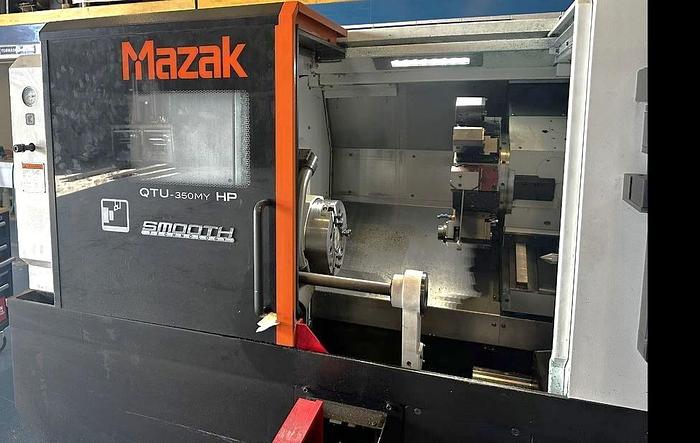

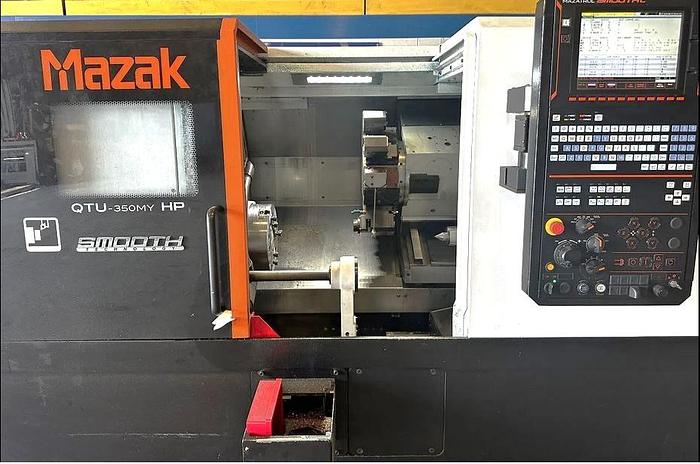

2020 Mazak Quick Turn Universal 350MY HP
2020 Mazak Quick Turn Universal 350MY HP
Contact us for price
Location:Michigan
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Y-Axis Capability
Chip Conveyor
Automatic Parts Catcher
Automatic Tool Eye

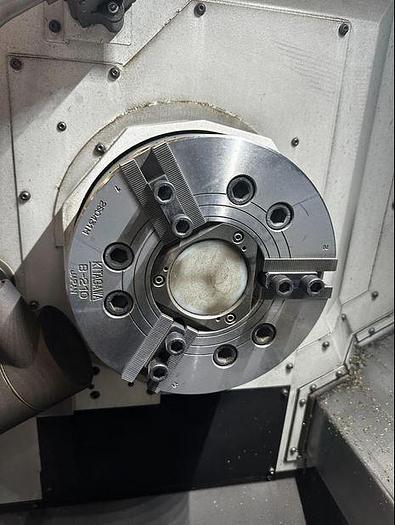

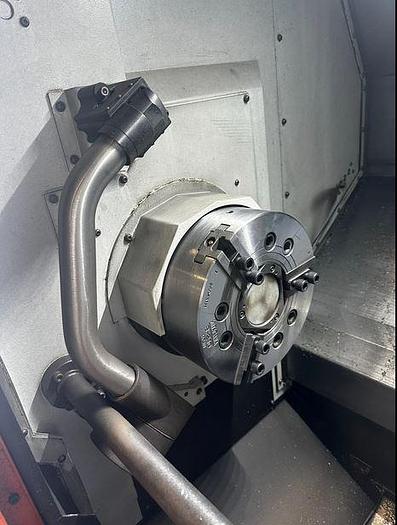

10" 3 Jaw Hydraulic Chuck
213 PSI High Pressure Coolant

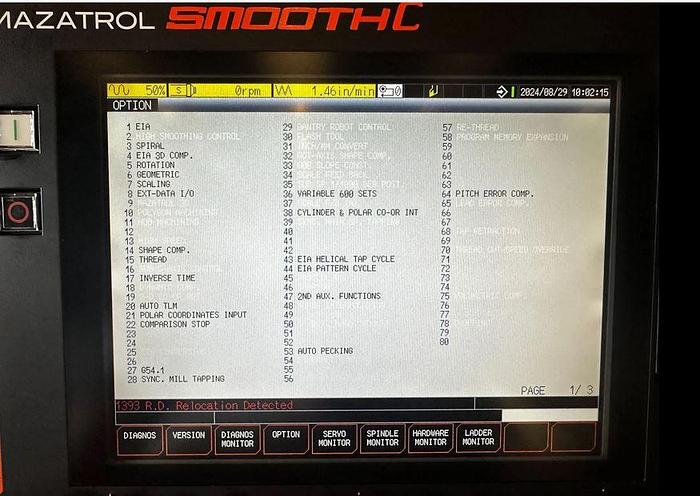

EIA/ISO Input Function (programmable G code)
EIA Helical Tap Cycle
EIA Pattern Cycle
EIA 3D Compensation
Automatic Pecking
2nd Auxiliary Function
Rotation
Geometric
Scaling
External-Date Input/Output
Thread
Inverse Time
Polar Coordinates Input
Comparison Stop
G54.1
Synchronized Tapping
Variable 600 Sets
Cylinder & Polar Coordinate
Pitch Error Compensation
Coolant System with Tank & Pump
(2) Live Tool Holders
All Available Manuals

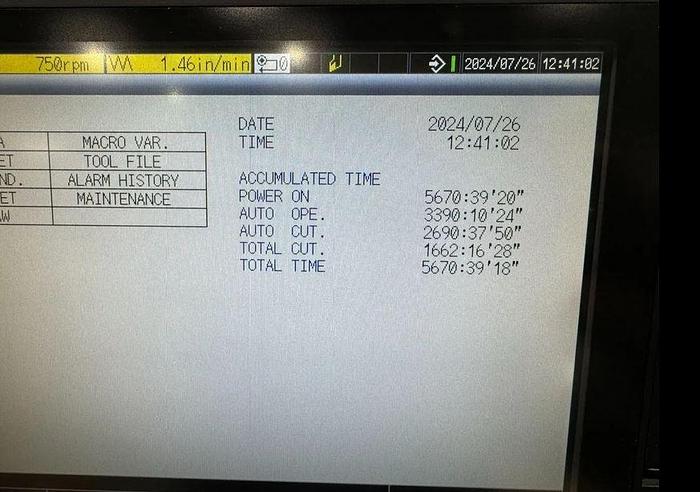

**Total Cutting Hours 1,662**
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn Universal 350MY |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119676 |

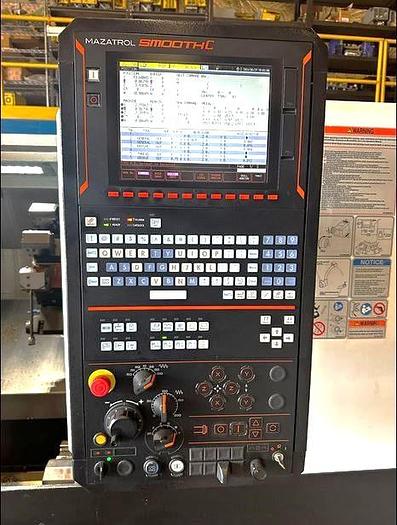

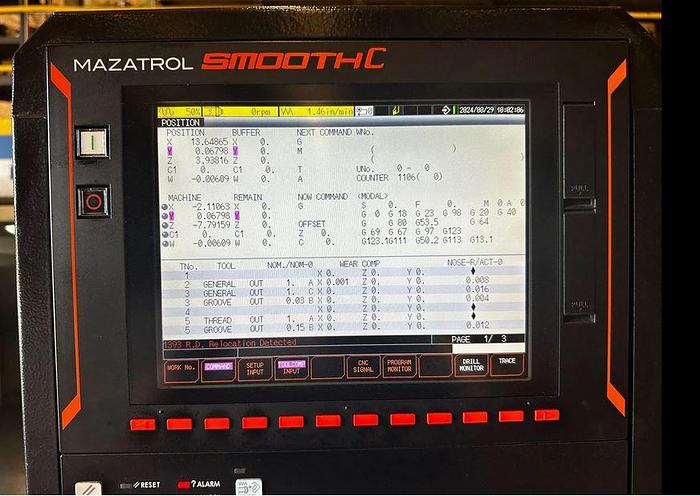

| Machine Control | Mazatrol SmoothC Control |
| Chuck Type | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 29.5" |
| Maximum Cutting Diameter | 16.54" |
| Maximum Cutting Length | 23.8" |
| Distance Between Spindles | 24" |
| X-Axis Travel | 8.5" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 23.75" |
| C-Axis Rotation | .001 Degrees Both Spindles |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.56" / 3.0" |
| Spindle Speeds | 3,500 RPM |
| Spindle Motor - Main | 40 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 10 HP |

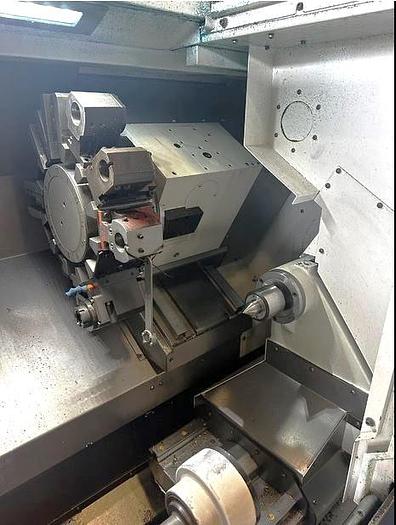

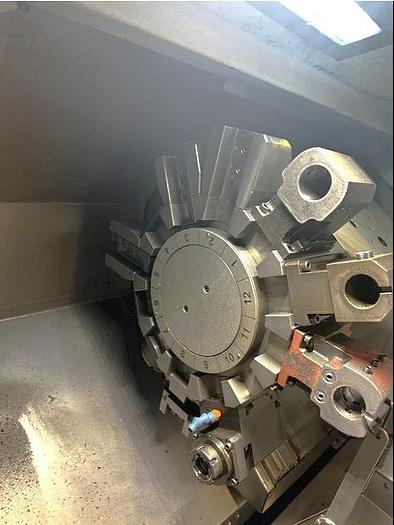

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Y / Z | 1181 ipm / 394 ipm / 1181 ipm |
| Machine Dimensions LxWxH | 104"x67"x68" Approx. |
| Machine Weight | 14,000 lbs |
