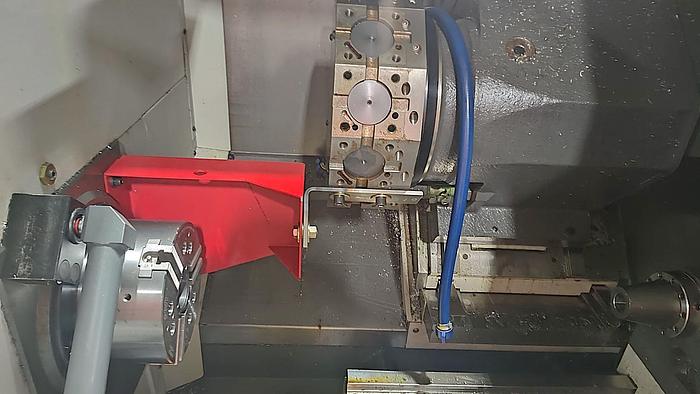

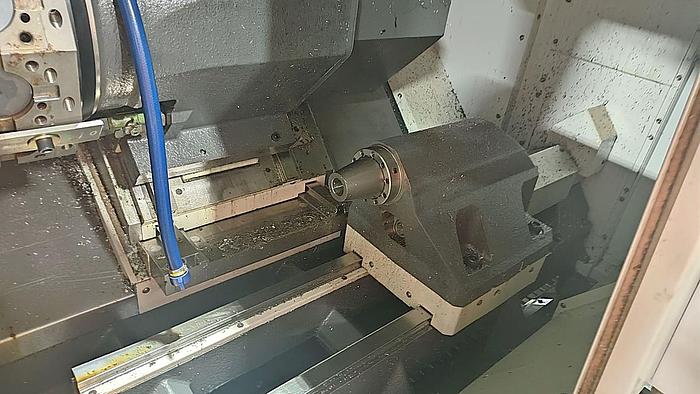

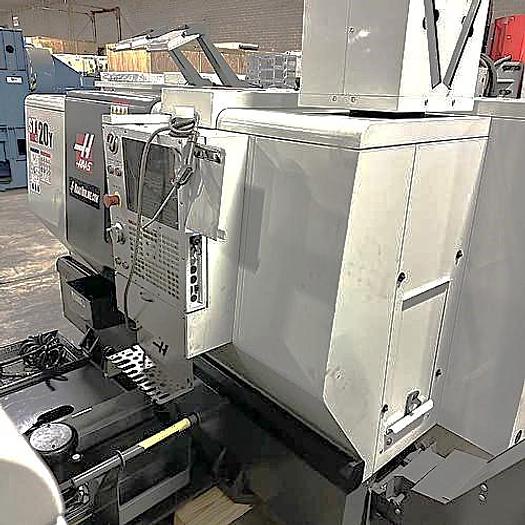

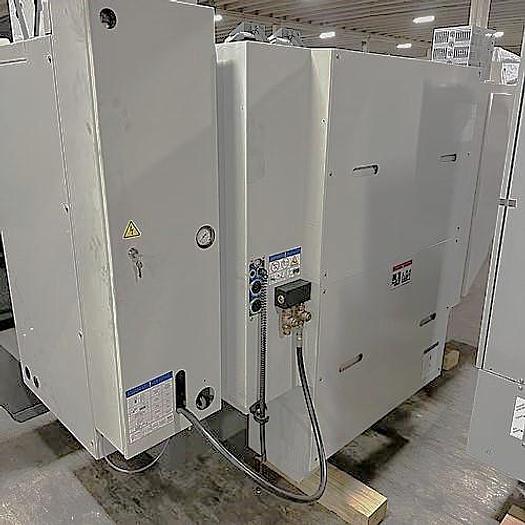

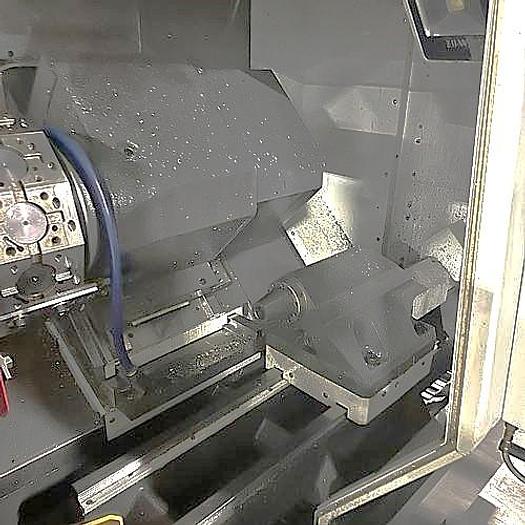

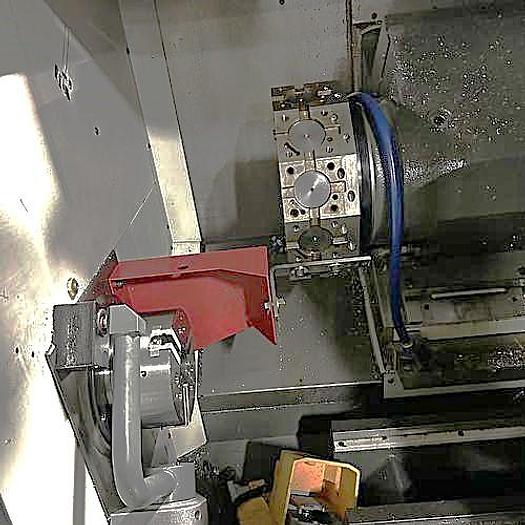

2018 Haas ST-20Y
2018 Haas ST-20Y
Contact us for price
Location:North Carolina
orCall (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis Capability
6,000 RPM Live Tooling 24 Stations
Programmable Tailstock
1,000 PSI High-Pressure Coolant System
Visual Programming System
Belt Type Chip Conveyor
Parts Catcher
Automatic Tool Presetter
Auxiliary Coolant Filter System
High-Intensity Lighting
User Definable Macros
Enclosure Exhaust System
Spindle Orientation
Internal High-Voltage Isolated Transformer
Rigid Tapping
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
All Available Manuals
Wired 440V 3-phase / Full Load 35 Amps
**No Production**
**Replacement Cost $139,700**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119678 |
| Machine Control | Haas CNC Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Speeds | 5,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3.5" / 2.5" |
| Spindle Motor | 30 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 24 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
