2019 Haas ST-15 with Tailstock
2019 Haas ST-15 with Tailstock
$44,500 (USD)
Location:Ohio
orCall (863) 439-6066
Description

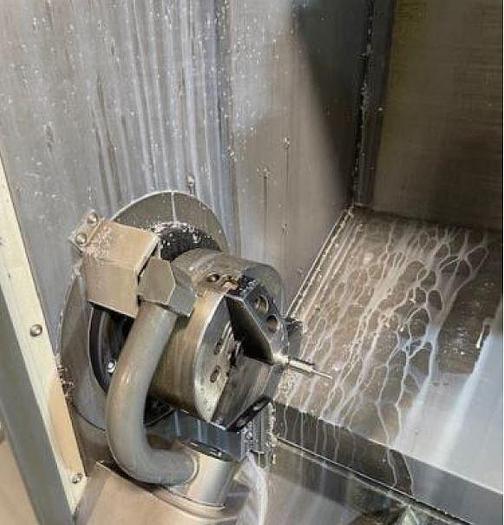

8.3" 3 Jaw Hydraulic Chuck
Tailstock
Tool Presetter
Auto Door

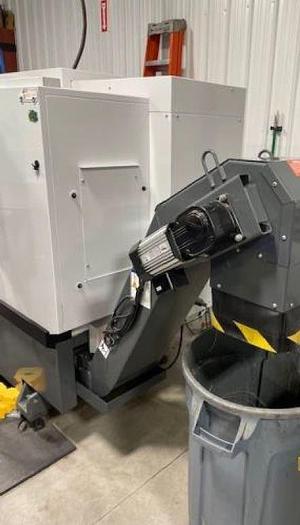

Chip Conveyor
User Definable Macros
Haas Visual Part Programming System
WiFi Interface
RS 232 Port Interface
USB Port Interface
Coolant System with Tank & Pump
Foot Pedal's for Chuck and Tailstock
All Available Tool Holders

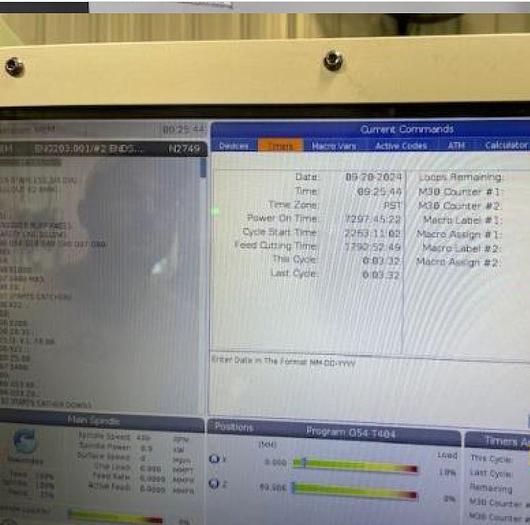

**7,297 Power On Hours**
**1,792 Feed Cutting Hours**
Specifications
| Manufacturer | Haas |
| Model | ST-15 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119680 |
| Chuck Size | 8.3" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 16.5" |
| Maximum Cutting Diameter | 12" |
| Maximum Cutting Length | 16" |
| X-Axis Travel | 7.9" |
| Z-Axis Travel | 16" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3" / 2.5" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 20 HP |

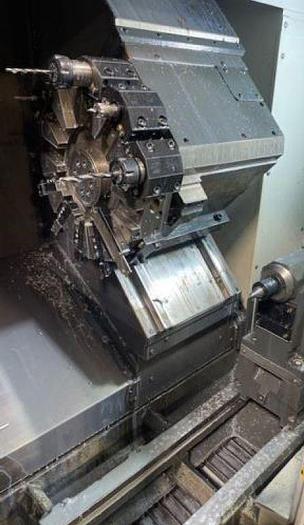

| Number of Turret Positions | 12 Position Block Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Quill Travel | 3.8" |
| Tailstock Center | MT#3 |
| Machine Dimensions LxWxH | 126" x 83" x 71" |
| Machine Weight | 7,900 lbs |
