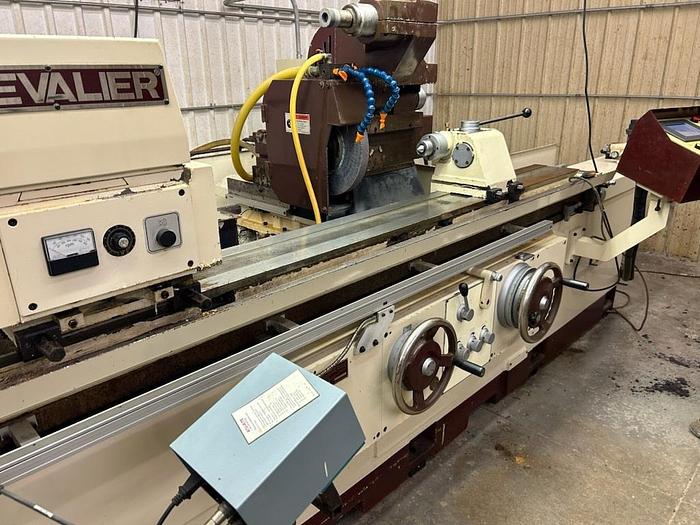

1999 Chevalier CG-1260A Universal Cylindrical Grinder

1999 Chevalier CG-1260A Universal Cylindrical Grinder

Contact us for price

Location:Ohio

orCall (863) 439-6066

Description

Pro-Face PLC Control

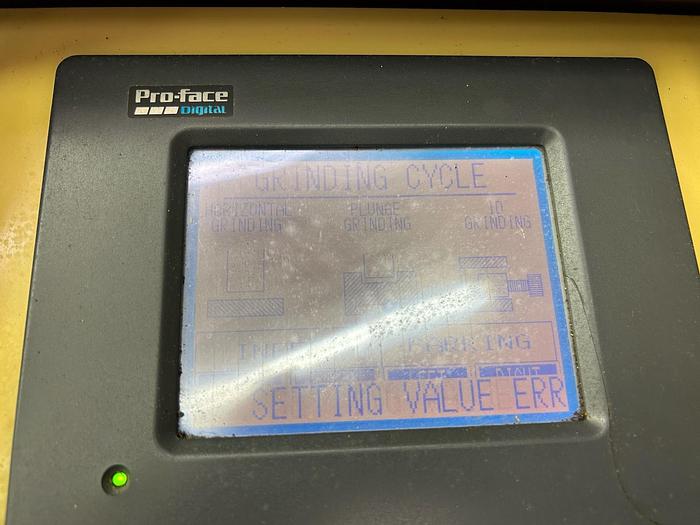

LCD Touch Screen

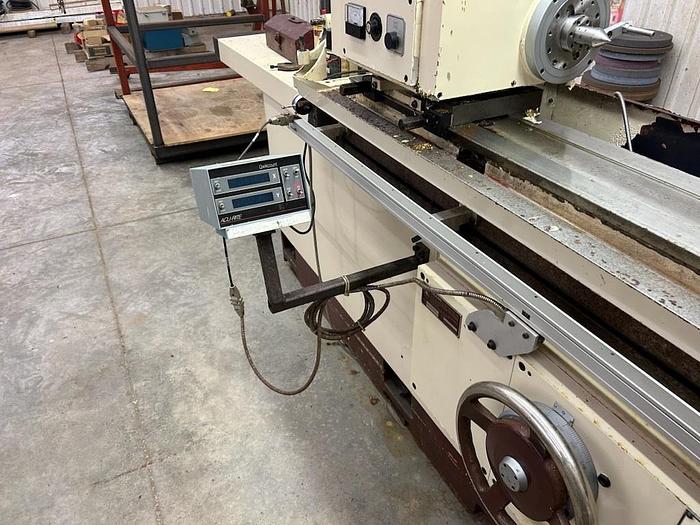

Glass Scales

Stepping Motor for Infeed

Advanced Hydraulic System

Motorized Workhead

Coolant System w/Paper Filter

Diamond Wheel Dresser

Tailstock

Live Center

Barely used


Show All

Specifications

ManufacturerChevalier
ModelCG-1260A
Year1999
ConditionUsed
Stock Number119682
Machine ControlPro-Face Digital
Maximum Grinding Diameter11.18"
Distance Between Centers60"
Grinding Wheel Outside Diameter/Width/Bore16"/2"/5"
WheelHead Swivel Angle+/- 30 Degrees
Table Swivel Angle+/- 5 Degrees
WorkHead SpeedsVariable Range 2 to 118 IPM
Wheel Head Motor5 HP
Internal Grinding Attachment Motor2 HP
Hydraulic Motor2 HP
Machine Dimensions LxWxH190"x83"x77"
Machine Weight12,100 lbs
