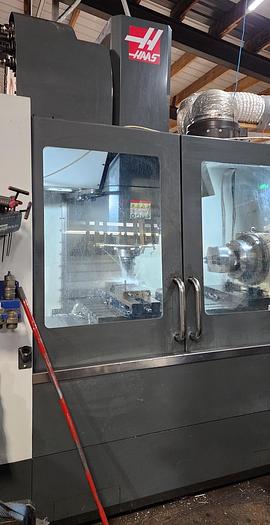

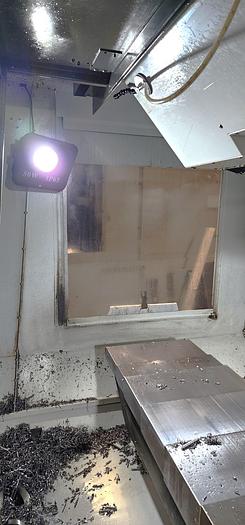

2016 Haas VF5/50 50 Taper VMC
2016 Haas VF5/50 50 Taper VMC
$49,900 (USD)
Location:Washington
orCall (863) 439-6066
Description
50 Taper Spindle Version

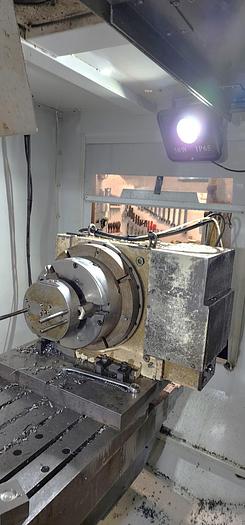

4th Axis Drive and Wiring
30 Station Side Mounted Tool Changer
2-Speed Gearbox
Thru the Spindle Coolant - 1,000 PSI
Programmable Coolant Nozzle
Rigid Tapping
Remote Jog Handle
Visual Quick Code Programming
Auger Style Chip Conveyor
2nd Home Position
95 Gallon Coolant Tank
32 GB Programming Memory
15" Color LCD Monitoring
USB Port Interface
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF5/50 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 119688 |
| Table Size | 52" x 23" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 50" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 30 HP - 2 Speed Geared Head |
| Spindle Torque | 450 ft./lbs |
| Distance Spindle Nose to Table Top | 7" to 32" |
| Tool Magazine Capacity | 30 Position Side Mounted Tool Changer |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions LxWxH | 137"x99"x105" |
| Machine Weight | 16,000 lbs |
