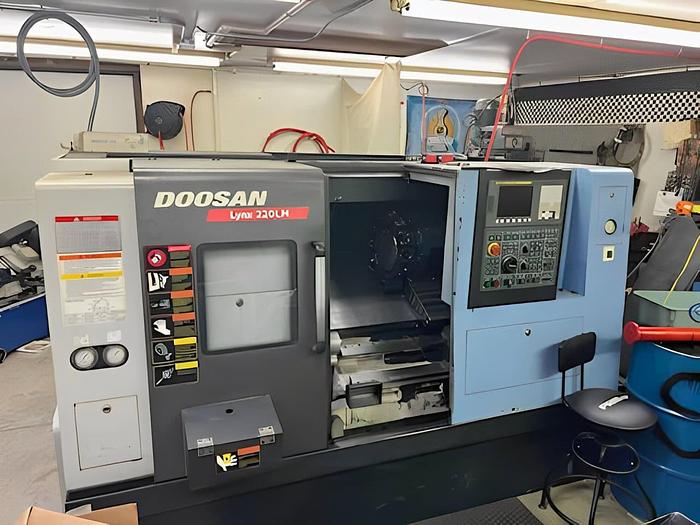

2009 Doosan Lynx 220LMA
2009 Doosan Lynx 220LMA
$37,950 (USD)
Location:Michigan
orCall (863) 439-6066
Description

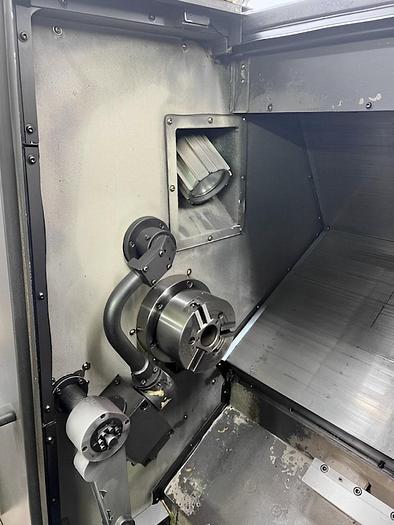

6.5" 3 Jaw Hydraulic Chuck & 3J Collet Chuck
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Parts Catcher

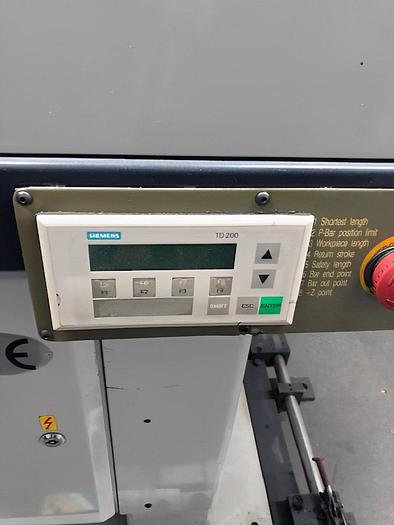

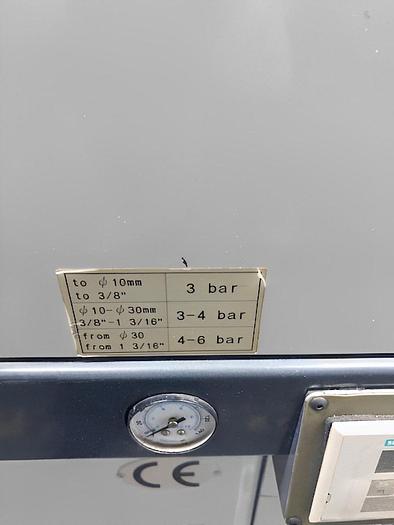

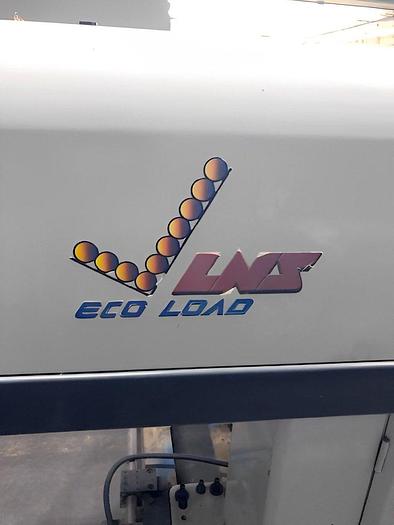

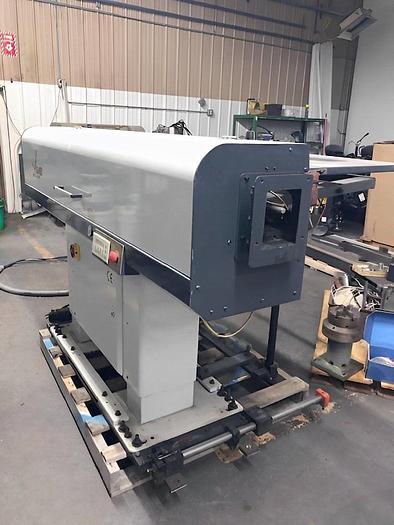

LNS Eco Load Barfeed
Chip Conveyor
Tool Presetter
PCMCIA Card Slot
Programmable Tailstock Quill
LNS Eco Load Barfeed
Complete Coolant System
RS-232C Port for DNC Interface

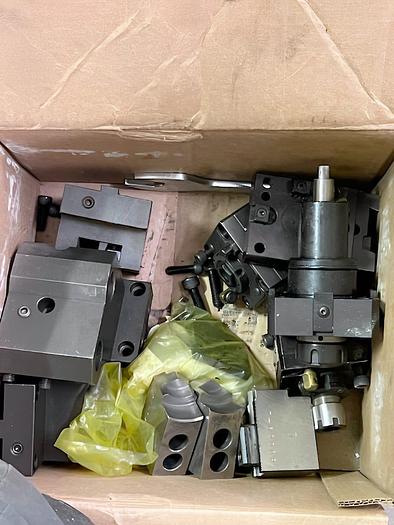

3-Live Tool Holders
All Available Manuals
200/220 V 3-Phase / 68 Amps
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220LMA |
| Year | 2009 |
| Condition | Used |
| Stock Number | 119694 |
| Machine Control | Fanuc Series 1 w/Color LCD |
| Chuck size | 6.5" Hydraulic Chuck |
| Maximum swing over bed | 20.1" |
| Maximum Turning Diameter | 9.8" |
| Maximum turning length | 20" |
| X-axis travel | 6.9" |
| Z-axis travel | 21.7" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2.04" |
| Spindle speed | 40 - 6,000 RPM |
| Spindle motor | 20 HP |

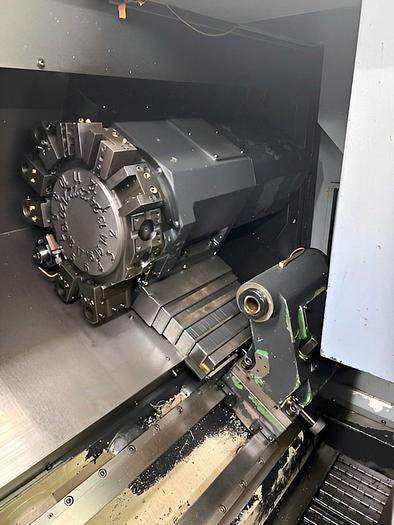

| Turret type | 12 sided/24 positions |
| Rotary tool motor / speeds | 5 HP / 6000 RPM |
| Rapid traverse rates x, z | 1181 PM / 1417 IPM |
| Tailstock Quill Diameter / Center | 2.6" / #4 MT |
| Tailstock quill stroke | 3.14" |
| Machine Dimensions LxWxH | 104"x64"x65" |
| Machine weight | 8,820 lbs |
