2019 Haas ST-45 with Milling and 6.5" Big Bore Bar Capacity
2019 Haas ST-45 with Milling and 6.5" Big Bore Bar Capacity
$164,500 (USD)
Location:California
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
7.1" Spindle Bore with 6.5" Bar Capacity
2-Speed Gearbox
High Pressure Coolant System @ 1000 PSI

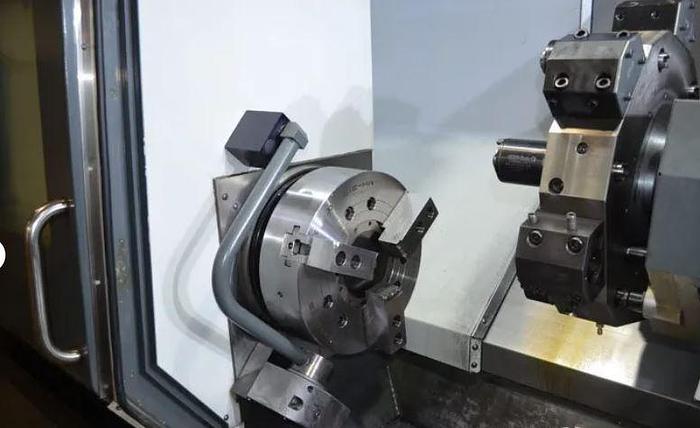

18" Samchully MH-218 3 Jaw Hydraulic Chuck
Extended Tool Pocket up to 33"
Programmable Tailstock
Belt Style Chip Conveyor
Automatic Tool Eye
High Intensity Lighting

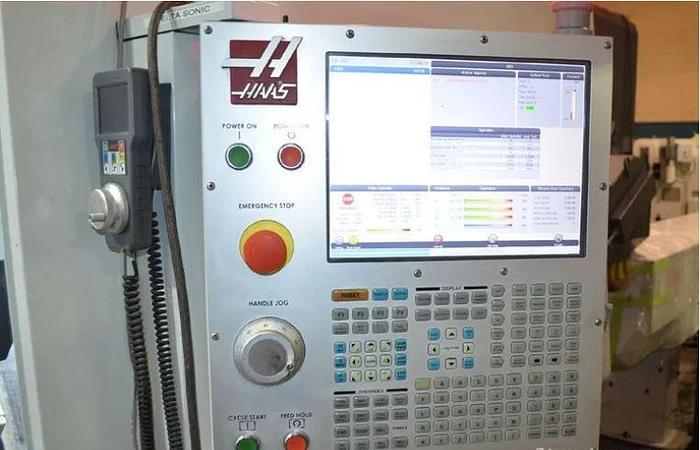

Haas Visual Programming System
1 GB Programming Memory
Remote Jog Handle
Rigid Tapping
Spindle Orientation
Midaco Auto Door System

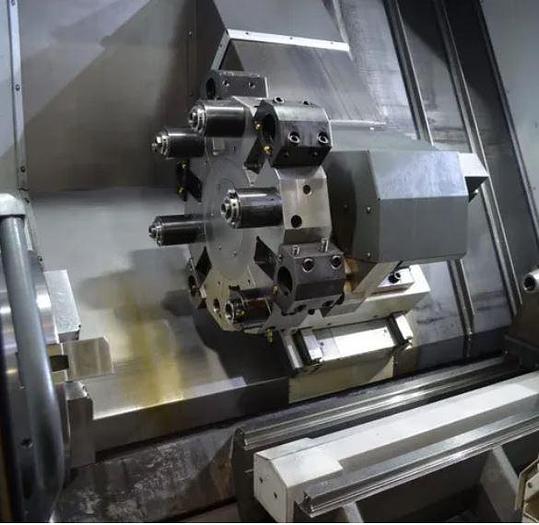

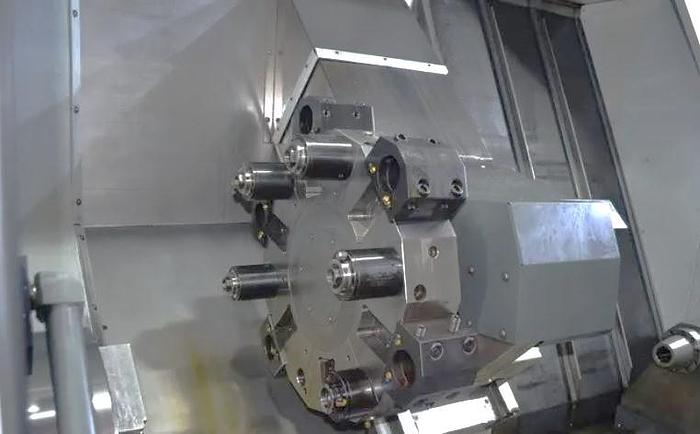

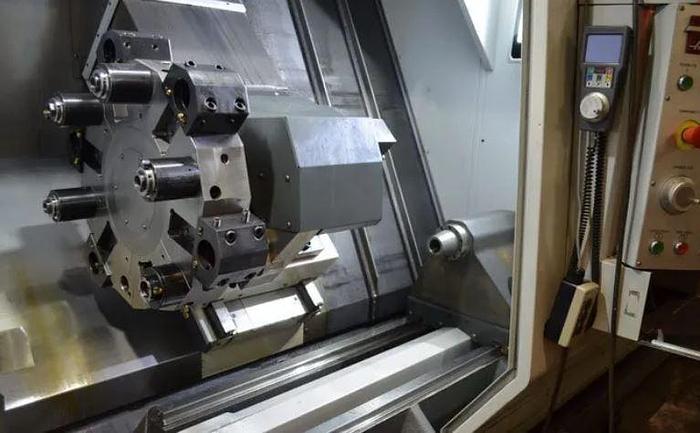

12 Station Hybrid BOT/VDI Type Turret
CNC Control Cabinet Cooler
Enclosure Exhaust System
Early Power Failure Detection Module
Internal High Voltage Isolated Transformer
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Wifi Connection for Haas Control
Media Display by M-Code
Haas Connect Option
Specifications
| Manufacturer | Haas |
| Model | ST-45 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119694 |
| Chuck Size | 18" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 34.5" |
| Maximum Turning Diameter | 25.5" |
| Maximum Machining Length | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 7" / 6.5" |
| Spindle Motor | 40 HP |
| Spindle Speed | 1,400 RPM |
| Number of Turret Positions | 12 Station Hybrid BOT/VDI Turret |
| Spindle Torque | 1,400 ft-lbs @ 150 rpm |
| Rapid Traverse Rates X/Z | 710 IPM |
| Machine Dimensions LxWxH | 217"x96"x105" |
| Machine Weight | 25,900 lbs |
