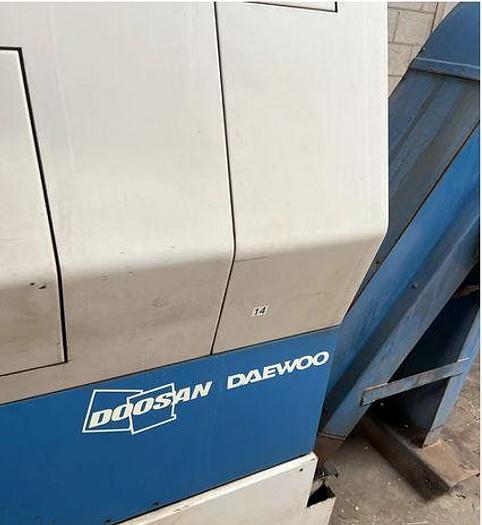

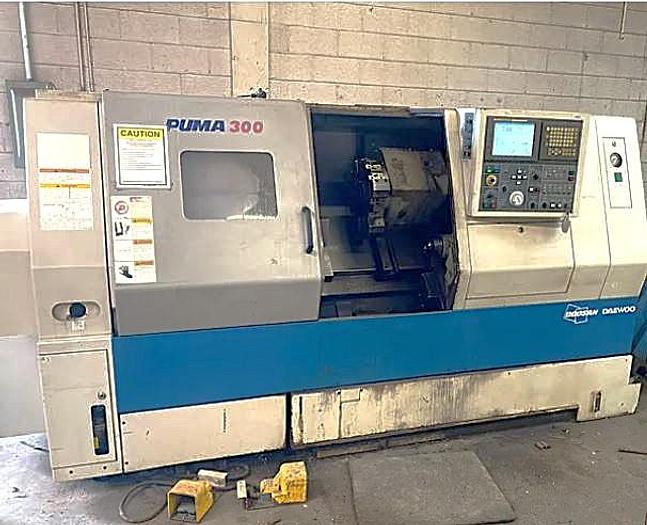

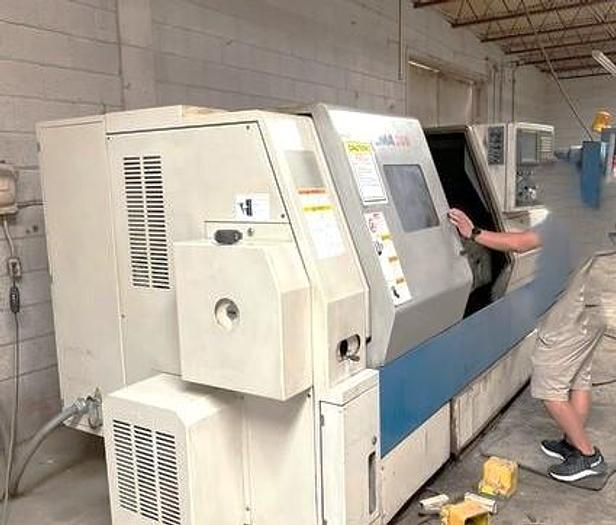

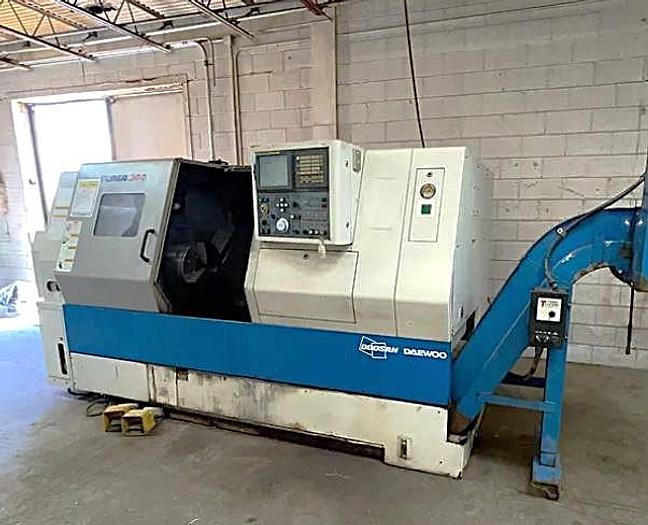

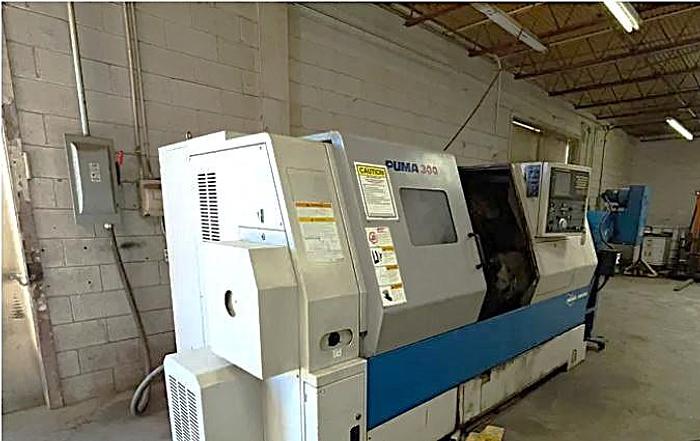

2006 Doosan Puma 300C 2 Axis CNC Lathe - 4" Bar Capacity !!
2006 Doosan Puma 300C 2 Axis CNC Lathe - 4" Bar Capacity !!
$37,900 (USD)
Location:Texas
orCall (863) 439-6066
Description

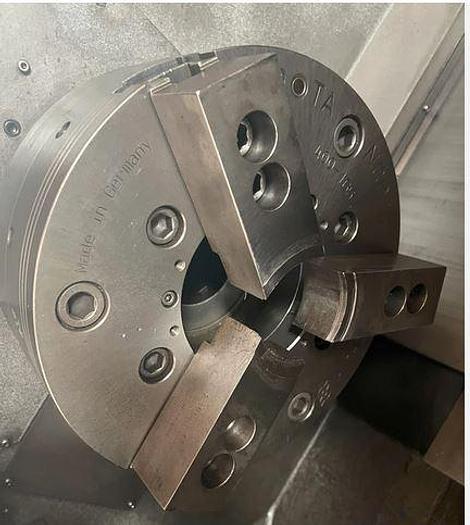

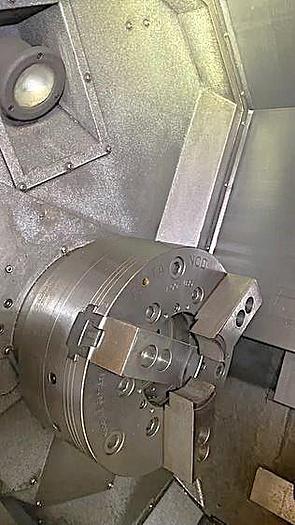

15.75" Schunk Model Rota NCD 400-165 3 Jaw Hydraulic Chuck with 6.5" Through Hole on Chuck ONLY Programmable Tailstock
Chip Conveyor Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface Wired 200/220V Electrics All Available Tooling All Available Manuals

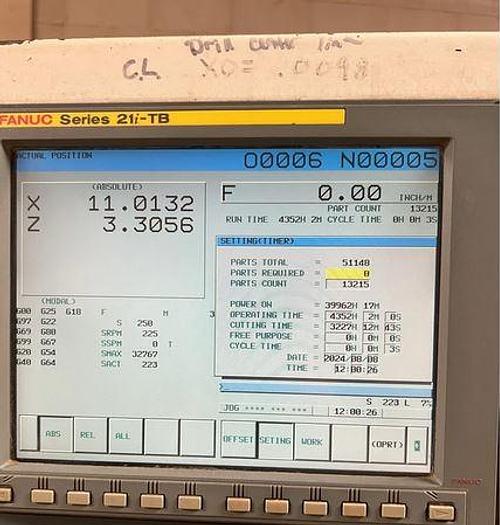

**Operating Hours 4,352**
**Total Cutting Hours 3,227**
Specifications
| Manufacturer | Doosan |
| Model | Puma 300C |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119696 |

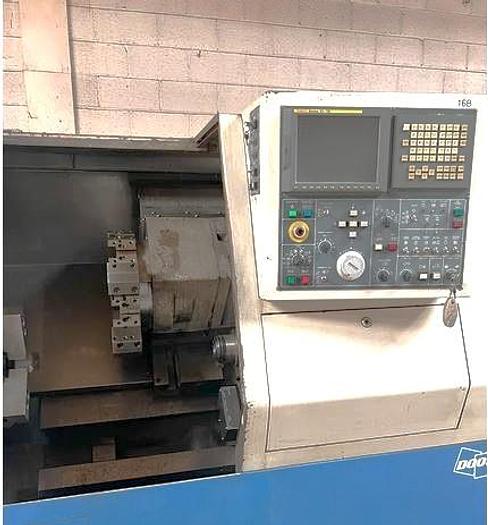

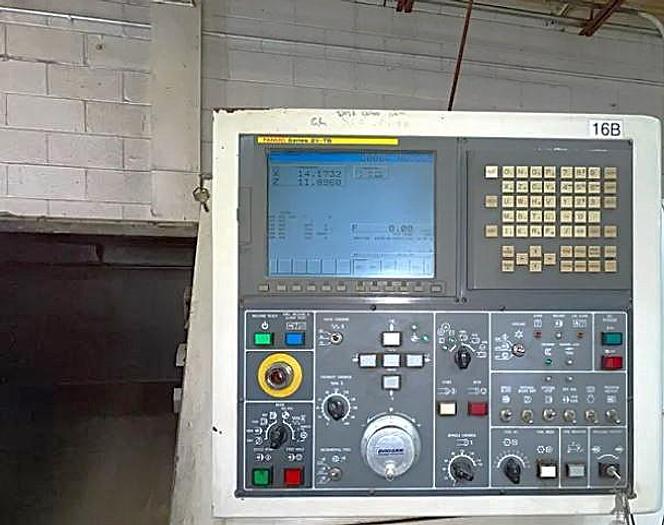

| Control | Fanuc 21i-TB |
| Chuck Size | 15.75" 3 Jaw Chuck |
| Maximum Swing over Bed | 23" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Turning Diameter | 15.7" |
| Maximum Turning Length | 24.8" |
| Maximum Bar Capacity | 4.0" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 26.8" |
| Spindle Nose / Spindle Bore | A2-11" / 4.53" |
| Spindle Speeds | 28 - 2,800 RPM |
| Spindle Motor | 35 HP |
| Transmission | 2 Speed Gearbox |

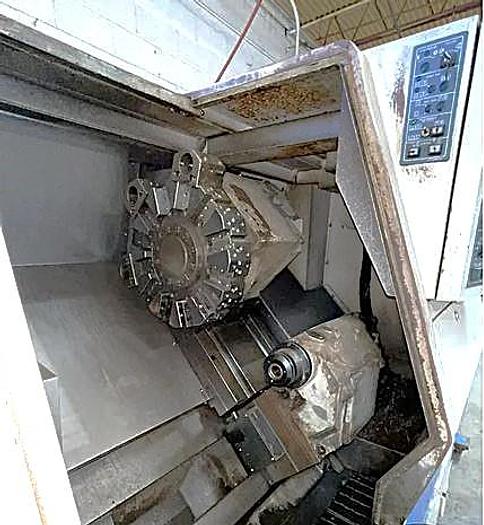

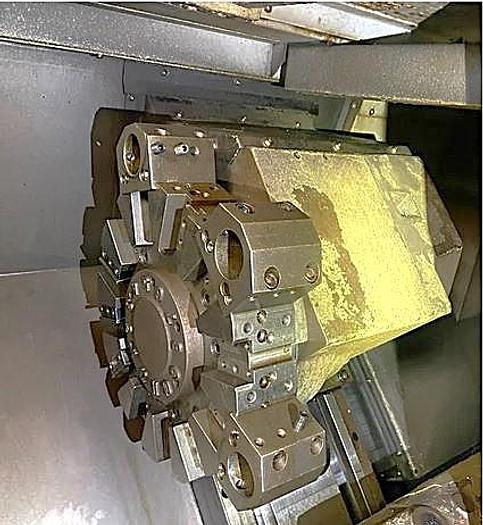

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |
| Tailstock Quill Diameter / Travel | 3.94" / 3.94" |
| Machine Dimensions | 135" x 77" x 80" |
| Machine Weight | 13,892 lbs. |
