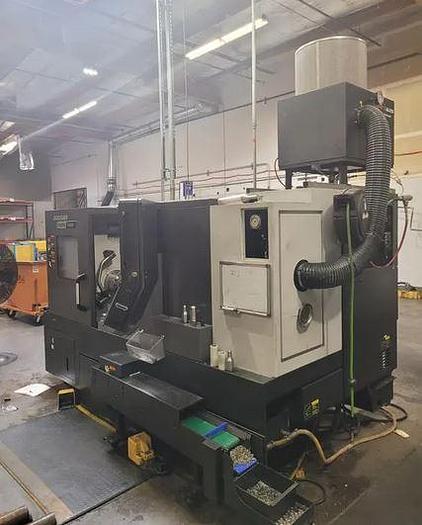

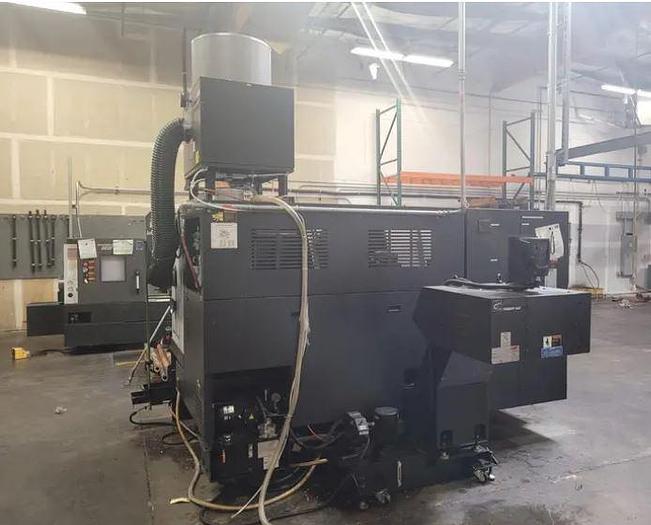

2020 Doosan Puma 2600S Lathe with Subspindle
2020 Doosan Puma 2600S Lathe with Subspindle
$96,000 (USD)
Location:Oregon
orCall (863) 439-6066
Description

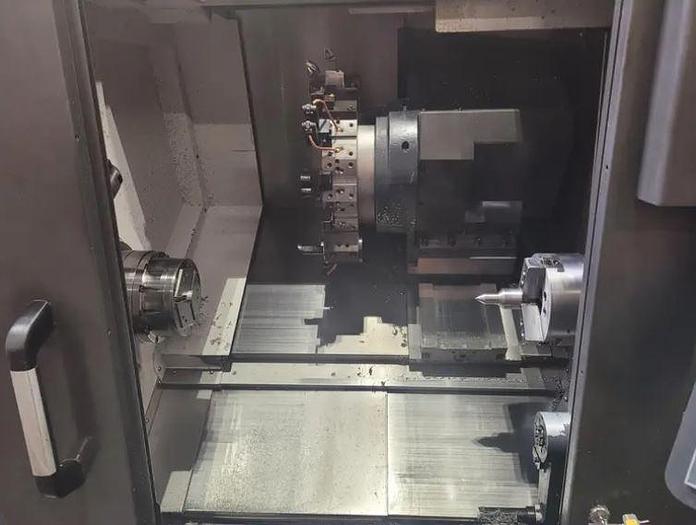

Subspindle 10" 3 Jaw Hydraulic Chuck
Tool Presetter

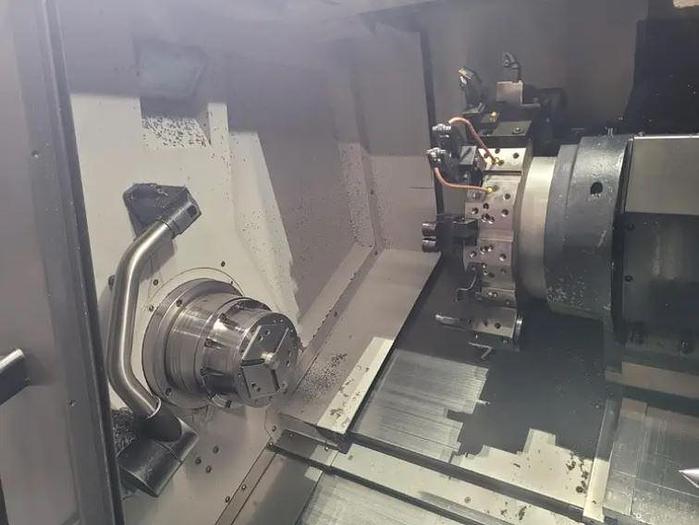

Automatic Parts Catcher

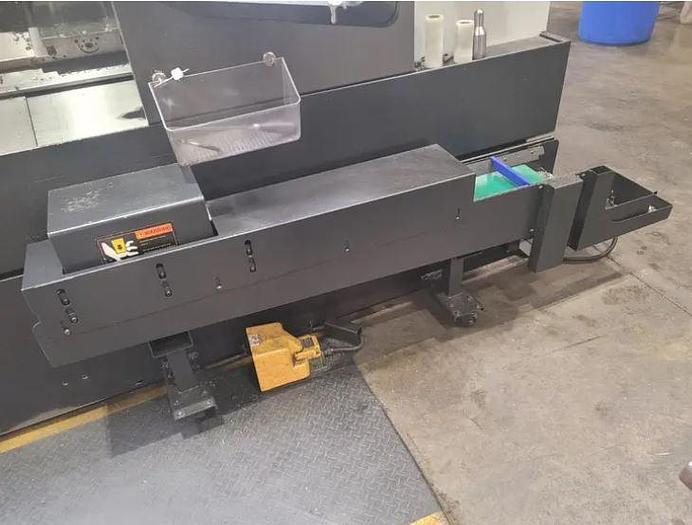

Parts Exit Conveyor

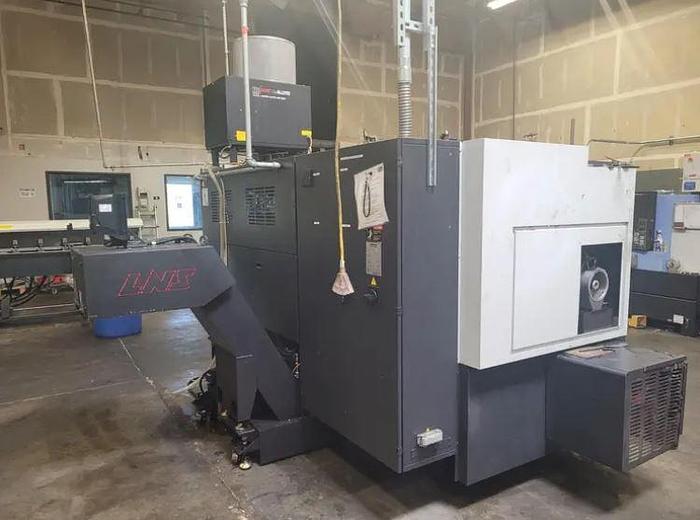

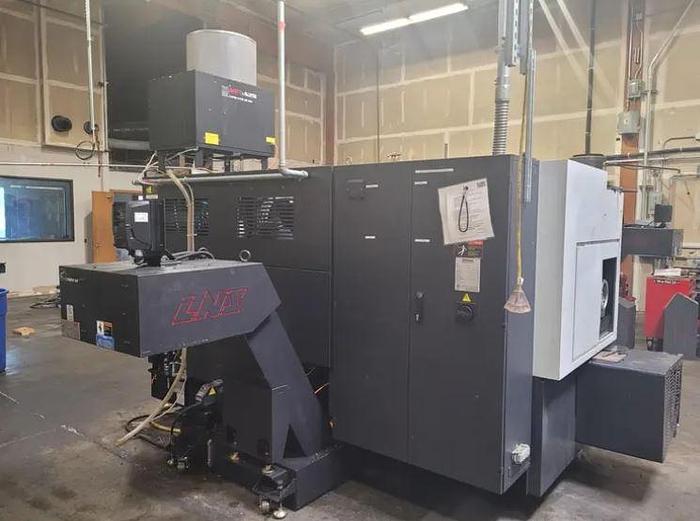

Chip Conveyor - Rear Exit Type

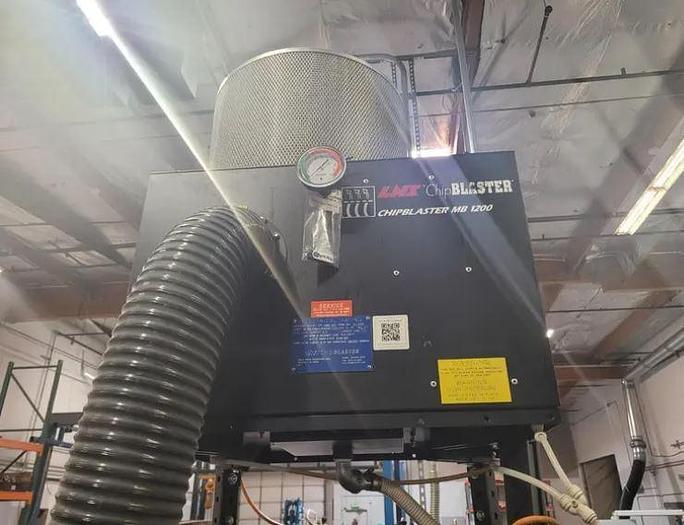

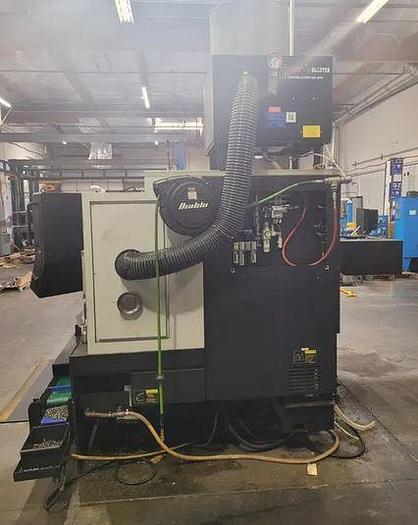

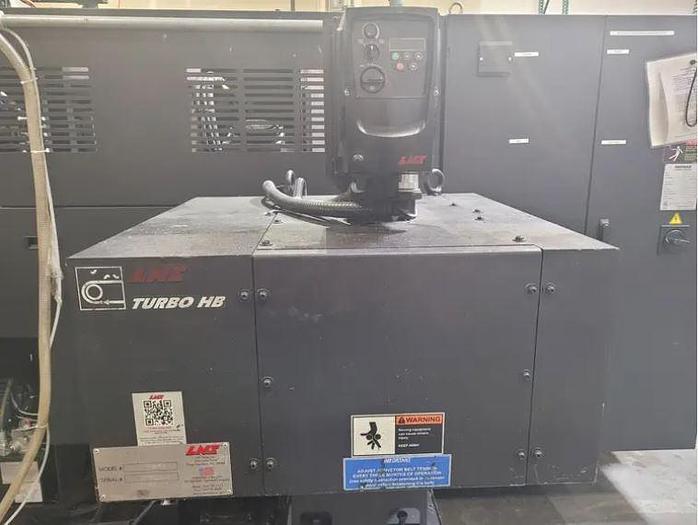

LNS Chip Blaster MB 1200 Centrifugal Type Mist Collector
PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways
Wired 220V Electrics
**Machine Manufactured New in October of 2020**
**SHOP CLOSED, MACHINE IS NOT CURRENTLY UNDER POWER, BUT CAN BE PUT TO POWER**
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600S |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119697 |

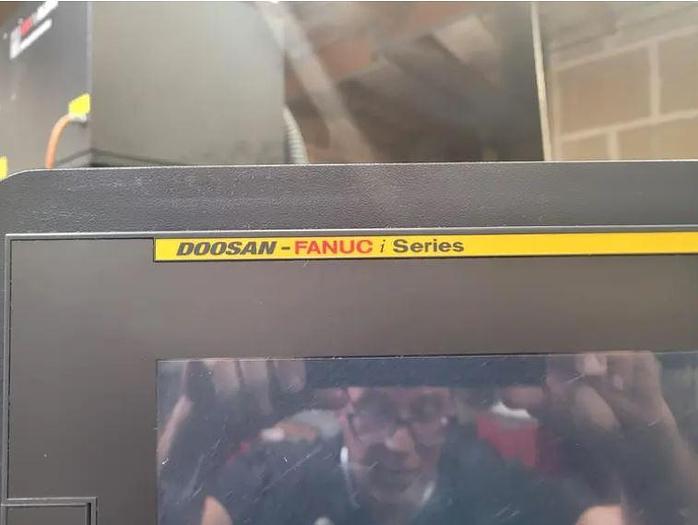

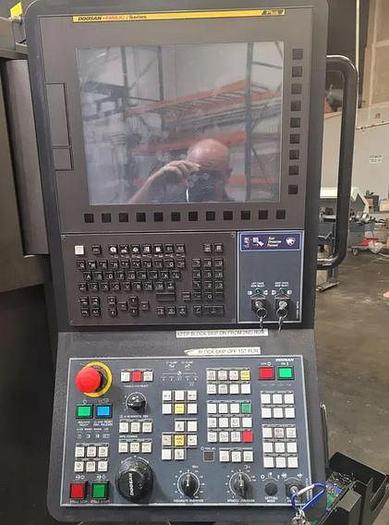

| Control | Fanuc i Series Control |
| Chuck Size | 10" 3-Jaw Main Spindle |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 20.47" |
| Maximum Bar Capacity | 3" Main Spindle |
| X-Axis Travel | 10.23" |
| Z-Axis Travel | 23.22" |
| Spindle Nose / Spindle Bore | A2-8" Main Spindle / A2-5" Subspindle / 3.34" Main Spindle Bore / 2.4" Subspindle Bore |
| Spindle Speeds - Main | 2,800 RPM |
| Spindle Motor - Main | 30 HP |
| Subspindle Speed / Motor | 4,500 RPM / 11 HP |

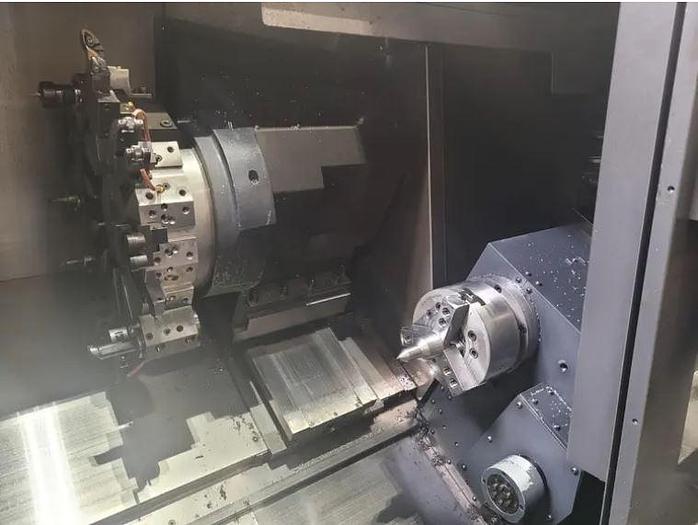

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 174" x 80" x 90" |
| Machine Weight | 12,100 lbs. |
