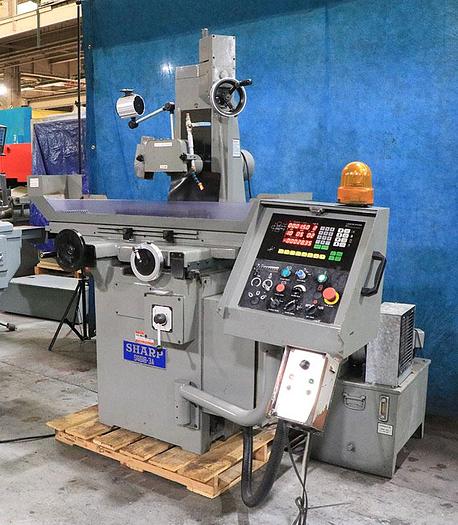

2003 Sharp SG-618-3A
No longer available
2003 Sharp SG-618-3A
Location:New Jersey
Description
6"x18.3" Magnetic chuck
Work Light
Automatic Table Feed & Cross Feed
Automatic Return to Zero
Traverse and Plunge Grinding Auto Cycles
Locking System Combined with Cross Feed Ball Screw
Automatic Lubrication System
Advanced Hydraulic System
Cooling System for Oil Tank

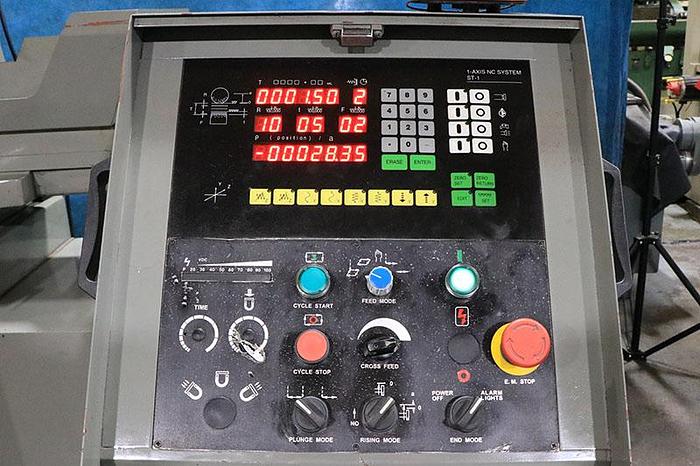

Computer Controlled Automatic Downfeed

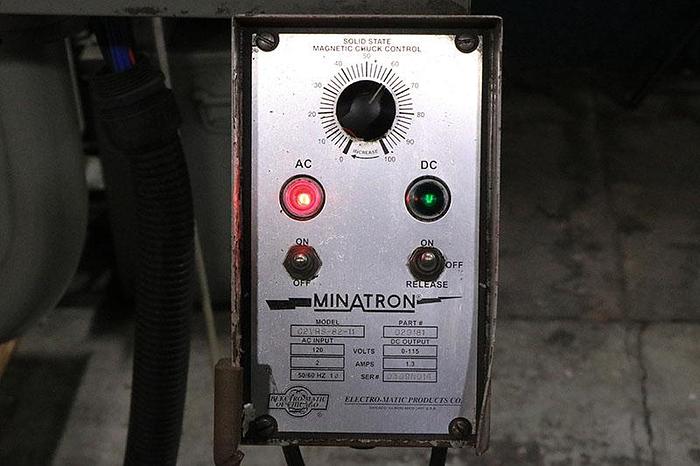

6"x18" Kanetsu Fine-Division Electro Magnetic Chuck
Coolant System
220v/440V 3-phase
Specifications
| Manufacturer | Sharp |
| Model | SG-618-3A |
| Year | 2003 |
| Condition | Used |
| Stock Number | 119701 |
| Table Size | 18.3"x6" |
| X-Axis Travel | 21.6" |
| Y-Axis Travel | 7" |
| Table to Spindle Center | 15.7" |
| Maximum Grinding Length | 19.7" |
| Spindle Motor | 1.5 hp |
| Grinding Wheel Diameter | 8" |
| Grinding Wheel Width | .63" |
| Wheel Speed | 3,600 ipm |
| Machine Dimensions LxWxH | 83"x51"x80" |
| Machine Weight | 2,200 lbs |
