2016 Chevalier 618SP Super Precision Surface Grinder
No longer available
2016 Chevalier 618SP Super Precision Surface Grinder
Location:Florida
Description
Roller Bearing Table

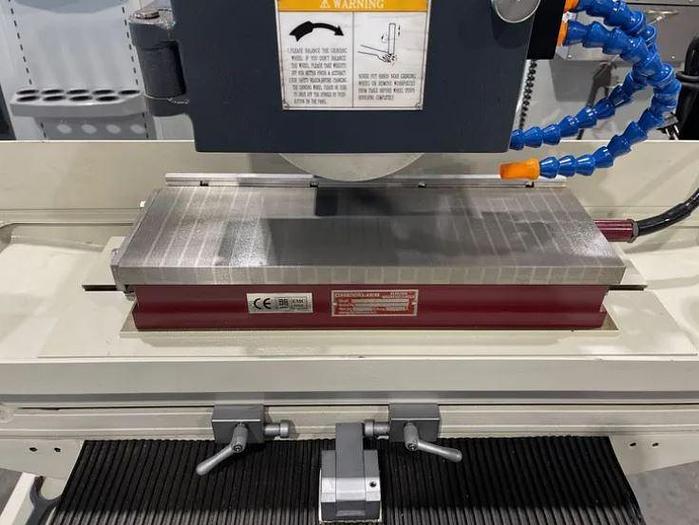

6"x18" Magnetic Chuck

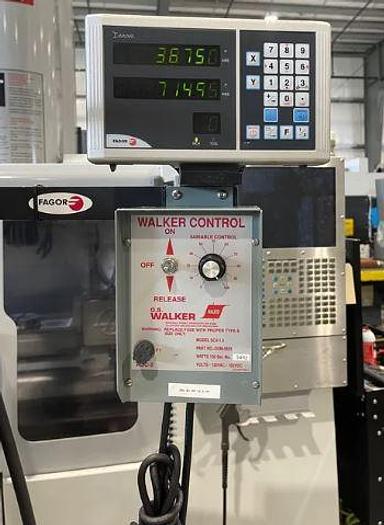

OS Walker Chuck Controller
Work Light

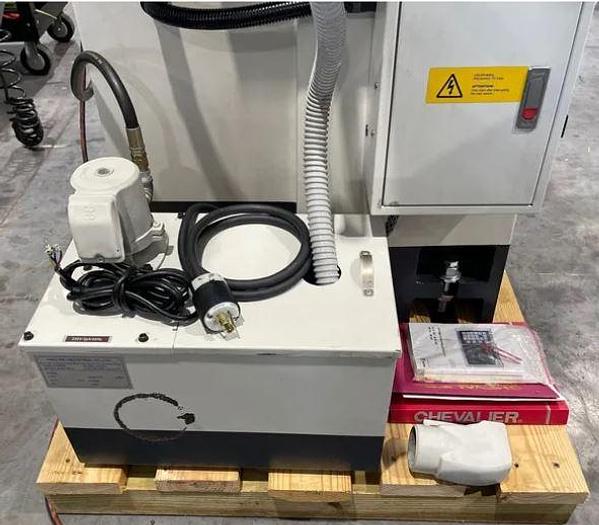

Coolant Tank & Pump
230 V 3-Phase
**Out of a Laboratory, very little use**
Specifications
| Manufacturer | Chevalier |
| Model | 618SP Super Precision Surface Grinder |
| Year | 2016 |
| Condition | Used |
| Stock Number | 119705 |
| Machine Control | Fagor DRO |
| Maximum Grinding Length | 20.1" |
| Maximum Grinding Width | 8" |
| Distance from Table Surfacae to Spindle Centerline | 20" |
| Spindle Speed | 3,450 rpm |
| Spindle Motor | 2 hp |
| Wheel Size | 8" Diameter x 1/2" x 1.25" Bore |

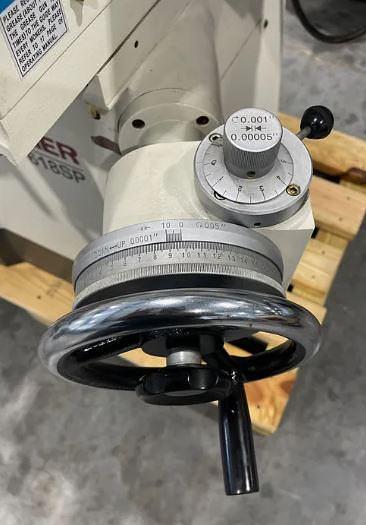

| Vertical Handwheel per Graduation | .0001 |
| Micro Feed per Graduation | .00005 |
| Machine Dimensions LxWxH | 58"x48"x80" |
| Machine Weight | 2,600 lbs |
