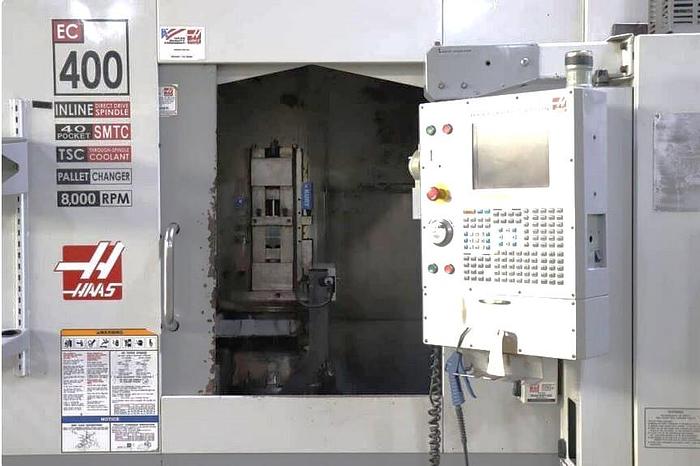

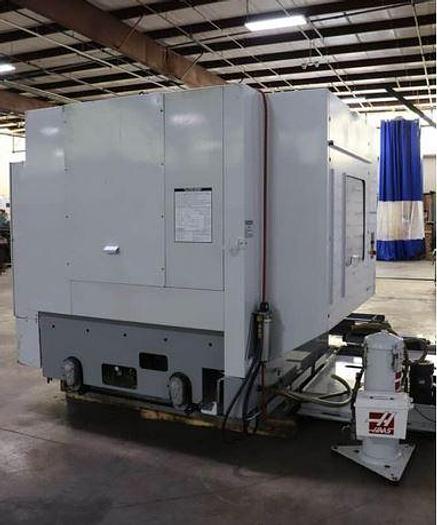

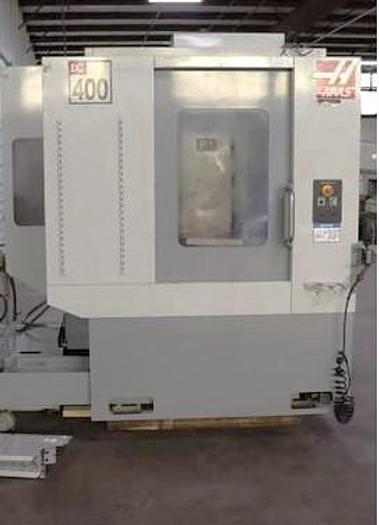

2006 Haas EC-400 with 2 Pallet Changer
2006 Haas EC-400 with 2 Pallet Changer
Contact us for price
Location:Georgia
orCall (863) 439-6066
Description

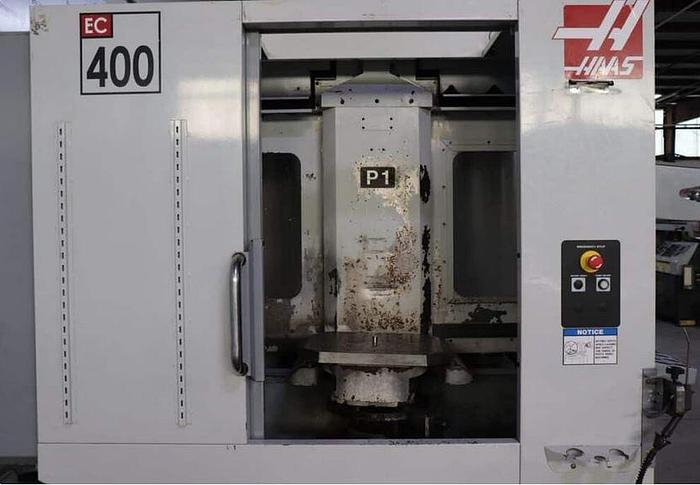

2 Pallet Changer System

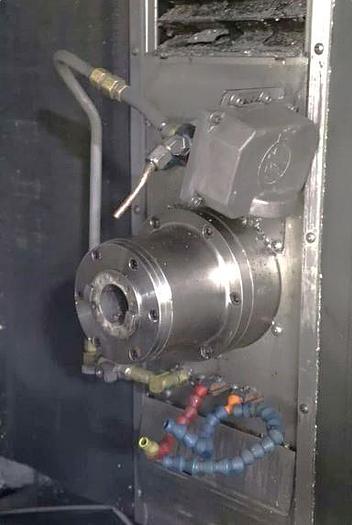

Coolant Thru the Spindle

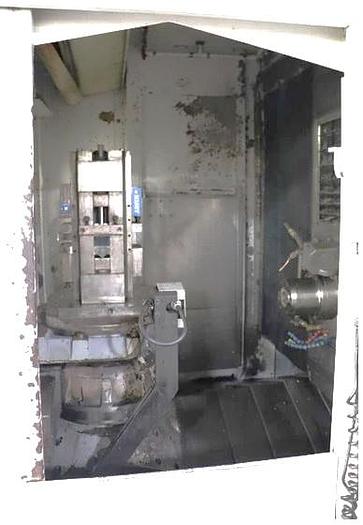

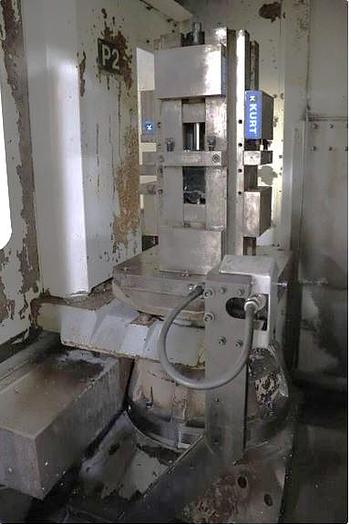

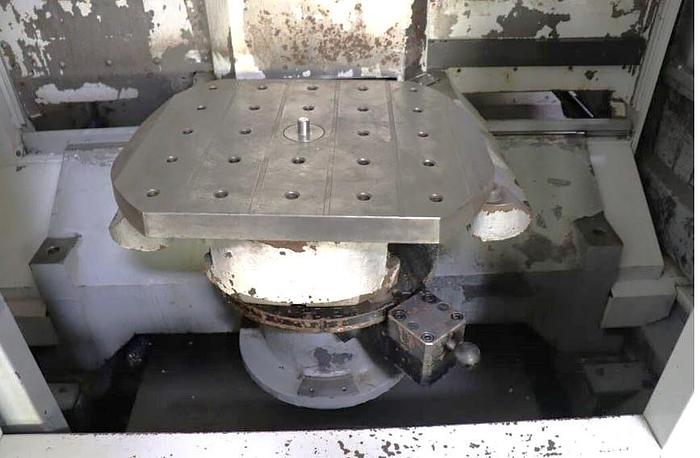

4th Axis Rotary Table

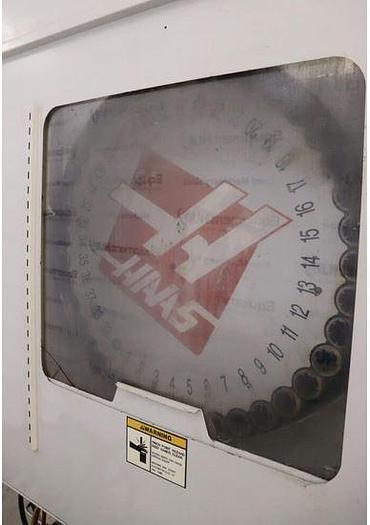

40 Station Tool Changer
Remote Jog Handle

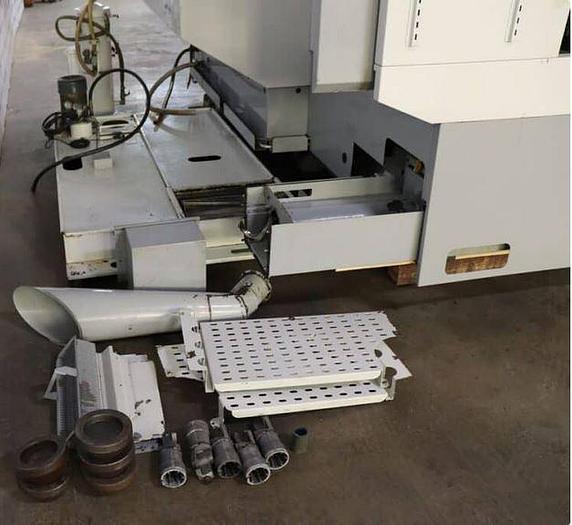

Auger Style Chip Conveyor
Programmable Coolant Nozzle
Auxiliary Coolant Filter System
Coolant Tank with Pump
Flood Coolant System
3.5" Floppy Disk Drive
RS-232C Port Interface

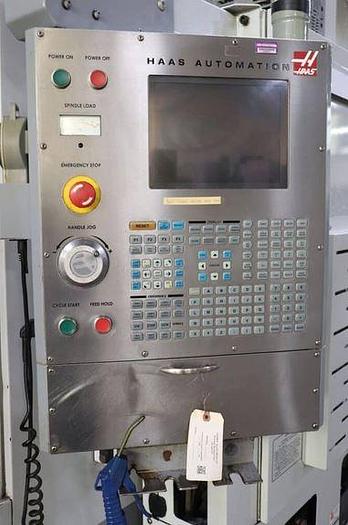

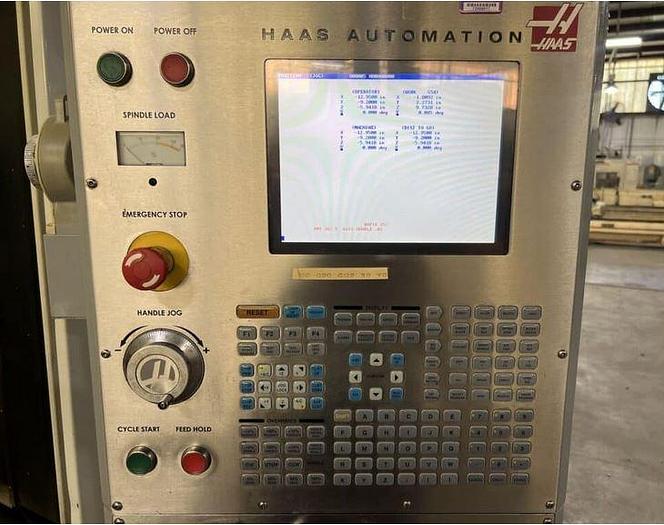

Haas Control w/14" Color LCD Screen
All Available Manuals
Electrics Wired 360-480V

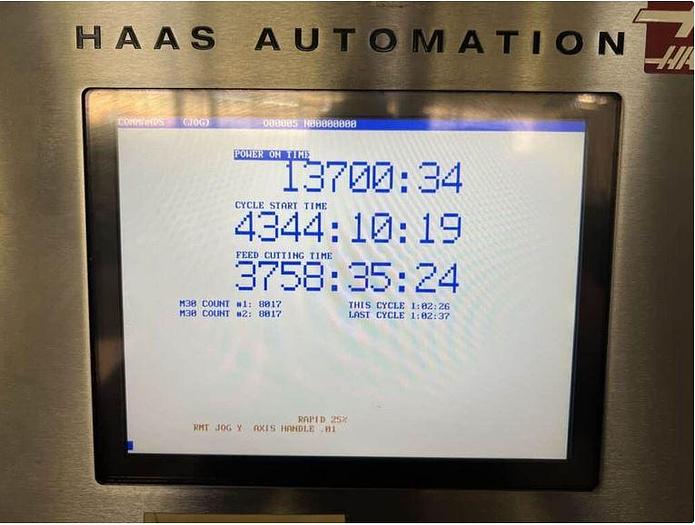

**4,344 Cycle Start Hours**
**3,758 Feed Cutting Hours**
Specifications
| Manufacturer | Haas |
| Model | EC-400 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119711 |
| Pallet size / number of pallets | 15.75"x15.75" / 2 pallet |
| Table load capacity | 1,000 lbs |
| Pallet indexing | .001 Degree Index |
| X-axis travel | 22" |
| Y-axis travel | 25" |
| Z-axis travel | 22" |
| Spindle speed | 8,000 RPM |
| Spindle taper | CT 40 |
| Spindle motor | 30 HP |
| Tool magazine capacity | 40 + 1 Position Side Mounted ATC |
| Cutting feedrate | 500 IPM |
| Max. tool diameter | 3.0" |
| Rapid traverse rates | 1,000 IPM |
| Tool change time (tool to tool / chip to chip) | 2.1 seconds / 3.7 seconds |
| Machine dimensions lxwxh | 133" x 135" x 101" |
| Machine weight | 21,000 lbs. |
