2006 Doosan Lynx 220LC
2006 Doosan Lynx 220LC
$27,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Tool Pre-Setter

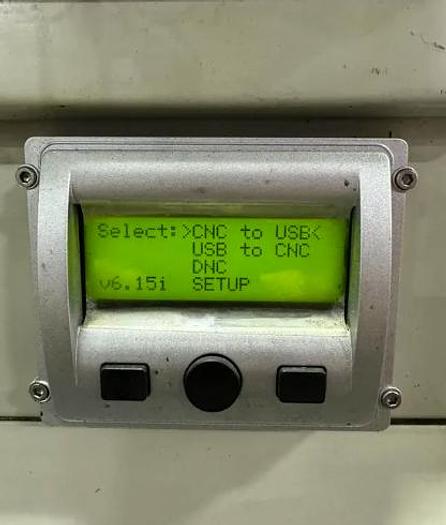

USB Drive
Parts Catcher (No Basket)
Chip Conveyor

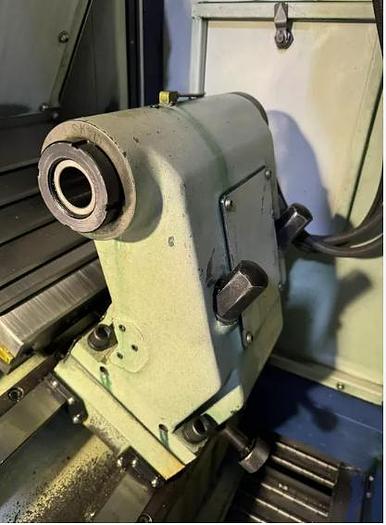

Programmable Tailstock Quil
All Available Manuals

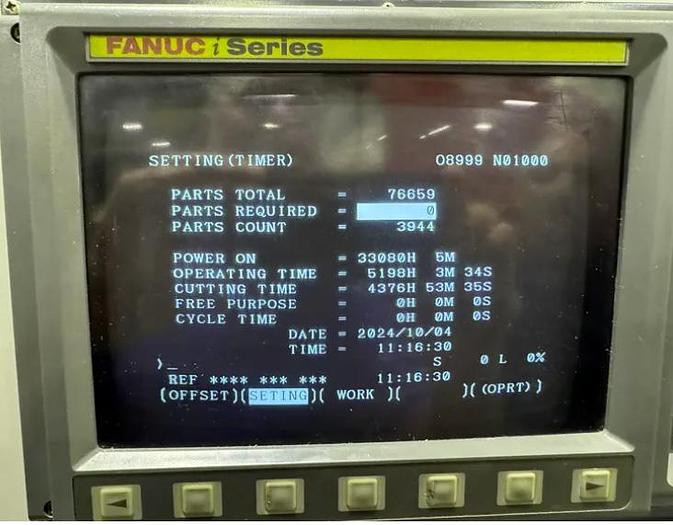

Only 4,376 Cutting Feed Time
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220LC |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119712 |

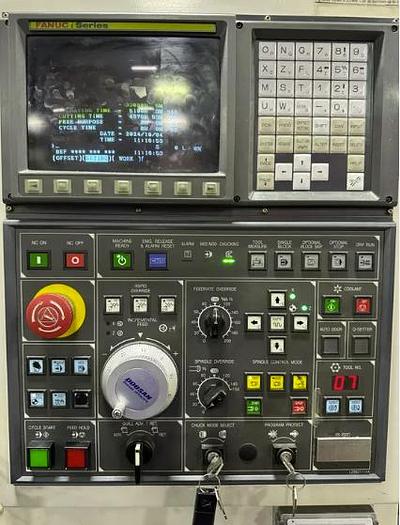

| Machine Control | Fanuc i Series |

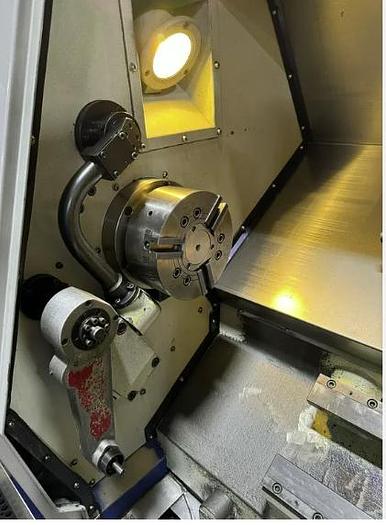

| Chuck size | 8" Hydraulic Chck |
| Maximum turning diameter | 12.6" |
| Maximum turning length | 20.7" |
| X-axis travel | 6.89" |
| Z-axis travel | 21.65" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.99" / 2.6" |
| Spindle speed | 40 - 4,000 RPM |
| Spindle motor | 20 HP |

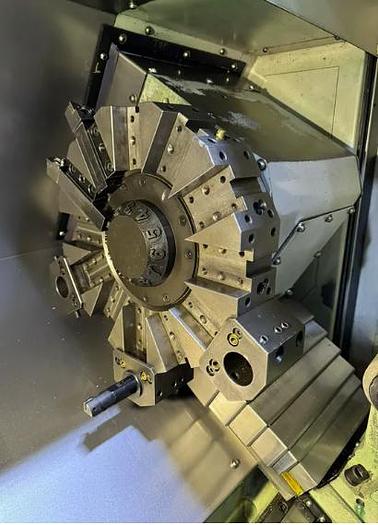

| Turret type | 12 Position Turret |
| Rapid traverse rates x, z | 1181 PM / 1417 IPM |
| Tailstock Quill Diameter / Center | 2.53" / #4 MT |
| Machine Dimensions LxWxH | 90"x72"x65" |
| Machine weight | 7,780 lbs |
