2006 Haas VF-3SS
2006 Haas VF-3SS
Contact us for price
Location:Texas
orCall (863) 439-6066
Description
24+1 Position Side Mounted Tool Changer
300 PSI Coolant thru the Spindle
Visual Quick Code
4th Axis Drive & Wiring
High-Intensity Lighting
Rigid Tapping
WIPS Renishaw Part & Tool Probe
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Remote Jog Handle
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Cut Primarily Aluminum & Plastic, replacement cost as equipped $110k
Specifications
| Manufacturer | Haas |
| Model | VF-3SS |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119713 |

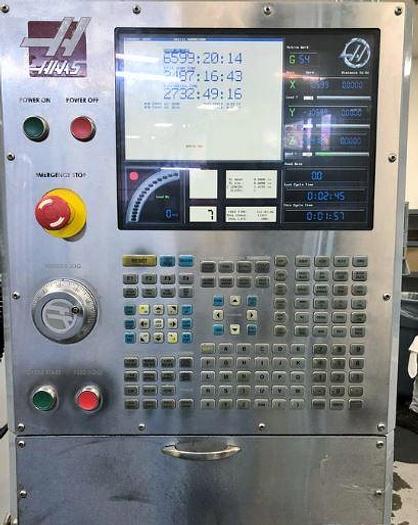

| Machine Control | Haas CNC Control |
| Table size | 48" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 40" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT 40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 122" x 98" x 98.5" |
| Machine weight (approximately) | 12,500 lbs. |
