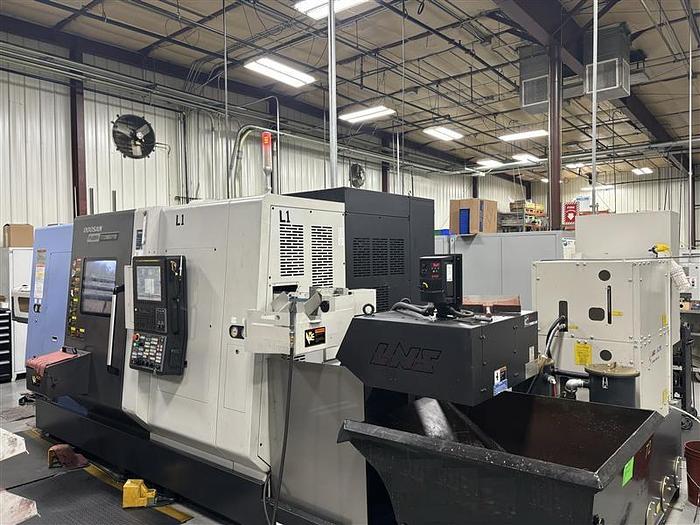

2021 Doosan Puma TT2100SYYB 9 Axis Capable Dual Spindle / Dual Turret - Y Axis on Both Turrets
2021 Doosan Puma TT2100SYYB 9 Axis Capable Dual Spindle / Dual Turret - Y Axis on Both Turrets
Contact us for price
Location:Minnesota
Description
Full C Axis Spindle Rotation on Both Spindles
Live Milling/Drilling Capability Y Axis Capability on Upper Turret & Lower Turret

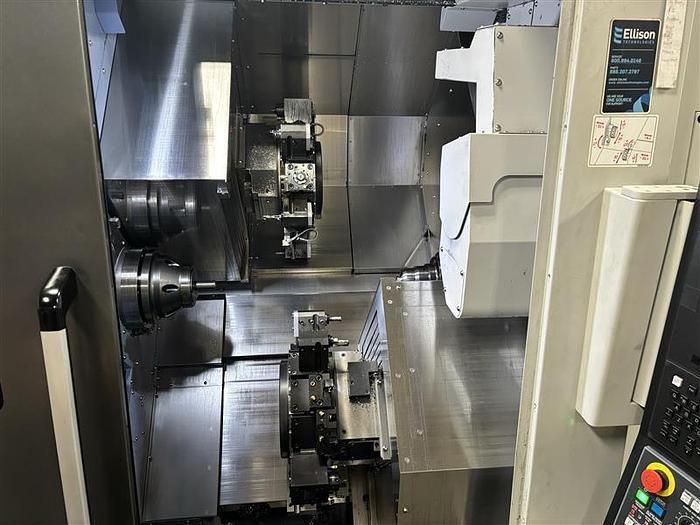

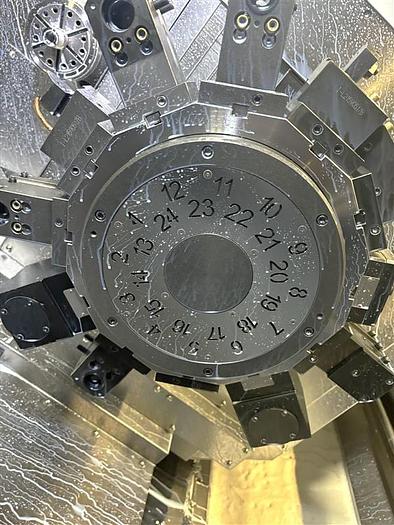

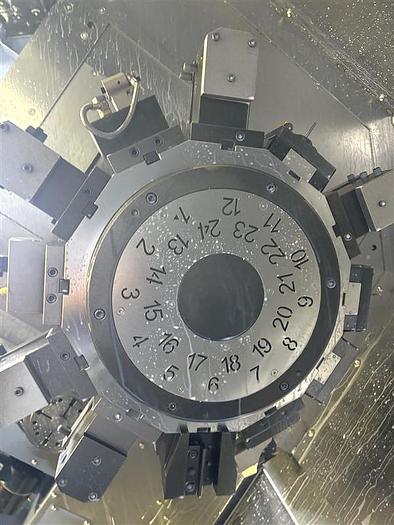

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design
Royal S30 Collet Master Used in Association with Royal QG-80 Compact Collet Chuck
Royal QG-80 Compact Accu-Length Collet Chuck
S26 & S30 Master Collet Installation Tool
Royal QG-65 Quick Change Collet Chuck
Tool Presetter

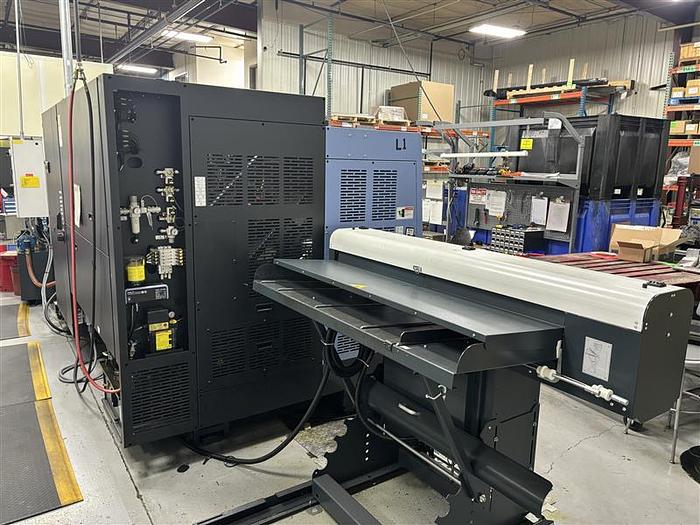

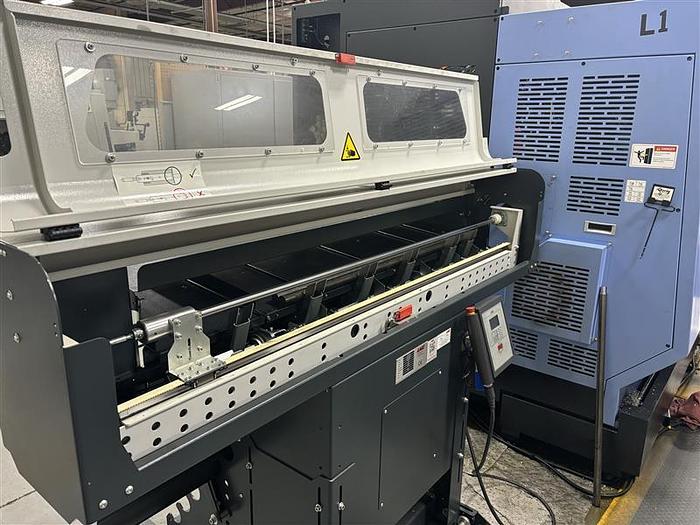

LNS Quick Load Servo 80 S2 Short Load Type Bar Feeder
Chip Conveyor
Parts Catcher
Parts Exit Conveyor

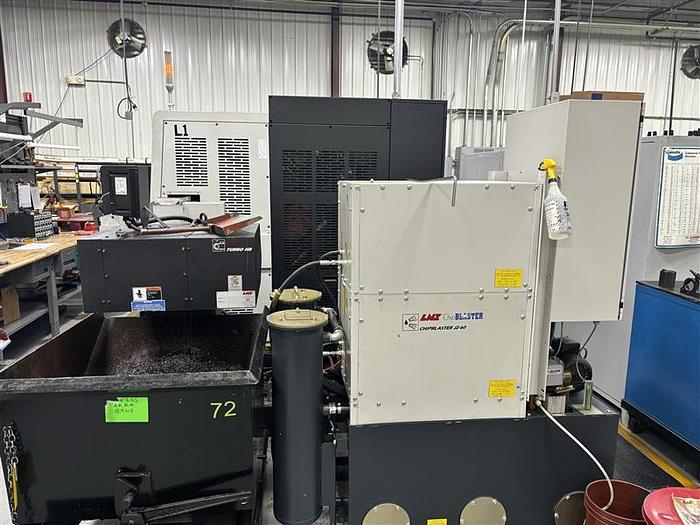

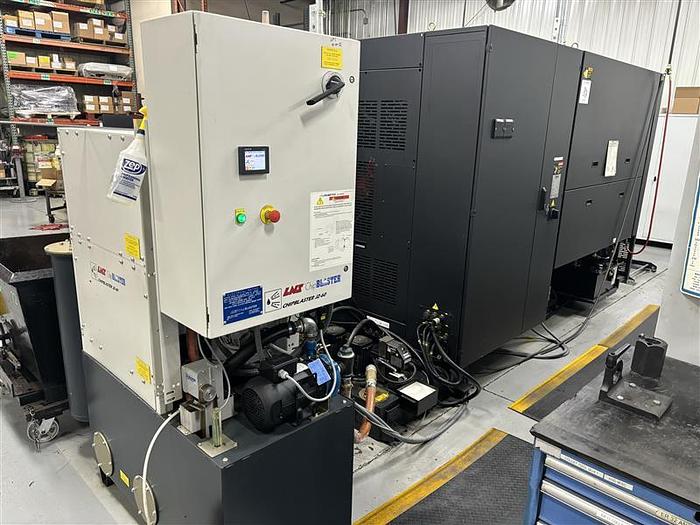

LNS Model CHBL-F2-60 Chip Blaster High Pressure Coolant System- 1000 PSI
PCMCIA Card Interface Ethernet Interface
USB Port Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Manuals
(8) Live Holders Included with (3) Horizontal Type and (5) Vertical Type
(12) Boring Bar Holders
(8) OD Type Holders
(2) Face Groove Holders

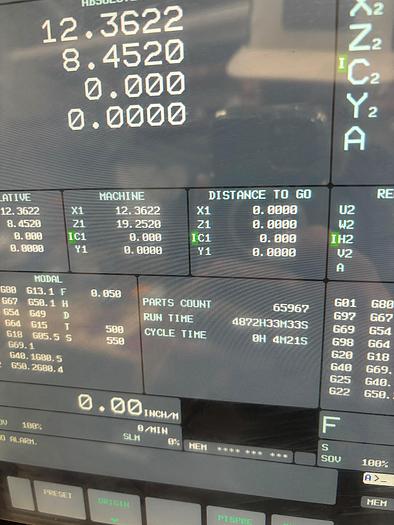

**Main Spindle Hours 4,872**

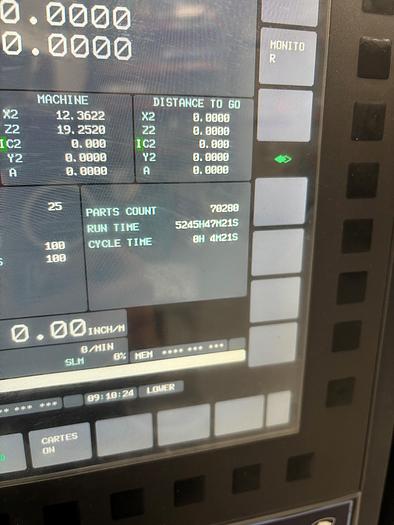

**Sub Spindle Hours 5,245**
Specifications
| Manufacturer | Doosan |
| Model | Puma TT2100SYYB |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119717 |
| Control | Fanuc 0i-Plus CNC Control |
| Chuck Size | 10" 3 Jaw Hyd / 8" 3 Jaw Hyd. |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.06 |
| Maximum Distance Between Centers | 38.5" |
| Maximum Bar Capacity | 3.2" / 3.0" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 6.5" |
| Y-Axis Travel | 3.94" |
| Z1-Axis Travel / Z2-Axis Travel | 28" / 28" |
| C Axis Spindle Rotation | .001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 28.7" |
| Spindle Nose / Spindle Bore | A2-8" - 3.6" Left / A2-6" - 3.6" Right |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Motor | 30 HP |
| Subspindle Speed | 5,000 RPM |
| Subspindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |
| Number of Turret Positions | 12 Station Turret - Each BMT-55 |
| Rapid Traverse Rates X / Y / Z | 1182 IPM / 590 IPM / 1576 IPM |
| Machine Dimensions | 155" x 89" x 93" |
| Machine Weight | 21,164 lbs. |
